➤ Used TRUMPF Trumatic 500 For Sale | gindumac.com

Show in original language

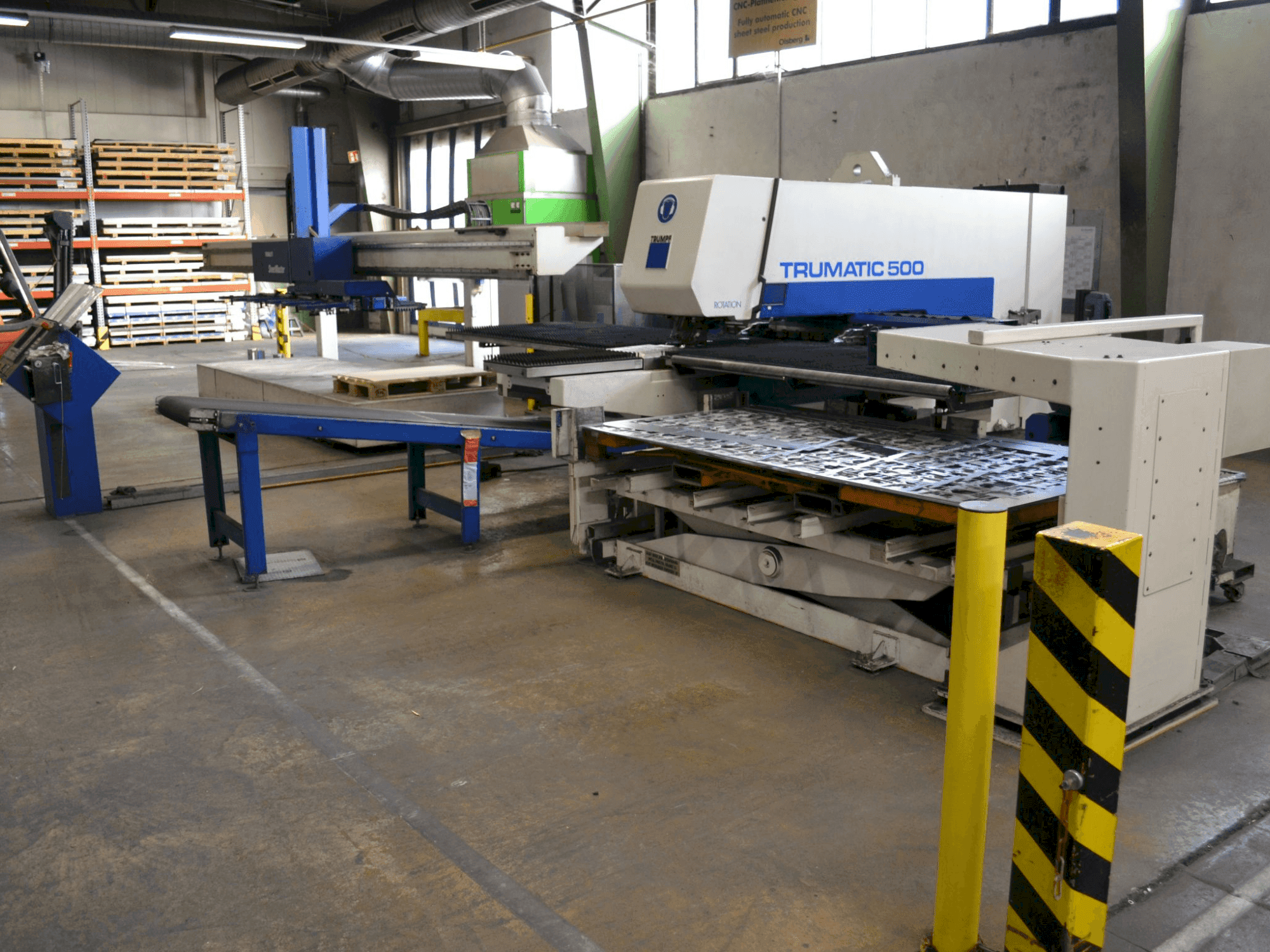

This TRUMPF Trumatic 500 was manufactured in 2000. A robust CNC punch press, it offers reliable performance for your punching needs. Consider the opportunity to buy this TRUMPF Trumatic 500 CNC punch press. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2000
MODEL: Trumatic 500
production hours: 99800
application type: Punching
Location: Germany
machine type: CNC Punch Press

Technical Information - TRUMPF Trumatic 500

General Data

Measurements height: 2200 mm

Control Unit

Model: TRUMPF CNC TRUMAGRAPH CC220S

Main drive

Punching force: 220 kN
Number of axis: 2

Media

Main electronic connection: 17 kVA / 50 Hz

Additional Information

Machine history

Material thickness: 8 mm

Machine Benefits

Technical Machine Benefits:
- - Tool change time: approx. 1. 5 - 5 seconds
- - Number of tool positions: 20 (y1300) 21 (y1600)
- - Number of claws: 2 pieces, 3 or 4 optional
- - Pneumatic connection: 8 nm3/h at 6 bar
- - Max. Punching diameter: 76. 2 mm

Extra information

- Max. Working Area: 2500 x 1300 mm (Y1300) Max. Workpiece Weight: 150 kg (Y1300) Space Requirement: 6900 x 5800 mm (Y1300) Weight of the Machine: Approx. 11050 kg (Y1300) Height of the Machine: 2200 mm Max. Stroke Rate: 900 per minute (Y1300) Cutting Speeds: X-axis: 90 m/min Y-axis: 60 m/min Simultaneous: 108 m/min C-axis: 360/s Accuracies: Position Deviation: +/- 0.1 mm Average Position Spread: +/- 0.03 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
