TRUMPF - TRUMATIC 6000 LHU-PUN-TRU-2002-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- Trumpf Trumatic 6000 L Laser Punch Combination Machine

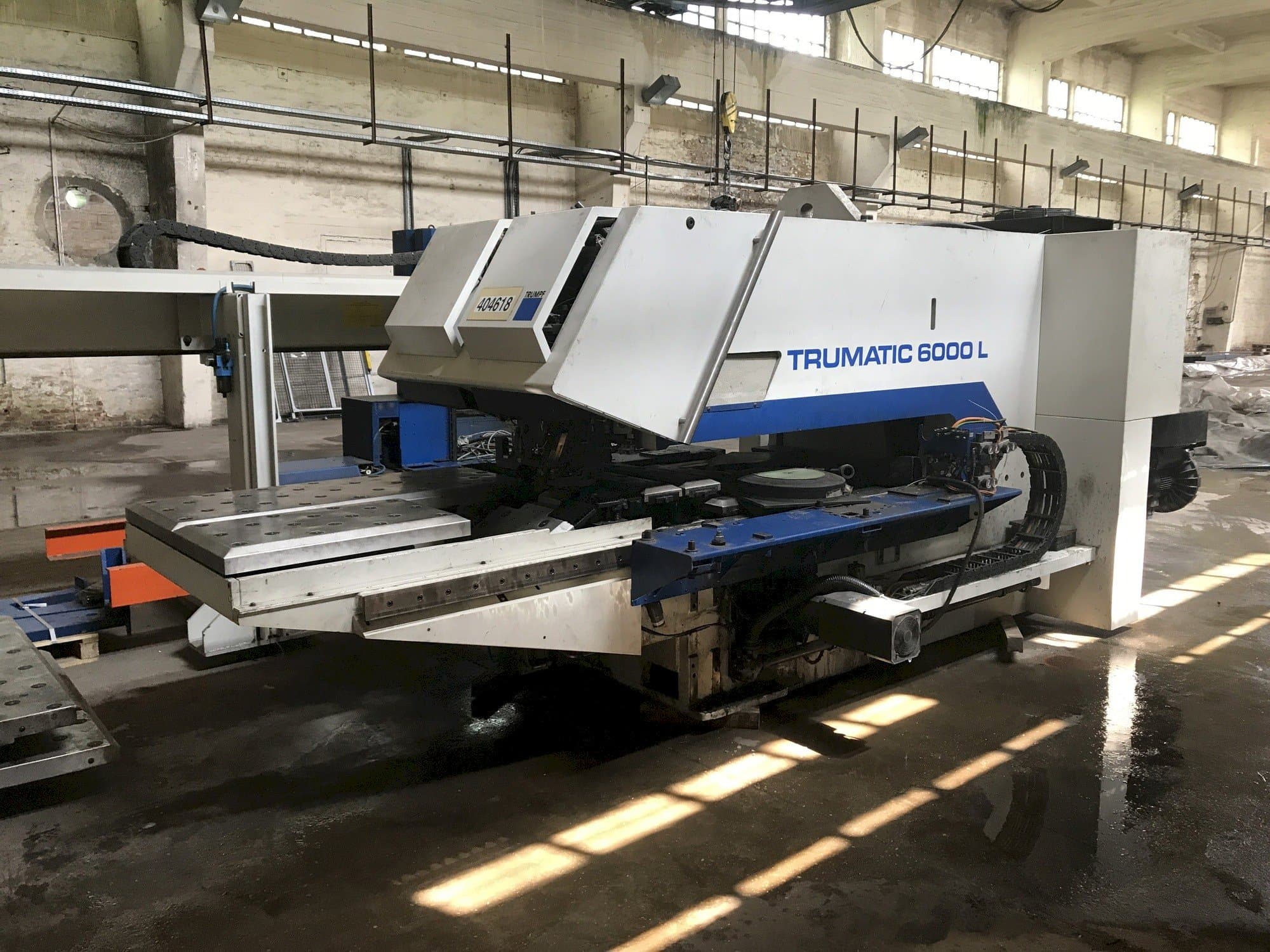

This Trumpf Trumatic 6000 L Laser Punch Combination Machine from 2002 was manufactured in Germany. It has a production time of approximately 58000 working hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This machine works with a laser power of 2,7 kW and a punching force of 220 kN.
Overview
- brand: TRUMPF
- year: 2002
- MODEL: TRUMATIC 6000 L
- production hours: 58000
- application type: Punching
- Location: Hungary
- machine type: Punch-Laser Combination
- control unit brand: SIEMENS
Technical Information - TRUMPF TRUMATIC 6000 L
General Data
- Measurements width: 7500 mm
- Measurements depth: 8100 mm
- Measurements height: 2400 mm
- Machine weight: 16000 kg
Control Unit
- Model: SINUMERIK 840D
- Brand: SIEMENS
Main drive
- Laser type: TLF 2700TM
- Punching force: 220 kN
- Maximum sheet thickness: 8 mm
- Laser brand: TRUMPF
Movement
- X-AXIS Movement: 2585 mm
- Y-AXIS Movement: 1280 mm
Workpiece
- Workpiece weight: 200 kg
Tools
- Number of stations: 19
Media
- Main electronic connection: 400 V
- Power consumption: 73 kVA
Additional Equipment
- - TRUMALIFT SheetMaster
- - TRUMAGRIP
Additional Information
- End product: Furniture parts, rack parts
Machine history
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
