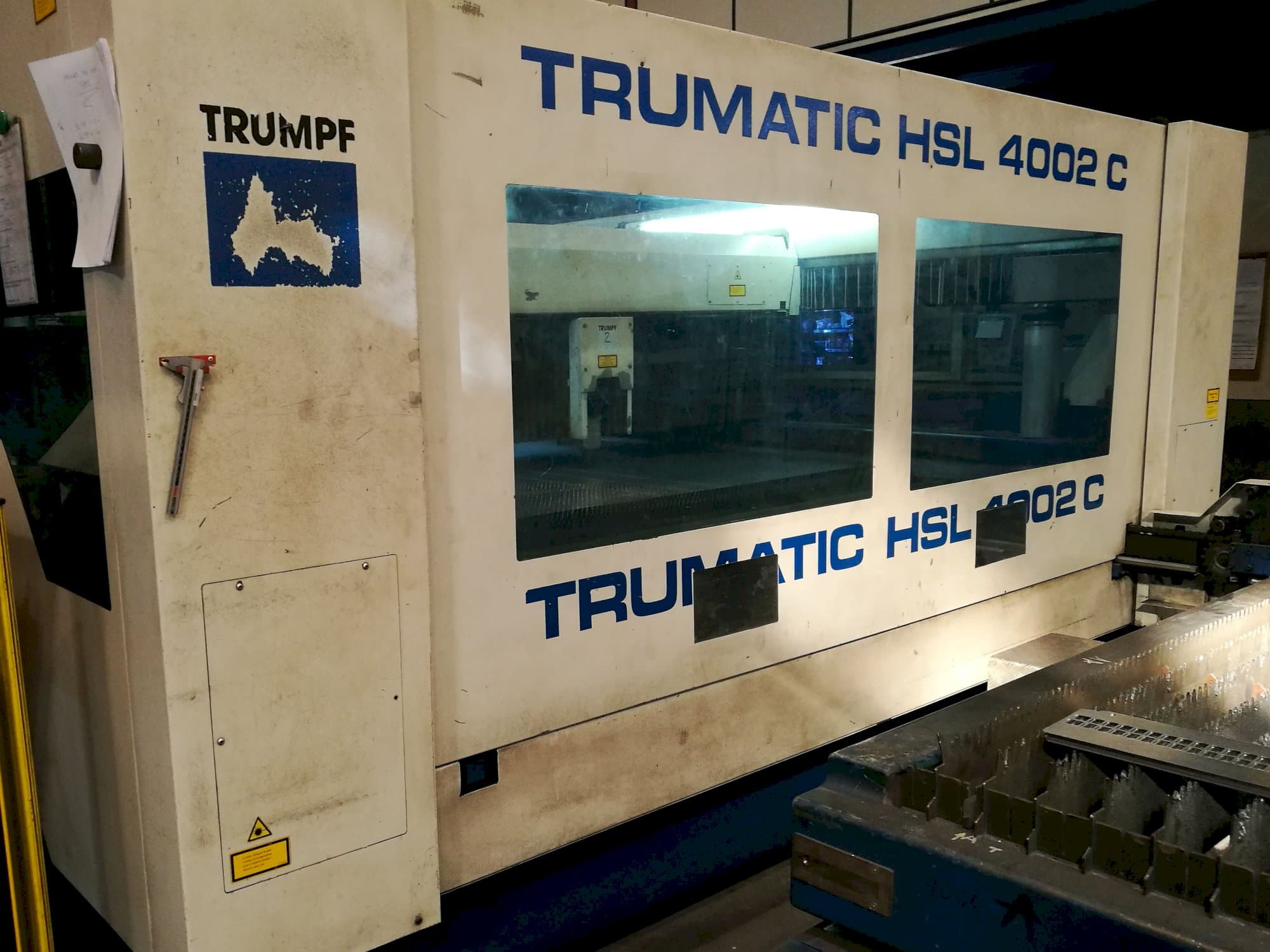

Left view of Trumpf Trumatic HSL 4002 C Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic HSL 4002 C

Photo Gallery

TRUMPF - Trumatic HSL 4002 CES-LAS-TRU-2005-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic HSL 4002 C Laser Cutting Machine

Show in original language

This Trumpf Trumatic HSL 4002 C Laser Cutting Machine from 2005 was manufactured in Germany and has a working history of 45620 production hours which 26047 are laser hours and 16071 beam hours. Equipped with a SIEMENS 840 D Control unit and two cutting heads, this 3600kW Laser Cutter can process sheets with up to 4000x2000 mm of size. This machine features a new control and overall excellent conditions, as it has been given maintenance by Trumpf.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic HSL 4002 C
production hours: 45620
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic HSL 4002 C

General Data

Measurements width: 12300 mm
Measurements depth: 4020 mm
Measurements height: 2370 mm
Machine weight: 14000 kg

Control Unit

Model: 840 D
CNC main language: Spanish
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 3.6 kW
Laser brand: Trumpf TLF 3200

Movement

X-AXIS Movement: 2050 mm
Y-AXIS Movement: 4000 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece x: 2050 mm
Workpiece y: 4000 mm
Workpiece weight: 1600 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 143 kWA

Additional Equipment

- Sheet loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
