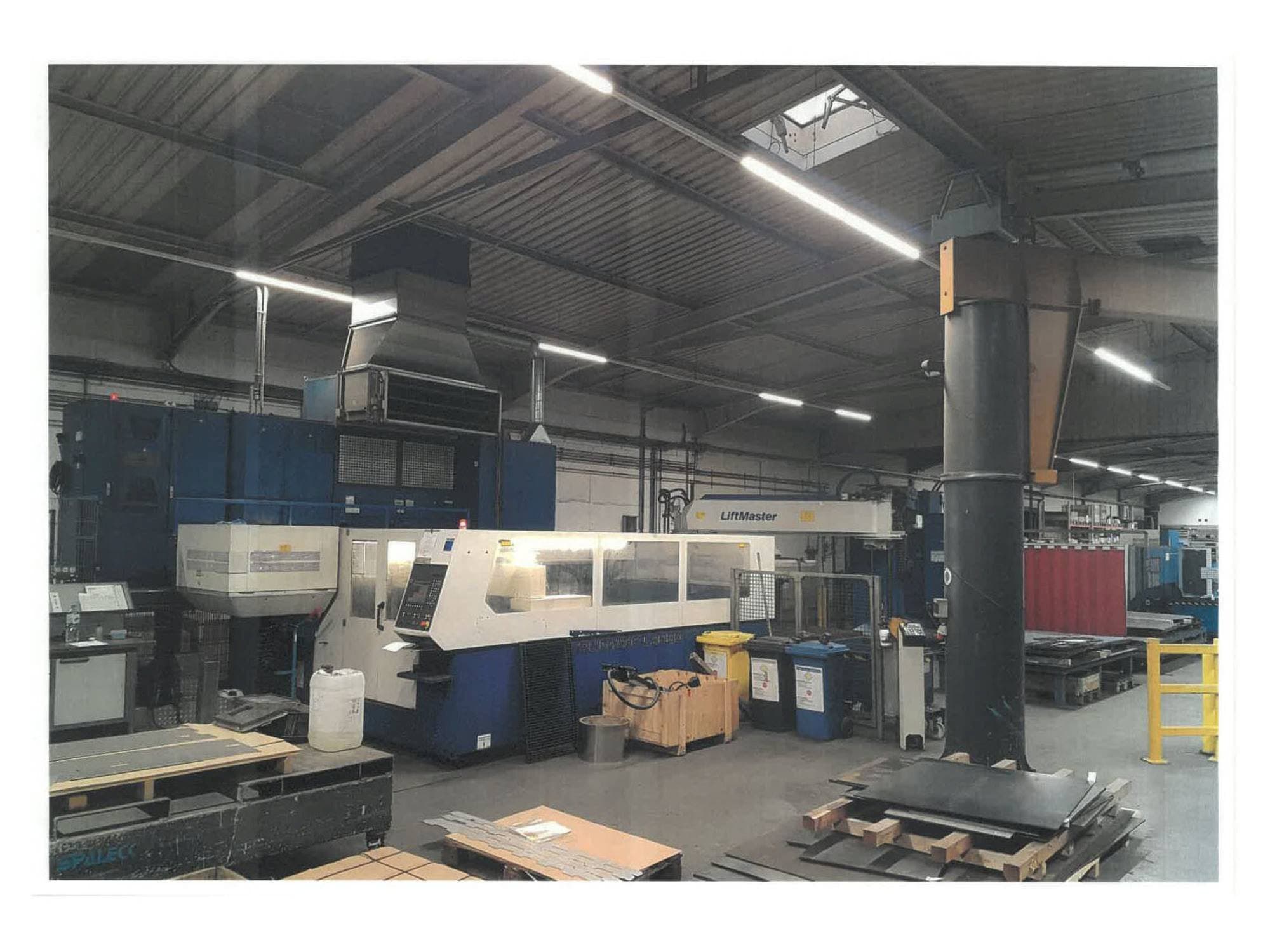

Front view of TRUMPF Laser 30/30 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3030

Photo Gallery

TRUMPF - Trumatic L3030DE-LAS-TRU-2005-00004

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Laser Cutting Machine - Trumpf Trumatic L3030

Show in original language

This TRUMPF Trumatic L3030 Laser Cutting machine was manufactured in the year 2005 and has 92004 production hours, of which 46380 are cutting hours. It is equipped with a Siemens Sinumerik 840 D control unit. The machine has a laser power of 3 kW.

Overview

brand: TRUMPF
year: 2005
MODEL: Trumatic L3030
production hours: 92004
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3030

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Laserpower: 3 kW
Laser type: CO2

Workpiece

Workpiece weight: 900 kg

Table

Outer length: 3000 mm
Outer width: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Speed: 135 m/min, cutting speeds up to 15 m/min
- - Cutting head: universal cutting head
- - Feeding: automatic pallet changer (liftmaster)
- - Incl. Unloading rake and suction frame up to 900 kg
- - Material supply: automatic via sheet storage
- - Cutting capacity: mild steel up to 20 mm
- - Stainless steel up to 12 mm
- - Aluminum up to 8 mm
Qualitative Machine Benefits:
- - Liftmaster included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
