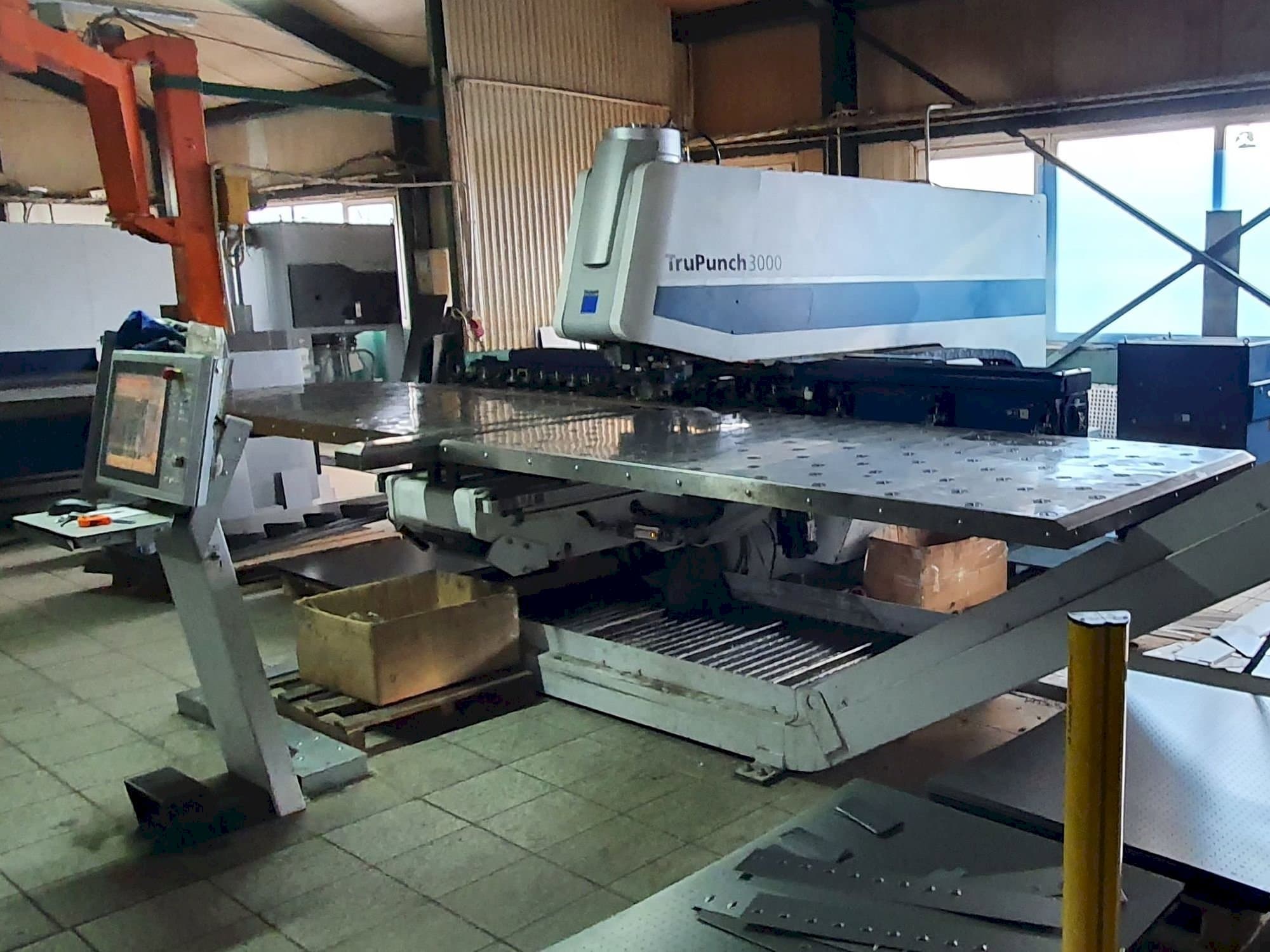

TRUMPF - TruPunch 3000 S11PL-PUN-TRU-2011-00001

Additional Equipment

• - Adaptive calibration of the punch stroke
• - Deburring function and roller technology
• - Surface marking / embossing function
• - MultiBend function
• - Sorting trap for selective removal of ready-made elements and waste
• - 3 psc traps individually opened
• - Sensor in the chute for small parts
• - Container for finished parts (also usable as waste containers)
• - offered with offline software licence: 1 licence Trumpf software
• - Machine with full technical and service documentation

Additional Information

Machine history

• Material thickness: 6. 4 mm

Machine Benefits

• Technical Machine Benefits:
  • - Max material length (without reposition): 2500 mm
  • - Max material width: 1250 mm
  • - Control bosch
  • - X / y / c axis drives - maintenance-free ac servomotors
  • - Punching head drive - electric
  • - Max. X axis speed - 90 m / min
  • - Max. Y axis speed - 60 m / min
  • - Max. Axis speed simultaneously - 108 m / min
  • - Max. C axis speed (punching) - 330 rpm
  • - Max. Frequent stroke during marking - 2500 rpm
• Qualitative Machine Benefits:
  • - Accuracy - positioning deviation pa : 0. 1 mm, ps: 0. 03 mm
  • - Servo-electric punching head
  • - Programmable positioning of the clamp
  • - Footswitch for closing the clamps
  • - Reposition with programmable clamp
  • - Drive with maintenance-free ac servomotors
  • - Programmable positioning of the clamp
  • - Lubrication of the punch
  • - Table type: with balls
  • - Multitool function

Extra information

• - Used mainly for mild still max. thickness 2 mm. Serviced by Trumpf Poland. Still at the production and ready for tests. The machine is offered without any tools and the scrap conveyer
