Tsugami B0205E-III

Show in original language

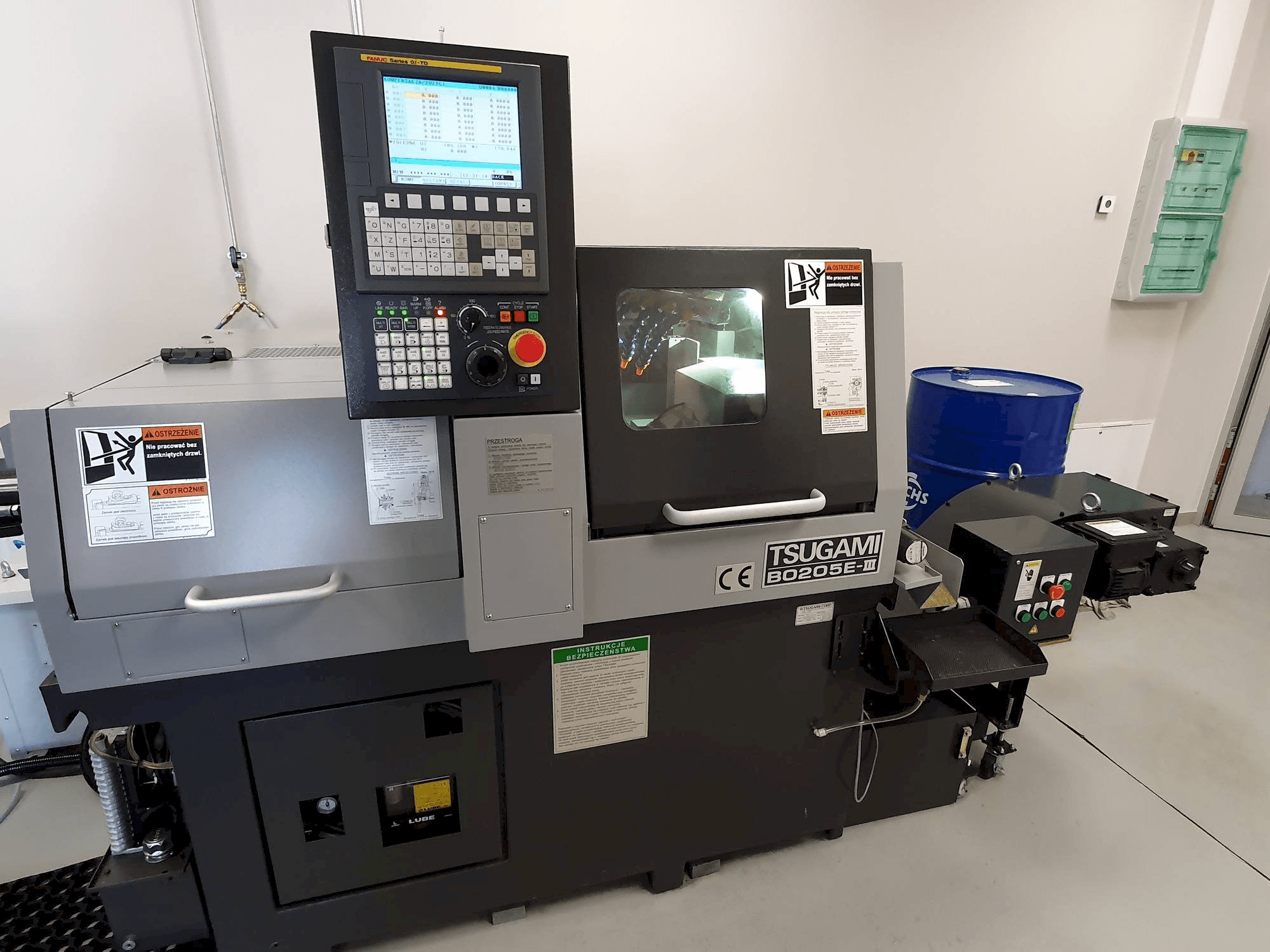

This Tsugami B0205E-III lathe machine was built in 2016 in Japan. This 5 axis machine is operated through a FANUC Oi-TD control unit. It has a record of only 289 hours of which 177 are cutting hours. This machine works with a spindle speed range 200 - 10.000 rpm. It is like new, in a perfect condition and ready for tests. This machine includes several options

Overview

brand: TSUGAMI
year: 2016
MODEL: B0205E-III
production hours: 289
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - TSUGAMI B0205E-III

General Data

Measurements width: 1655 mm
Measurements depth: 1135 mm
Measurements height: 1700 mm
Machine weight: 2000 kg

Control Unit

Model: Series oi-TD
Brand: FANUC

Main drive

Spindle speed range: 200 - 10000 1/MIN
Number of axis: 5

Turret

Number of tool slots: 21 pcs

Media

Main electronic connection: 220 V x 3 phases / 50 - 60 Hz
Power consumption: 12 kVA

Additional Equipment

- Automatic chip collection
- Bar feeder 3 meters with interface
- Automatic receiving of parts
- Workpiece ejector
- Illumination lamp
- High pressure pump
- Guide Bush
- 2 fixed stations for the counter spindle
- Option of entering the part through the counter spindle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis on the main spindle - c axis on counter spindle
- - Max speed for back spindle: 200-12. 000 rpm / max speed for tools: 200 - 5000 rpm
- - Rapid traverse rate: 32m/min (x1: 24m/min)
- - Max length for the workpiece: 170 mm
- - Front and back overlapped machining is possible with the back spindle and the back tool post
- - Pursuing operability, improving machining accuracy and reducing cycle time thanks to the newly developed software
- - Realizing complex workpiece machining by the cross drill and the main spindle
- - C-axis control
- - Guide-bush type or guide-bushless type is selectable according to workpiece
- - Automatic programming system prepared as standard
Qualitative Machine Benefits:
- - The machine is in a perfect condition, like a new.
- - Full documentation in english and polish
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
