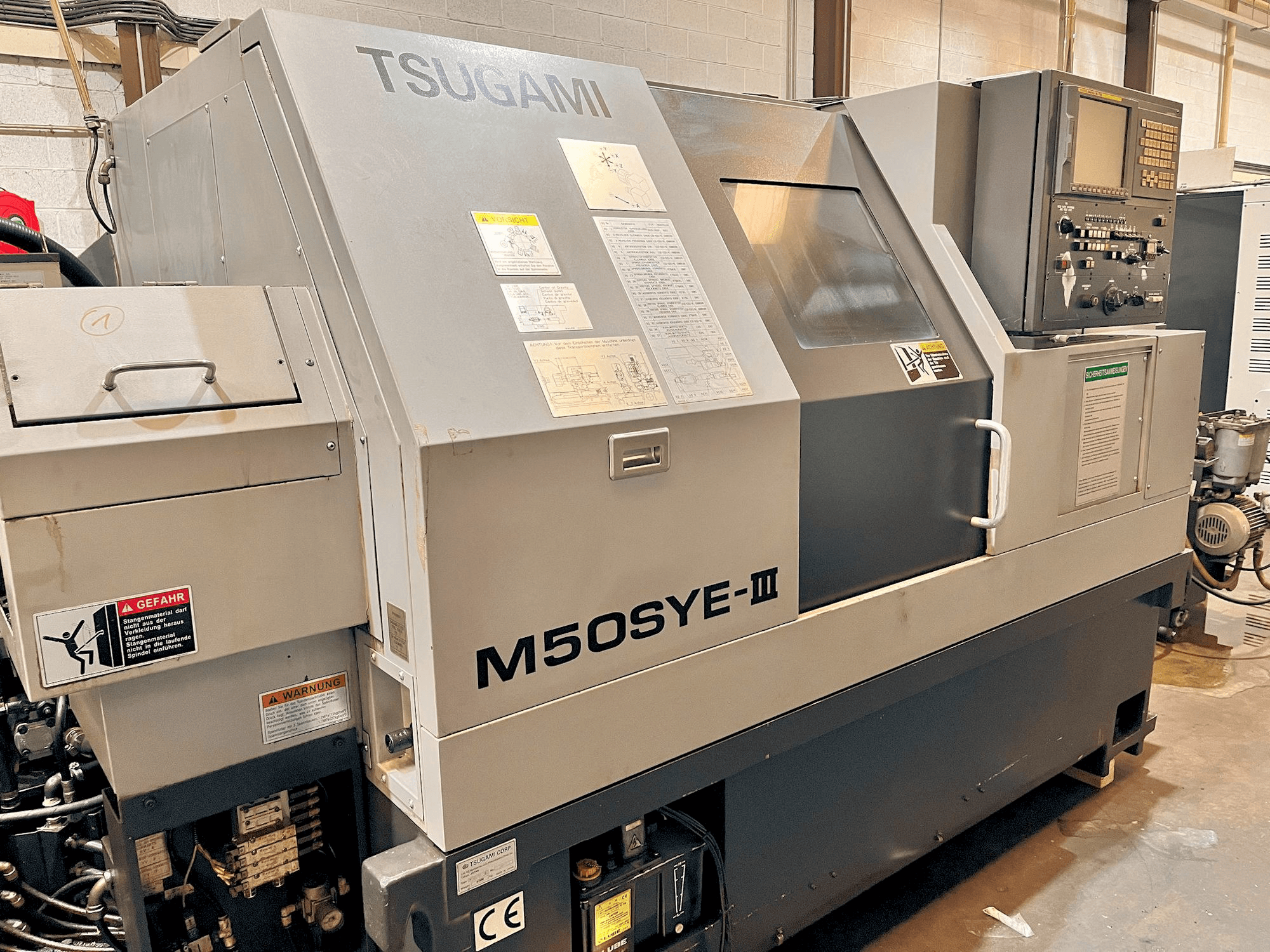

This TSUGAMI M50SYE-III lathe machine was manufactured in 2007 in Japan. It is operated through a FANUC Series 18i-TB control unit. This 6 axis can work with a spindle speed up to 6000 rpm.
Overview
- brand: TSUGAMI
- year: 2007
- MODEL: M50SYE-III
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - TSUGAMI M50SYE-III
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Dimensions
- Machine Depth: 1560 mm
- Machine Height: 1720 mm
- Machine Weight: 6500 kg
Movement
- Number of Axes: 6
- X-axis Travel: 170 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 400 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Maximum cutting diameter: 150 mm
- Maximum cutting length: 320 mm
- Bar capacity: 51 mm
- 6 controlled axes (x, z, y, c1, c2, b)
- C axis: 0. 001 degree (both spindles)
- Sub spindle motor speed: 11/7. 5kw, 6000 rpm
- Sub spindle stroke: 520 mm
- Tooling, swarf conveyor, parts conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
