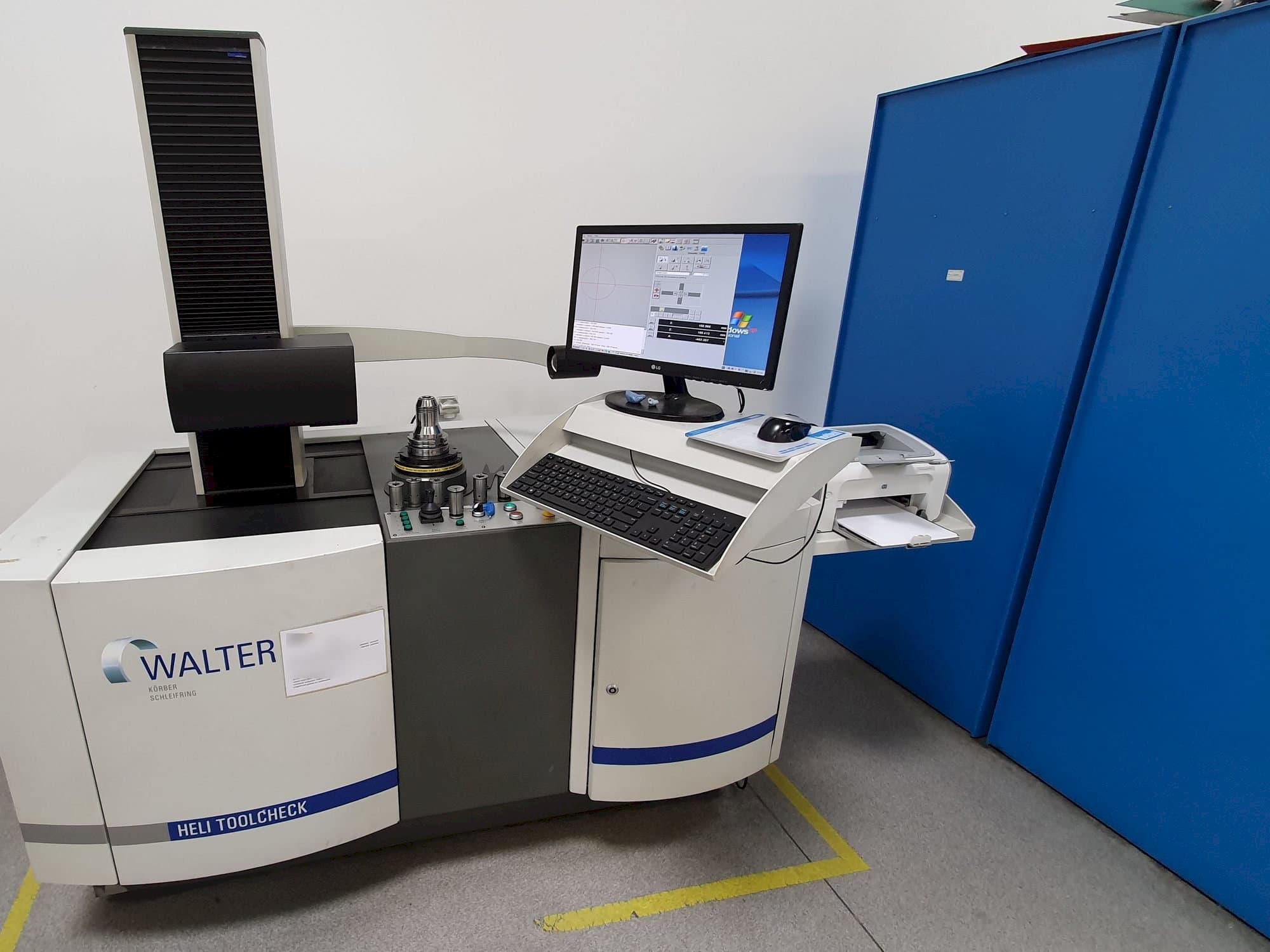

Walter Heli Toolcheck 3C Measuring and presetting machine

Show in original language

This Walter Heli Toolcheck 3C Measuring and presetting machine was made in Germany in 2004. It operates with an A-axis speed of 60 rpm, a repeating accuracy diameter and length measuring of +/- 0,002 mm and a resolution for all linear axis 0,002 mm. The machine is in very good working condition. Ready for tests.

Overview

brand: WALTER
year: 2004
MODEL: Heli Toolcheck 3C
application type: Measuring
Location: Poland
machine type: Optical Measurement Machine
availability: Sold

Technical Information - WALTER Heli Toolcheck 3C

General Data

Measurements width: 1765 mm
Measurements depth: 1400 mm
Measurements height: 1957 mm
Machine weight: 1500 KG

Movement

X-AXIS Movement: 310 mm
Y-AXIS Movement: 290 mm
Z-AXIS Movement: 640 mm

Workpiece

Workpiece weight: 25 KG

Media

Main electronic connection: 230V / 60Hz
Power consumption: 2 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A axis speed: 60 rpm
- - Workpiece dia. : 300 mm
- - Max. Workpiece length: 500 mm
- - Repeating accuracy dia. Measuring: + /- 0. 002 mm
- - Repeating accuracy length measuring: + /- 0. 002 mm
- - Resolution for all linear axis: 0. 002 mm
- - Resolution for rotational a axis: 0. 0025 deg
Qualitative Machine Benefits:
- - The machine in very good working condition
- - It is still at the production
- - Ready for tests
- - Full documentation available
- - Pc and software included
- - Some accessories included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
