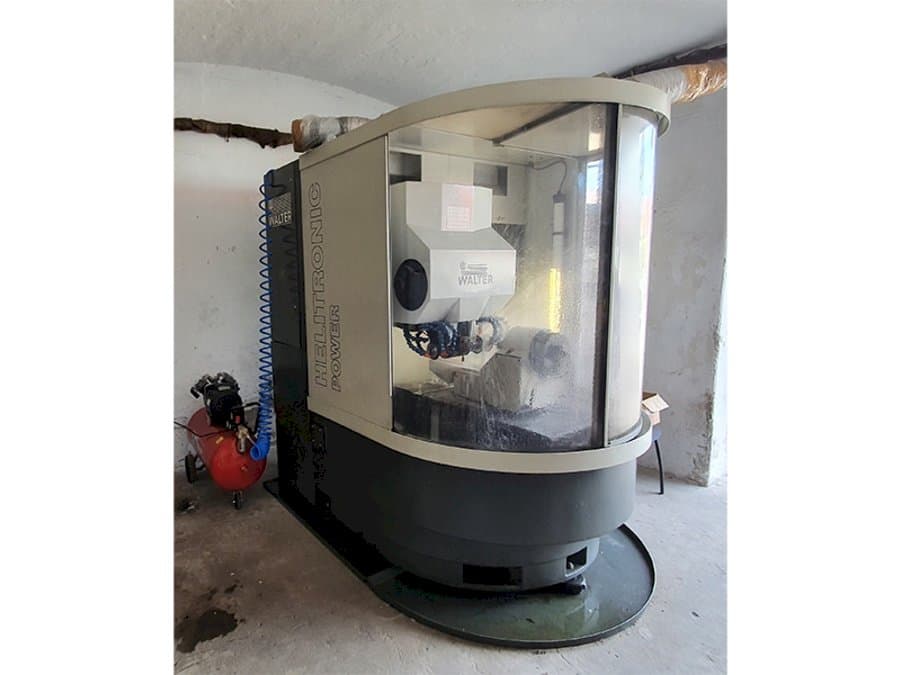

Front view of Walter Helitronic Power machine
Front view of Walter Helitronic Power machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

WALTER - Helitronic PowerPL-GRI-WAL-1996-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Walter Helitronic Power Grinding Machine was manufactured in Germany in 1996. It has been working for 41423 hours. This 5 axis machine is operated through a WALTER HMC 400 WWM control unit. It can work with a spindle speed up to 10500 rpm. Machine in good working condition, ready for tests. Full documentation available.

Overview

  • brand: WALTER
  • year: 1996
  • MODEL: Helitronic Power
  • production hours: 41423
  • application type: Grinding
  • Location: Poland
  • machine type: Grinding Machine
  • availability: Sold

Technical Information - WALTER Helitronic Power

General Data

  • Measurements width: 2010 mm
  • Measurements depth: 1420 mm
  • Measurements height: 2150 mm
  • Machine weight: 3100 KG

    Main drive

    • Spindle speed range: 10500 1/MIN
    • Number of axis: 5

    Movement

    • X-AXIS Movement: 400 mm
    • Y-AXIS Movement: 250 mm
    • Z-AXIS Movement: 580 mm

    Media

    • Main electronic connection: 400V / 50Hz
    • Power consumption: 15 kVA

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X / y / z - axes resolution: 0. 0001 mm
        • - X / y / z - axes speed: 15 m/min
        • - A - axis rotation of workpieces: 360 degrees/endless
        • - A - axis resolution: 0. 0001 deg.
        • - A - axis rotation speed: 120 rpm
        • - A - axis max workpiece dim. : 190 mm
        • - C - axis max length of rotary table: 300 mm
        • - C - axis swivel range +/- 200 deg.
        • - C - axis resolution: 0. 0001 deg.
        • - C - axis speed: 120 deg/sec.
      • Qualitative Machine Benefits:
        • - Center height: 130 / 165 mm
        • - Grinding spindle dia. : 70 mm
        • - Max grinding wheel dia. : 200 mm
        • - Workpiece holder iso 50
        • - Spindle motor power 4. 4 kw/ 3000 rpm, 4. 2 kw/ 6000 rpm
        • - Control unit with 14” screen
        • - Machine in good working condition, ready for tests
        • - Full documentation available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
