WFL M70

Photo Gallery

WFL - M70AT-TUR-WFL-1993-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

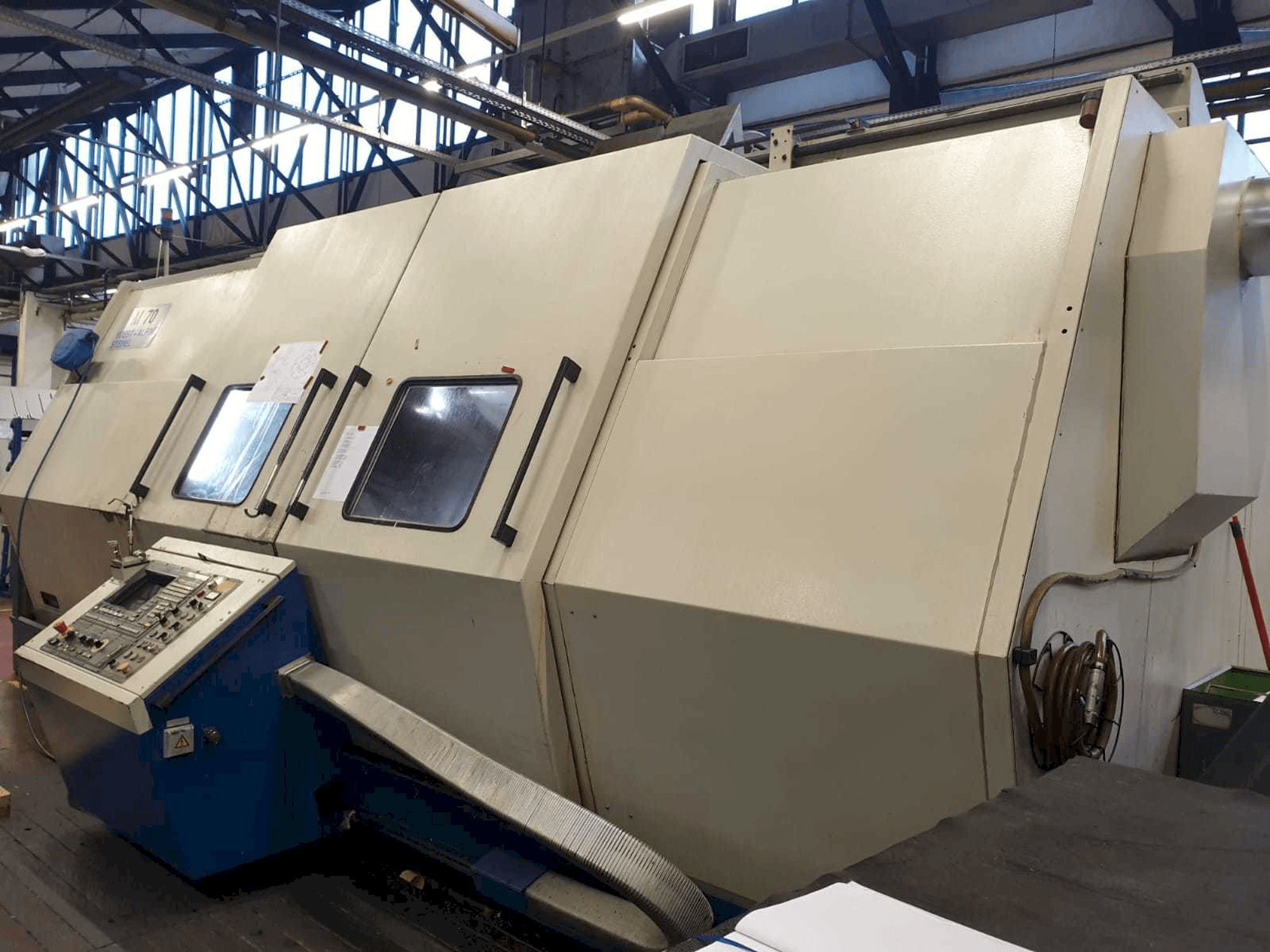

This WFL M70 Lathe was built in 1993 in Austria. This machine stands out for being both a turning and a milling machine. It can perform with a spindle speed up to 3000 rpm.

Overview

brand: WFL
year: 1993
MODEL: M70
application type: Turning
Location: Austria
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - WFL M70

Control Unit

Model: 880
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 660 mm
Y-AXIS Movement: 300 mm
B-AXIS Movement: 0.01-90 degrees MM

Tools

Number of stations: 24
Max tool diameter: 125 mm
Max tool length: 300 mm
Type of tool holder: BT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 750 mm
- - Center distance: 2000 mm
- - Max power turning spindle: 60 kw
- - Max torque turning spindle: 2300 nm
- - Tool system turret vdi40
- - Max torque milling spindle: 200 nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
