WFL - Millturn M 35-GCZ-TUR-WFL-2006-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used WFL Millturn M 35-G - Lathe For Sale | gindumac.com

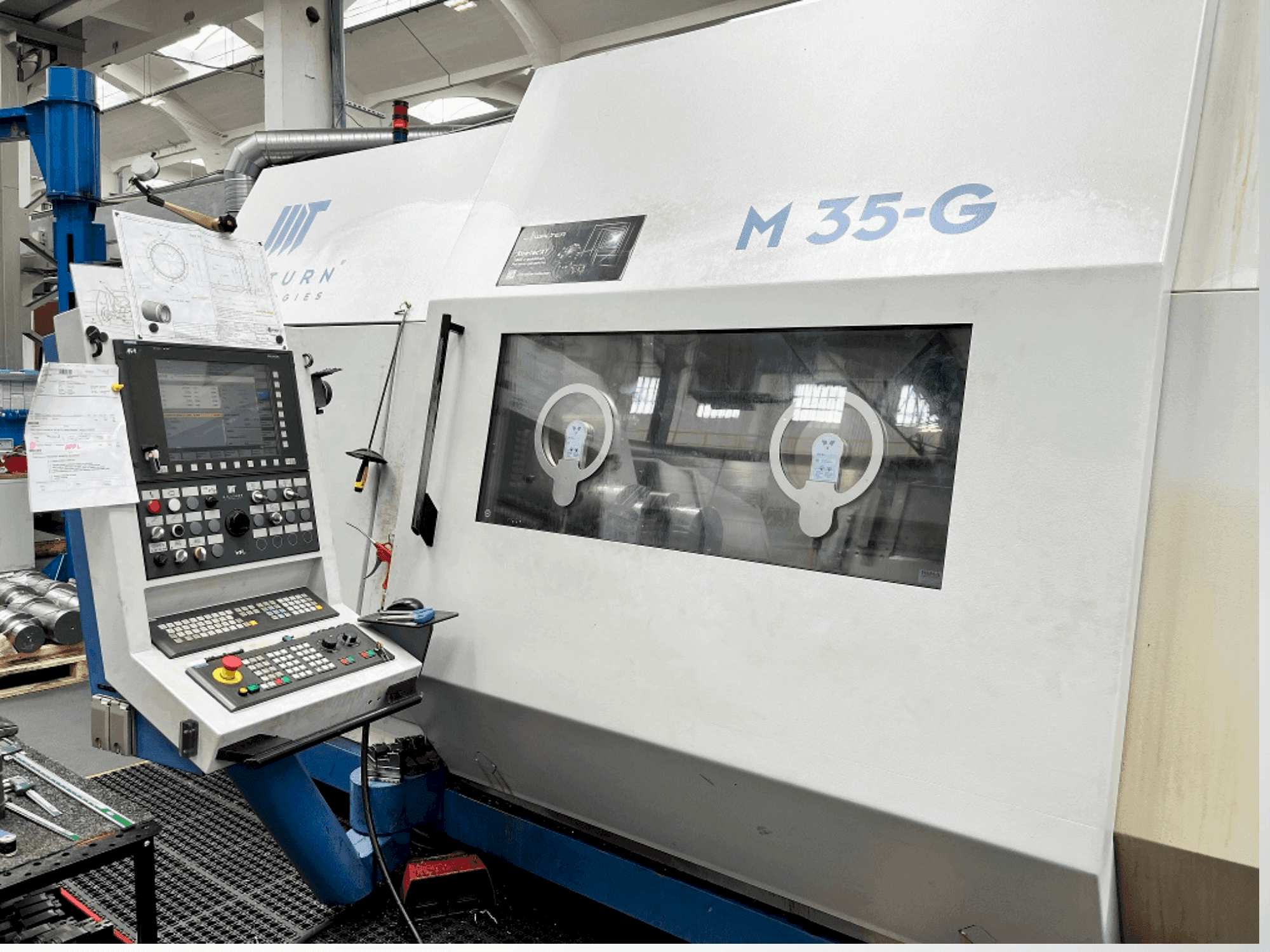

This 6-axis WFL Millturn M 35-G lathe was manufactured in 2006. It features a SIEMENS SINUMERIK 840D pl control system, a maximum turning diameter of 520mm, and a center distance of 1800mm. The B axis offers a swivel range of +/- 110 degrees at speeds up to 9000 rpm. It includes a tool magazine with 80 positions and dual spindles with C axis functionality. A great opportunity to buy this WFL Millturn M 35-G lathe. Contact us for more information.
Overview
- brand: WFL
- year: 2006
- MODEL: Millturn M 35-G
- application type: Turning
- Location: Czech Republic
- machine type: Turn-Mill Centre
- control unit brand: SIEMENS
Technical Information - WFL Millturn M 35-G
Control Unit
- Model: SINUMERIK 840D
- Brand: SIEMENS
Main drive
- Number of spindles: 2
- Spindle speed range: 9000 1/MIN
- Spindle motor power: 15 kW
Movement
- X-AXIS Movement: 600 MM
- Z-AXIS Movement: 1500 MM
- B-AXIS Movement: +/- 110 deg. MM
- C-AXIS Movement: 0.0001 deg. MM
Additional Equipment
- - Tool magazine: 80 positions
Additional Information
- Technical Machine Benefits:
- - Max. Turning diameter: 520 mm
- - Center distance: 1800 mm
- - B axis (turning-boring-milling unit) swivel range +/- 110 deg. High spindle speed of 9000 rpm
- - Hours data: total on 83829 / spindle 11281
- Qualitative Machine Benefits:
- - High precision with c axis resolution of 0. 0001 deg.
- - 2 spindles with C axis
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
