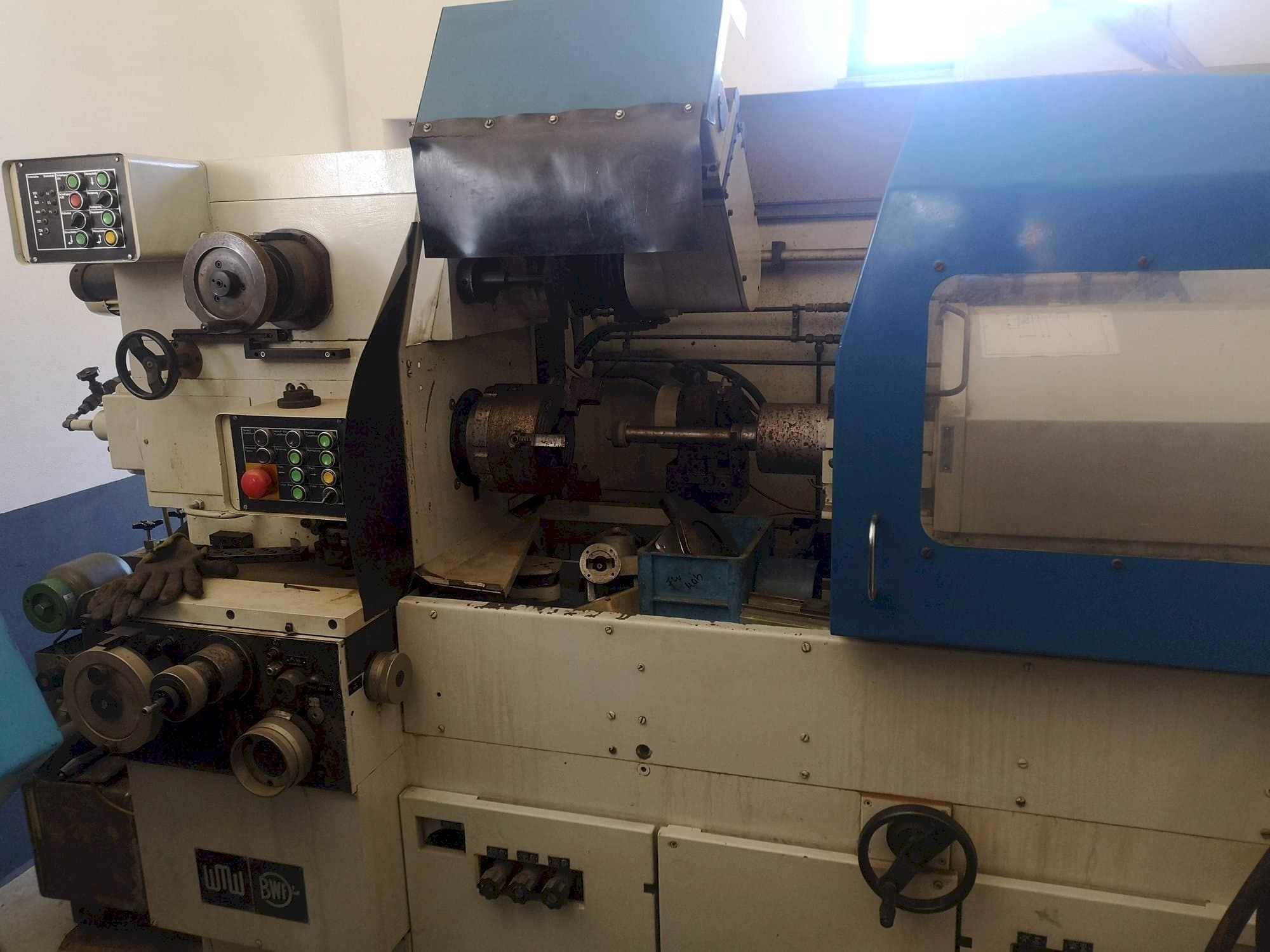

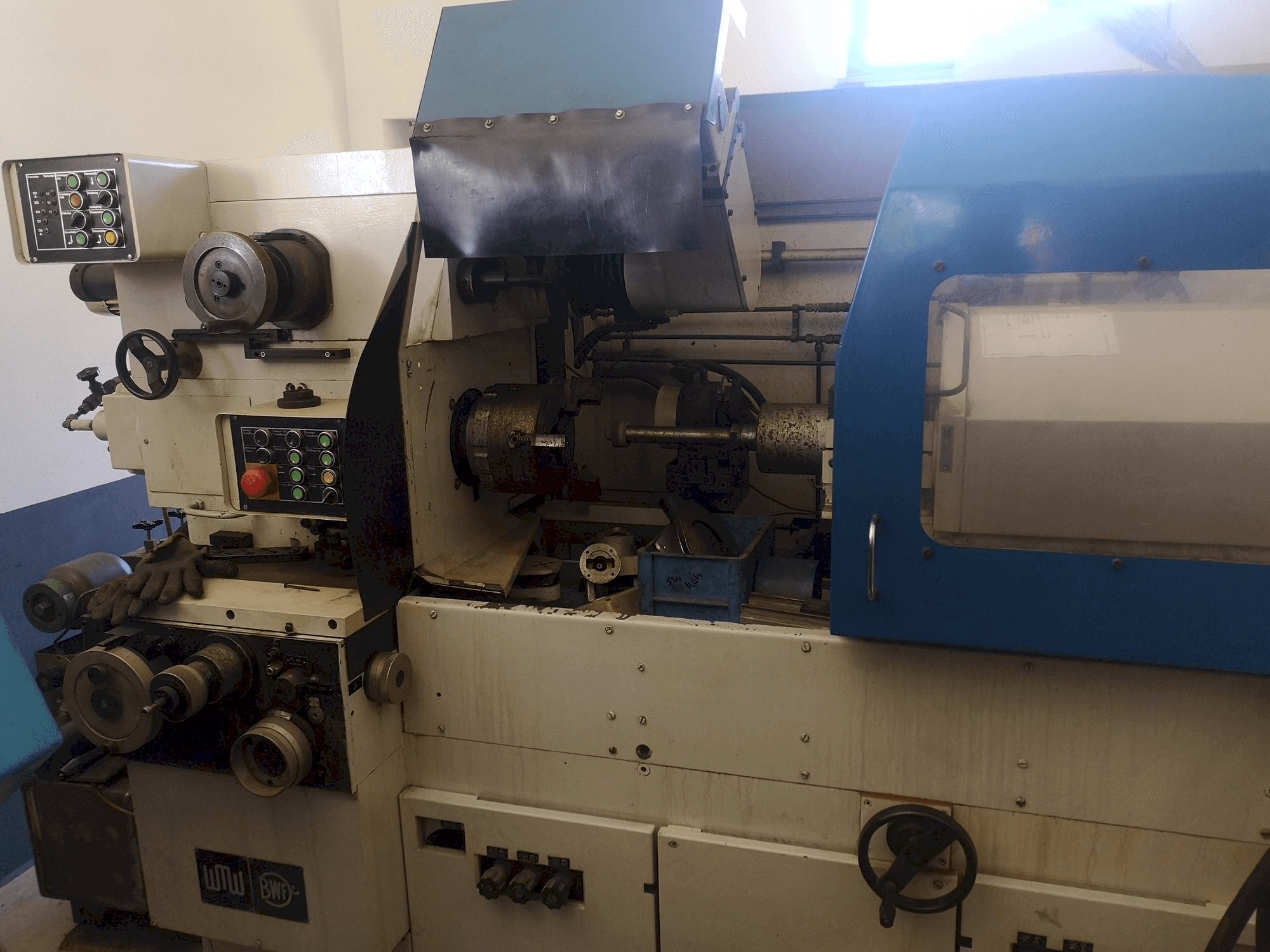

This WMW SI4 Grinding machine was manufactured in the year 1988 in Germany. The machine has a spindle speed of 11500-29000 rpm.
Overview
- brand: WMW
- year: 1988
- MODEL: SI4
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
Technical Information - WMW SI4
Dimensions
- Machine Depth: 1400 mm
- Machine Height: 2000 mm
- Machine Weight: 5300 kg
Technical Specification
- Spindle Speed: 500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Double strokes/min: 200 min
- Carriage adjustment travel: 168 mm
- Infeed speed: 0. 02-16 mm/min
- Total power requirement: approx. 14. 0 kw
- Workpiece spindle swivels 30°
- Displacement 170mm, speed 40 - 1000 rpm
- Circulation Ø with guard = 315mm without guard = 450 mm
- Workpiece clamping permanent magnet Ø 200 mm
- Dressing device operation via control panel
Technical Machine Benefits
- Rotation diameter: 315 / 450 mm
- Grinding depth: 200 mm
- Taper grinding up to: 60 degrees
- Grinding diameter - inside: min. /max. 5 / 200 mm
- Table stroke: 5 -560 mm
- Rapid traverse z-axis: table 12 m/min
- Infeed path: table up to 0. 8 stepless mm
- Grinding wheel dimensions: Ø 80 x width 80 mm
- Oscillating stroke of the table: 5 - 185 mm
- Oscillating speed: 0. 5 - 6 m/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
