Yang ML 25A

Photo Gallery

Yang - ML 25AIT-TUR-YAN-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

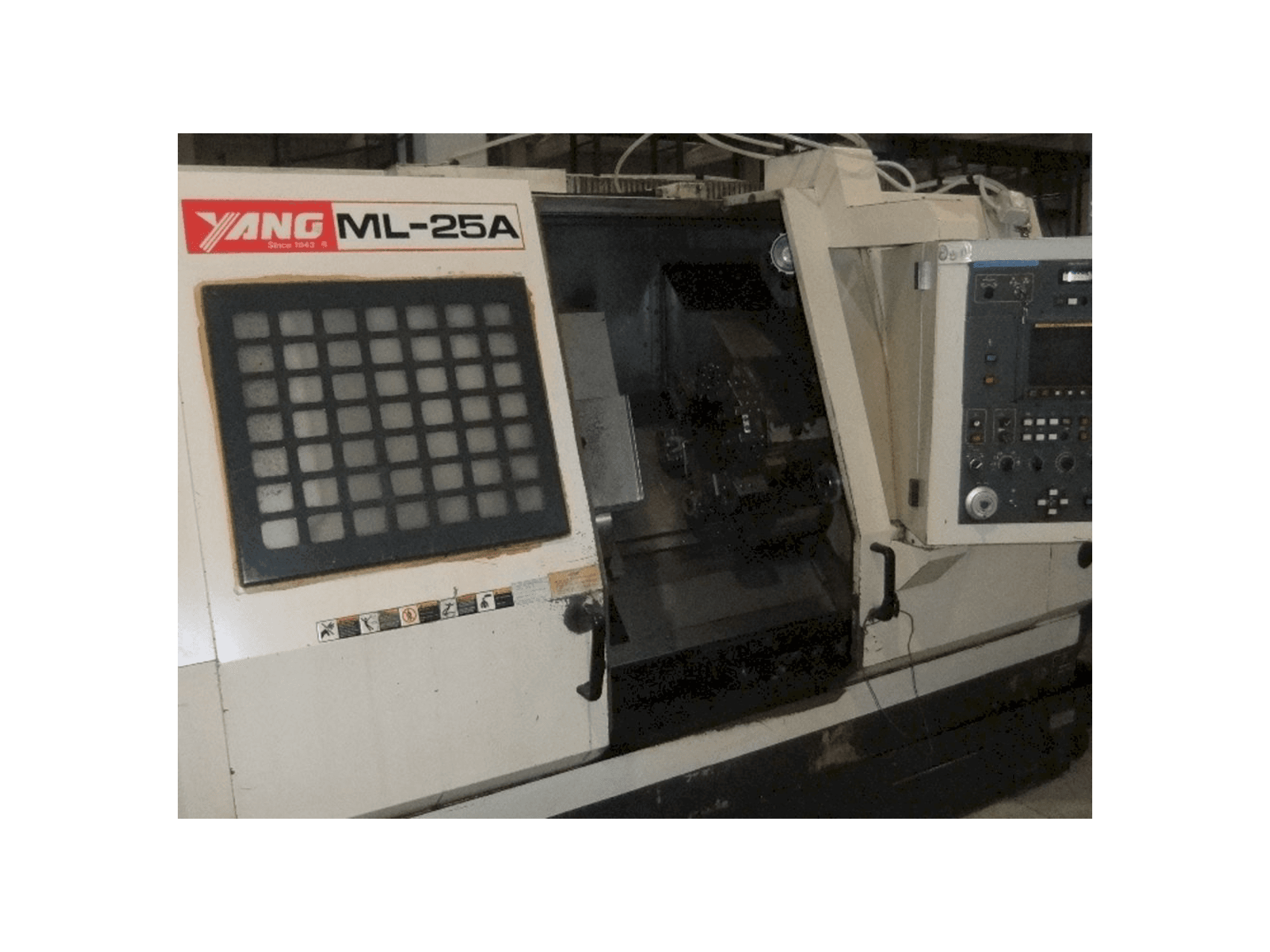

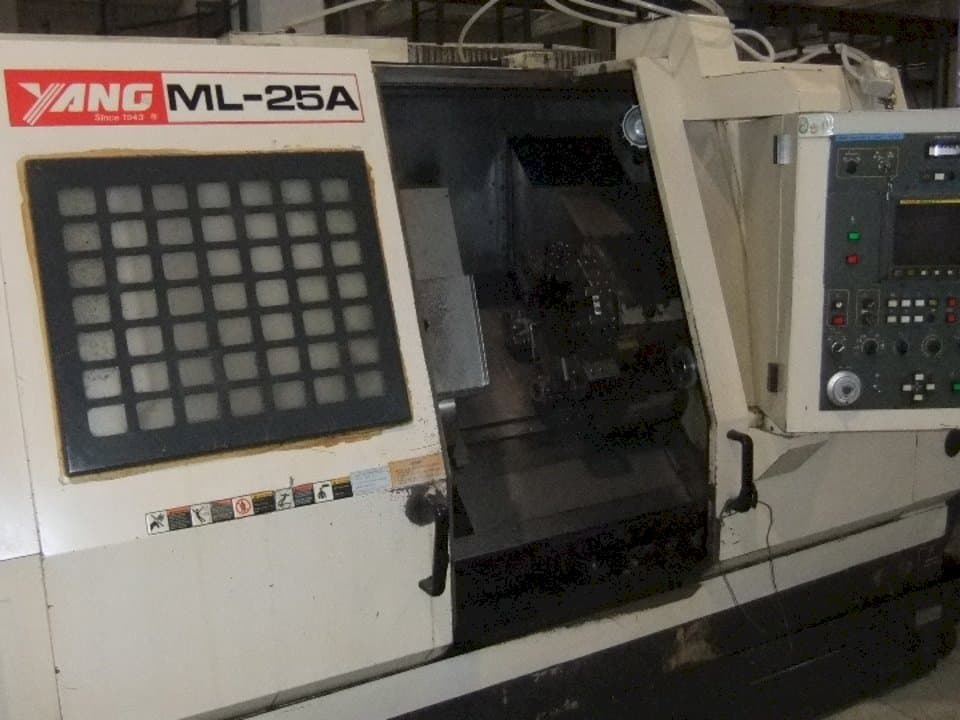

Yang ML 25A Lathe

Show in original language

This Yang ML 25A Lathe was built in the year 1996. It is equipped with a FANUC OT control unit. This 2 axis machine operates with a spindle speed range between 45 - 4500 rpm. Includes self-centering automatic and auto turret with 6 positions.

Overview

brand: Yang
year: 1996
MODEL: ML 25A
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Yang ML 25A

General Data

Measurements width: 4000 mm
Measurements depth: 2000 mm
Measurements height: 2200 mm
Machine weight: 5000 KG

Control Unit

Model: OT
Brand: FANUC

Main drive

Spindle speed range: 45 - 4500 1/MIN
Spindle motor power: 11 kW
Spindle bore: 77 mm
Number of axis: 2

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Center height: 295 mm
- - Distance between centers: 600 mm
- - Turnable diameter on the carriage: 350 mm
- - Bench inclination deg. 45 °
- - Diameter admitted on the bed: 550 mm
- - Maximum longitudinal stroke: 520 mm
- - Max. Turning for max. Turning length: Ø280 mm x 520 mm
- - Rapid z axis feeds: 12 m/min
- - Rapid feeds x axis: 20 m/min
- - Cone tip of the head mt 7
Qualitative Machine Benefits:
- - Tailstock diameter: 85 mm
- - Maximum travel tailstock: 449 mm
- - Self-centering automatic diam. : 300 mm
- - Auto turret. 6 pos

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
