YCM - FX380AHU-MIL-YCM-2018-00001

Name: YCM FX380A
Brand: YCM
SKU: HU-MIL-YCM-2018-00001
Price: 61800 GBP
Availability: InStock

£ 61,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used YCM FX380A Machining Center For sale | gindumac.com

Show in original language

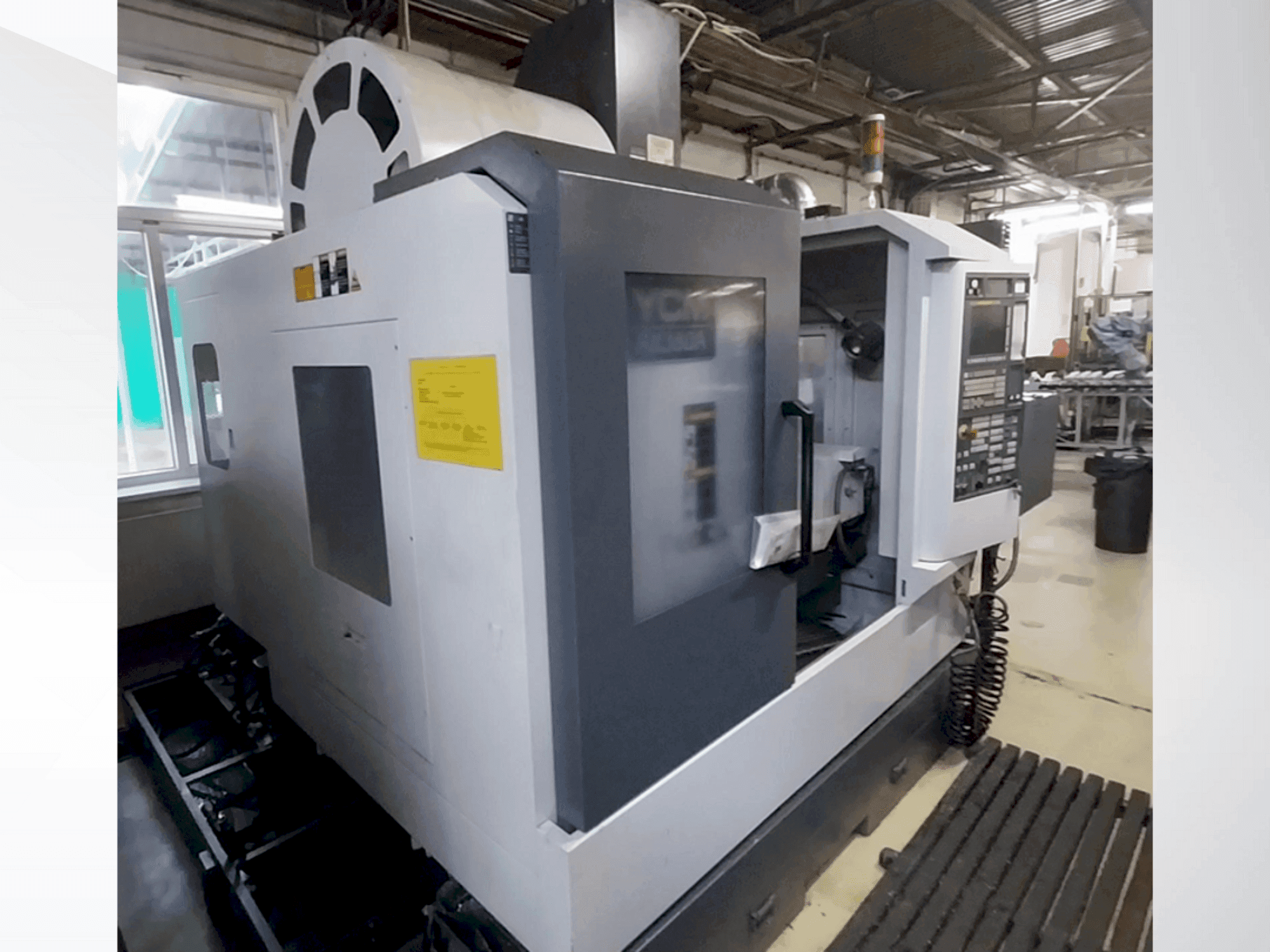

This 3-axis YCM FX380A vertical machining center was manufactured in 2018. It features a high-speed IDD spindle at 12,000 RPM and a MAS-BT40 taper. Equipped with a 30-slot drum tool magazine and a robust 240-liter coolant system, it ensures efficient machining with a table load capacity of 200kg. The spindle supports cooling through the tool with a 20-bar pressure. Ideal for complex machining tasks, the YCM FX380A machine we have for sale. Contact us for more information. There are 2 equal units available.

Overview

brand: YCM
year: 2018
MODEL: FX380A
production hours: 38656
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - YCM FX380A

Control Unit

Model: MXP-200FC
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: MAS-BT40

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 480 mm

Table

Table load: 200 kg
Max punching diameter: 380

Turret

Max tool length: 280 mm
Number of tool slots: 30

Media

Oil water separator: Yes
Chip conveyor: Yes

Additional Equipment

- ATC 30 tool magazine
- Coolant system with 240 liter tank
- High pressure cooling pump MTH2-40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling through the spindle/tool with a pressure of 20 bar
- - Spindle cleaning with air blowing
- - Spindle loyalty system
- - Built-in air cooling
- - Built-in connection for pneumatic/hydraulic actuation
- - Clamping unit, 2xin/2xout
- - Plc modification: simultaneous tightening and loosening of a/c axes for cycle time optimization adjustability if the x and y axes do not move when changing tools
- - Active cooling of electric cabinet
- - Automatic central oiling with oil level monitoring
- - Work space completely paved
Qualitative Machine Benefits:
- - Workplace lighting lamp
- - Working status indicator light
- - Documentation: english
- - 2 equal units available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
