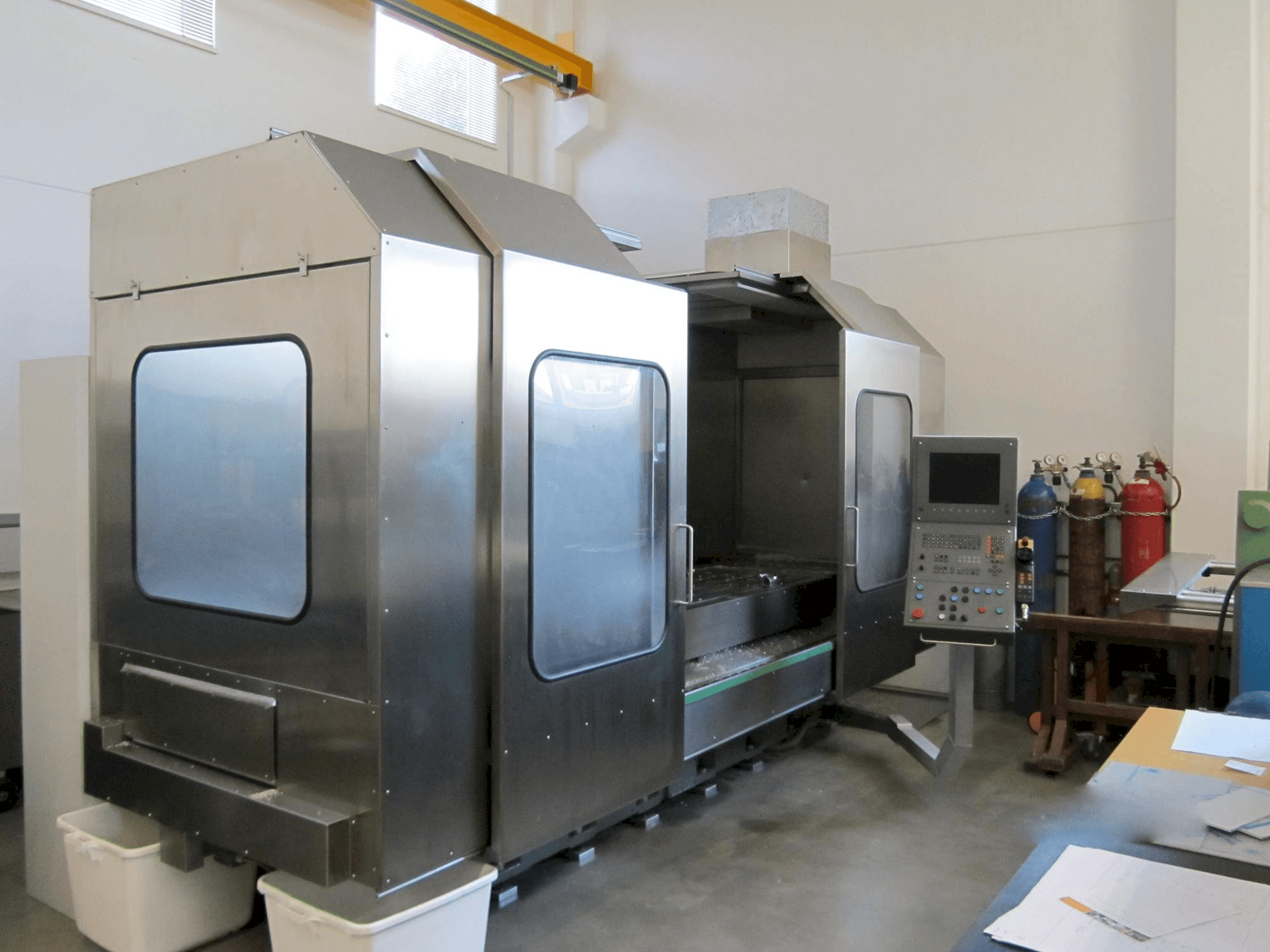

This Zayer BF2200 Milling Machine was built in 1991 and completely renovated in 2005. This machine has a working record of 7145 hours. It is operated through a HEIDENHAIN TNC426 control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm and a table size 2200 x 800 mm. It includes manual books with electrical wiring diagrams.
Overview
- brand: Zayer
- year: 1991
- MODEL: BF2200
- production hours: 7145
- application type: Milling
- Location: Hungary
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - Zayer BF2200
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC426
Dimensions
- Machine Depth: 2400 mm
- Machine Height: 3000 mm
- Machine Weight: 15000 kg
- Table Length: 2200 mm
- Table Load: 4000 kg
- Table Width: 800 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1890 mm
- Y-axis Travel: 1016 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- SK40 vertical head
- SK50 HURON head (can be rotated at an angle)
- Along with a couple of SK50 tool holders
- Minimal lubrication
- Measuring rods on all three axes
- Electric handwheel
- Slippers
- Brand new, acid-proof enclosure system with integrated LED lighting
- Backup winchester and data backup
Machine Benefits
Qualitative Machine Benefits
- Completely renovated in 2005 (new drive system, new universal head, ball screws, acid-proof casing system and new controller)
- It was only used for dry machining since their renovation
Technical Machine Benefits
- Spindle cone: iso50
- High speeds x / y / z = 35/35/30 m/min
- Spiral chip conveyor
- Machine manual, electrical wiring diagrams included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
