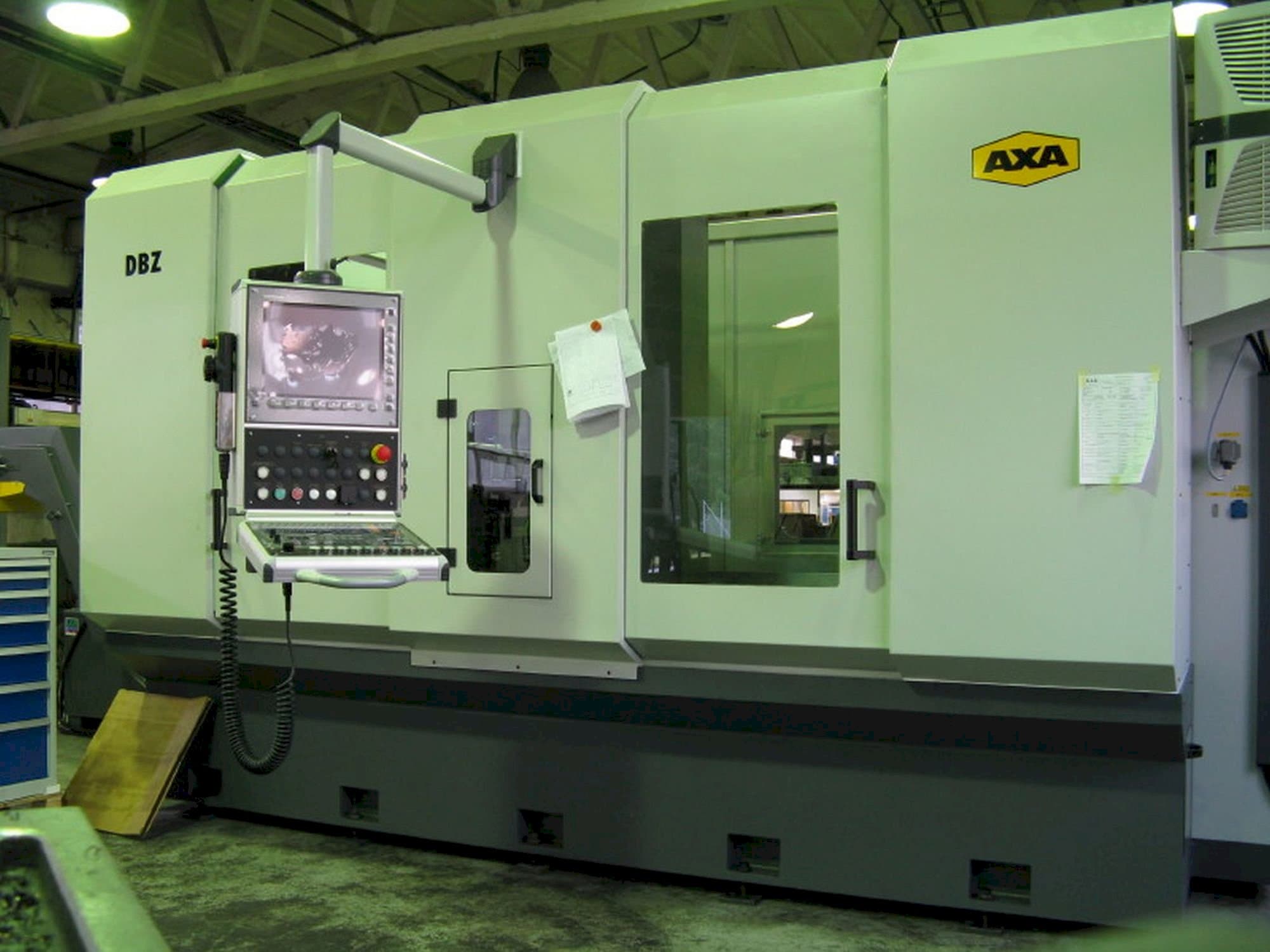

AXA DBZ Vertical Machining center

Show in original language

This AXA DBZ Vertical Machining center was manufactured in the year 2008 in Germany and has 58513 production hours, of which 23672 are spindle hours. It is equipped with a HEIDENHAIN ITNC530 control unit and has 4 axis. The machine has a spindle speed of 6000 rpm, is in good condition and well maintained.

Overview

brand: AXA
year: 2008
MODEL: DBZ
production hours: 58513
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - AXA DBZ

General Data

Measurements width: 2250 mm
Measurements depth: 4460 mm
Measurements height: 3550 mm
Machine weight: 12000 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 2 x 750 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1000 mm
Outer width: 500 mm

Tools

Slots in storage: 22
Max weight: 8 kg
Max tool diameter: 85/180 mm
Max tool length: 400 mm

Media

Power consumption: 69 kVa

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good condition, regularly maintained.
2015 - spindle retrofitted
2023 - new tool changer motor

Technical Machine Benefits

Distance table - spindle nose 180 - 780 mm
Rapid feedrate x/y/z: 25/25/20 m/min
Spindle motor power 40% ed: 40 kw, torque 40% bd: 191 nm
Through spindle coolant, high pressure 20 bar
External additional 400l tank with paper belt filter device
4th axis preparation
2pcs wash guns, electronic handwheel control, exhaust collector, air conditioning of the switchboard and spindle
