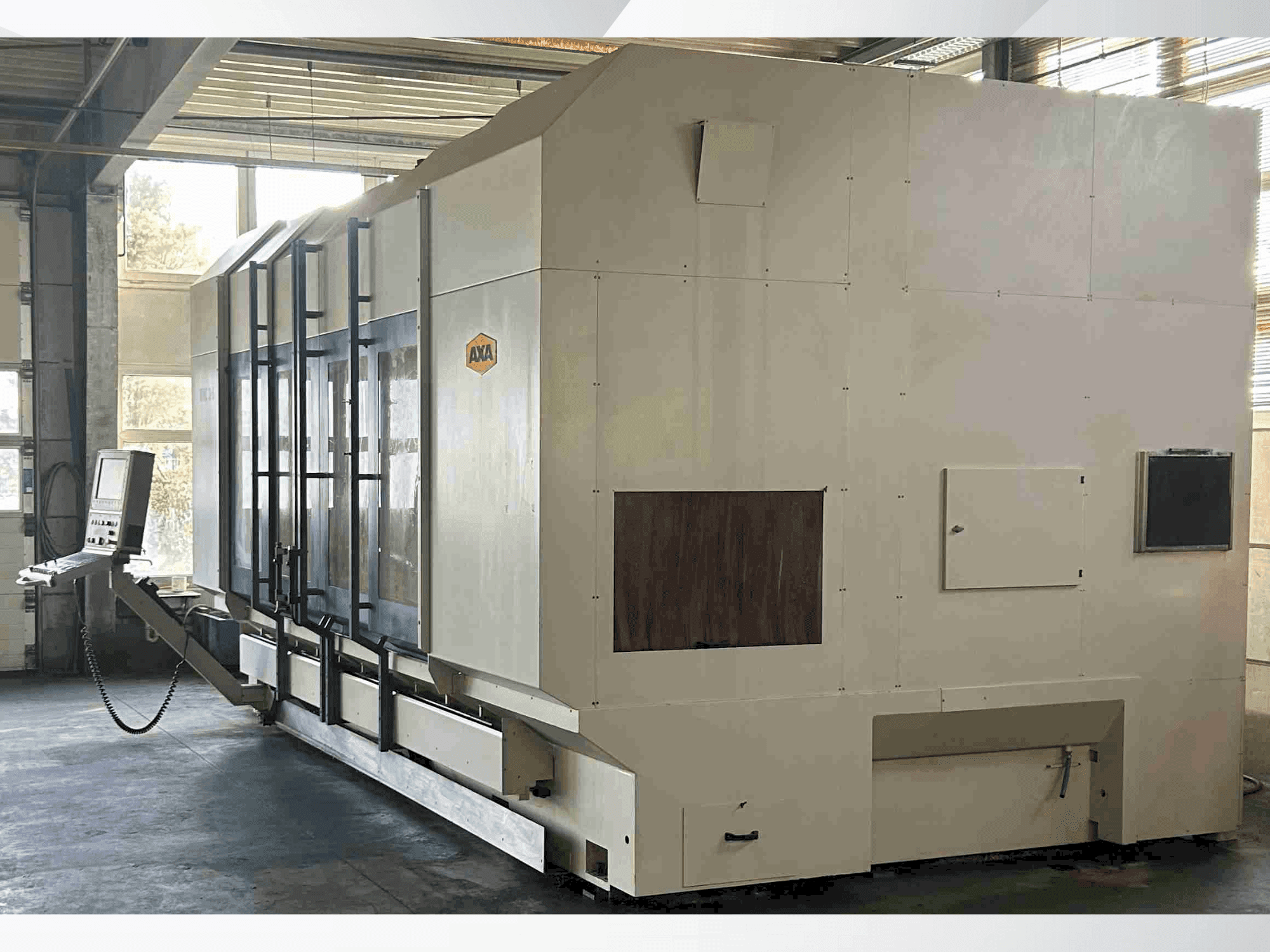

AXA - VHC 3-3000 SDE-MIL-AXA-2006-00002

Additional Equipment

• - Machines comes with C-axis and a +/-100º b-axis head.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. Torque at 40%: 143 (-255) nm
  • - Max. Power at 40%: 30 (40) kw
  • - Coolant supply through spindle: 40 bar
  • - Max. Feed force: 9000 n
  • - X-axis travel: 1760 - 9000 mm
  • - Pendulum travel: approx. X-travel/2 - 500 mm
  • - Y-axis travel (horizontal/vertical): 700 (900) mm
  • - Z-axis travel (horizontal/vertical): 850 (950) mm
  • - Distance table to spindle nose (horizontal/vertical): 250 - 1100 mm / 40 - 890 mm
  • - T-slots, center slot as alignment slot h7: 14 h9 mm
• Qualitative Machine Benefits:
  • - T-slot spacing: 160 mm
  • - 3d probe: rmp 60 renishaw
  • - Tool probe: tt140 heidenhain
  • - Nc swivel head, infinitely adjustable, swivel range ± 100°
  • - Swivel range b-axis: ± 90°
  • - Locking: 2. 5° (1°, stepless)
  • - Min. Tool change time: 5 sec.
  • - Positioning accuracy over 1000 mm: ± 0. 015 (0. 0075) mm
  • - Repeatability: ± 0. 005 mm
  • - Milling in st 60 max. : 800 cm³/min

Extra information

• - Machine still under power Drilling in St 60 max.: Ø 35 mm Thread cutting in St 60 max.: M 30 Additional weight per meter of X-travel: approx. 2500 kg Weight of base machine (X = 1760): approx. 14500 kg
