AXA VHC 50-XTS

Photo Gallery

AXA - VHC 50-XTSDE-MIL-AXA-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Vertical Machining Centre AXA VHC 50-XTS - 2009 - for sale | gindumac.com

Show in original language

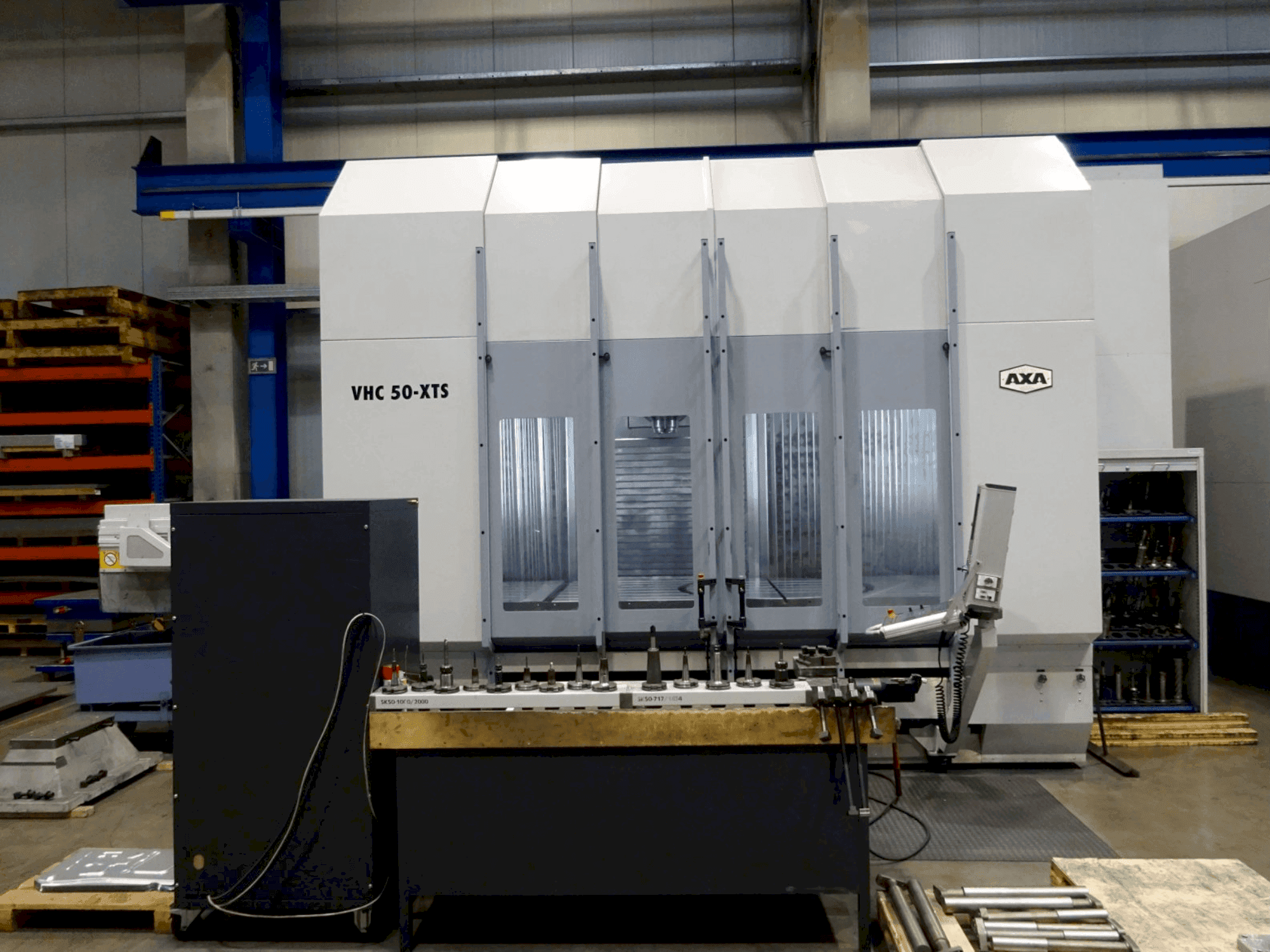

This 5-Axis vertical machine center manufactured in 2009, the AXA VHC 50-XTS, features advanced capabilities for complex machining. It includes a large traverse path of X 2000mm, Y 1000mm, Z 1000mm, and a rotary table diameter of 1200mm. Equipped with a 57 kW spindle achieving 7500 rpm and Heidenhain iTNC530 control, this machine ensures precision and power. Additionally, the 60-place tool changer and integrated tool cooling enhance its efficiency. The AXA VHC 50-XTS machine we have for sale is optimized for high-performance operations. Contact us for further details.

Overview

brand: AXA
year: 2009
MODEL: VHC 50-XTS
production hours: 17656
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - AXA VHC 50-XTS

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 7500 rpm 1/MIN
Spindle motor power: 57 kW
Number of axis: 5

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Additional Equipment

- Tool holder SK50 DIN69871
- Tool changer 60 places
- Tool cooling air IKZ

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Electric handwheel // 3d measuring probe rmp 60 with receiver.
- - Clamping surface: x 3240mm, y 1200mm
- - Rotary table diameter: 1200mm
- - Spindle 540 nm
- - Swivelling range +/- 100°
- - Cutting belt chip conveyor on the right, 400mm feed width.
- - Discharge height approx. 1200mm, compressed air through the spindle.
- - 1-axis swivelling head, infinitely variable positioning, rta integrated at the same height as the fixed table, movable control panel for vhc.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
