Biglia B600

Photo Gallery

Biglia - B600IT-TUR-BIG-1993-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

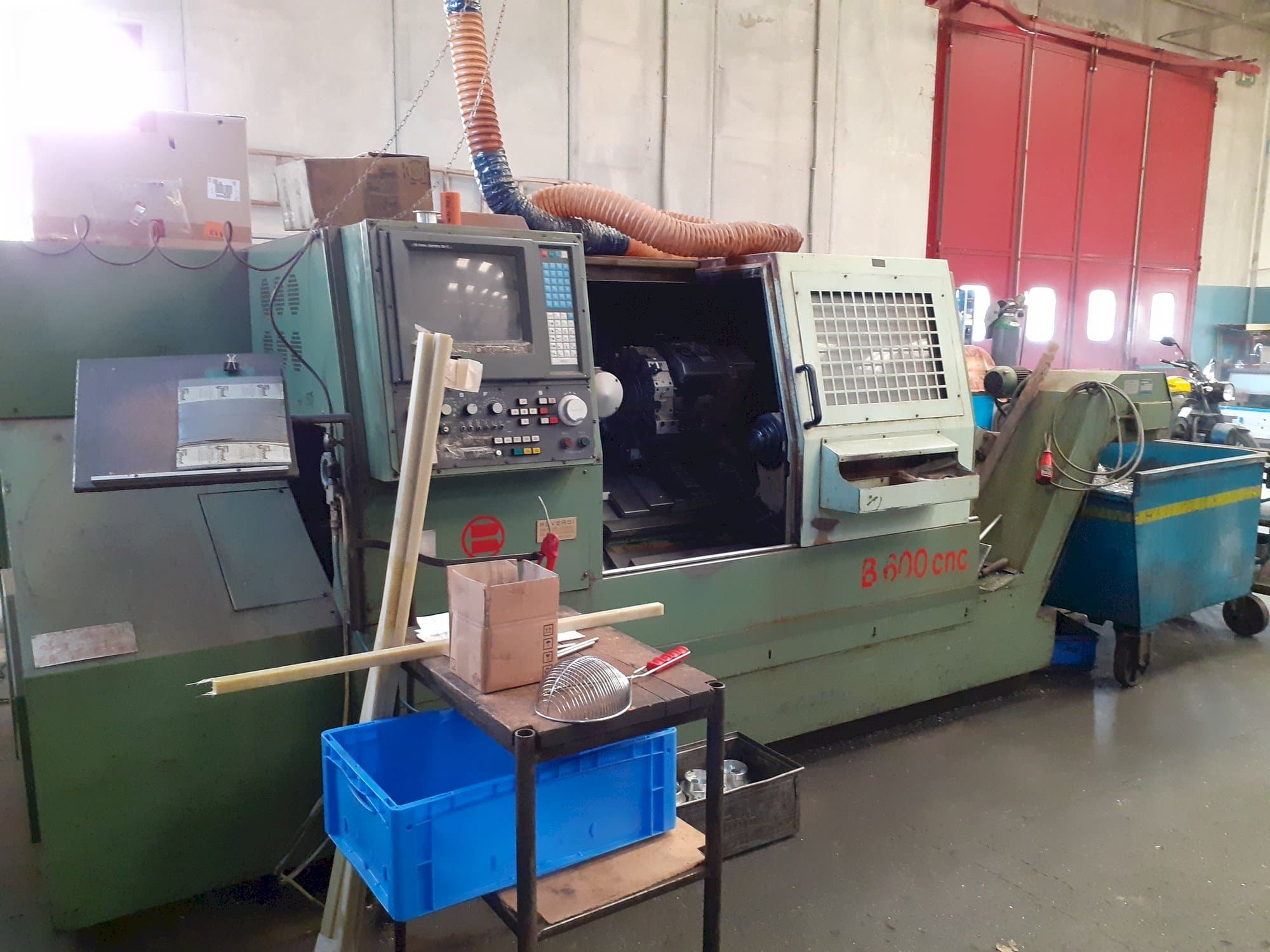

Biglia B600 Lathe

Show in original language

This Biglia B600 Lathe was manufactured in Italy in the year 1993. It is operated through a GE FANUC Series 15-T control unit. This machine can work with a spindle speed up to 3200 rpm.

Overview

brand: Biglia
year: 1993
MODEL: B600
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Biglia B600

General Data

Measurements width: 4100 mm
Measurements depth: 1700 mm
Measurements height: 1740 mm
Machine weight: 5500 kg

Control Unit

Model: Series 15-T
Brand: FANUC

Main drive

Spindle speed range: 60 - 3200 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Diameter turning: 355 mm
- - Max. Diameter rotating: 560 mm
- - Max. Length turning: 650 mm
- - Distance between spindle and tailstock: 900 mm
- - Bar passage diameter: 56 mm
- - Turning speed: 3200 rpm
- - Cross slide travel (x axis): 225 mm
- - Stem stroke: 150 mm
- - Number of turret stations: 12
- - Cad system for autoprogramming
Qualitative Machine Benefits:
- - Iso system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
