EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center

Show in original language

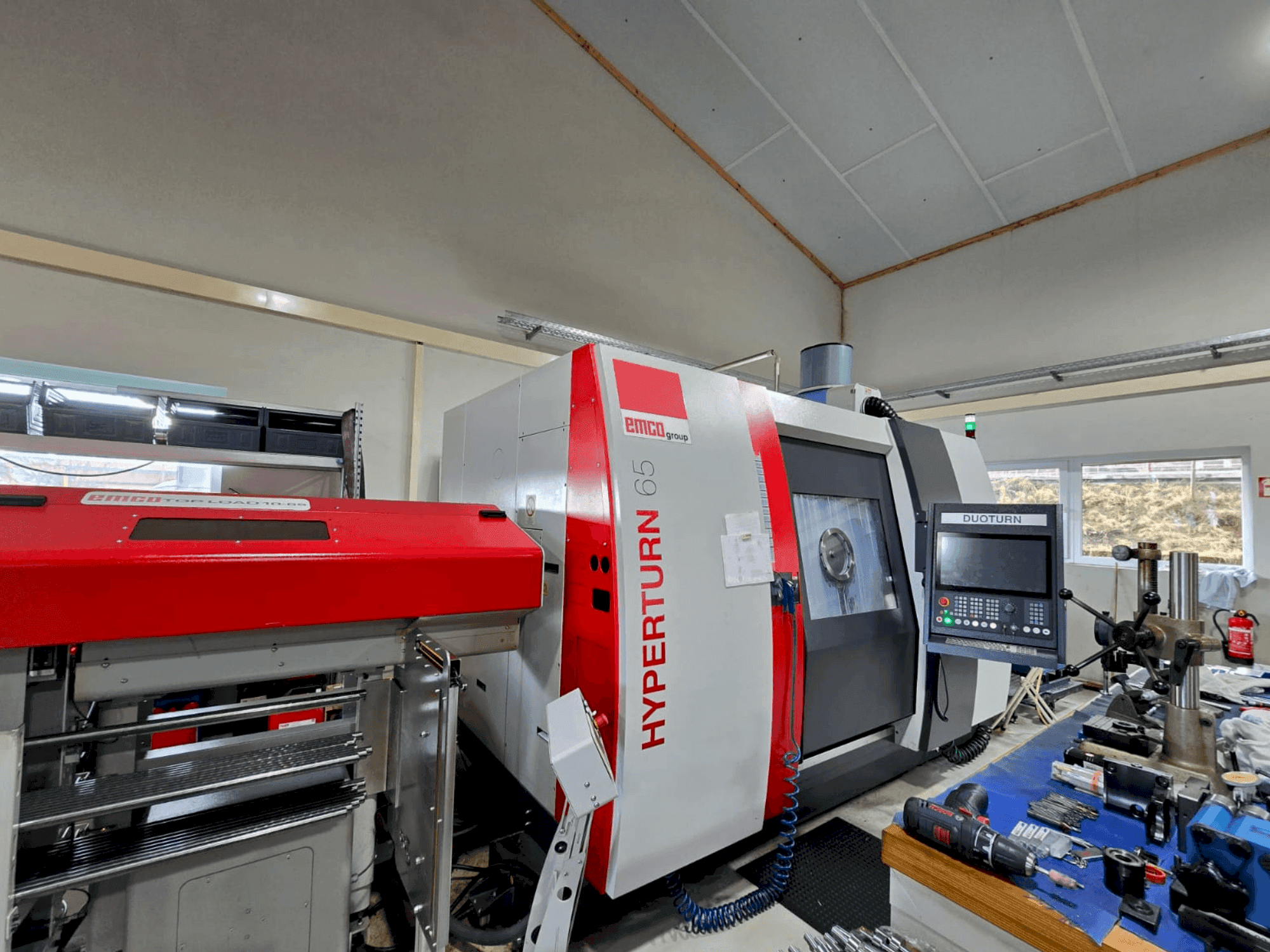

This EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center was built in the year 2018 in Austria. It is equipped with a SIEMENS Sinumerik 840D SL Control and 2 turrets including milling drive and 2 Y-axes. This highly productive CNC turning/milling center is perfect for the complete machining of turned and milled parts with 1300 m spindle distance. It has integrated spindle motors (ISM) on the main and counter spindles with a spindle speed range from 0 - 5000 min-1. This complete center features 2x 12-fold tool turret radial with directional logic for up to 2x 12 driven tool stations (swivel speed adjustable with feed switch). It comes with several extras from MT65/HT65 BigBore77 to BMT turret (top right) with direct drive for HT65DT/HT65TT/MT65 (the VDI30 standard turret is replaced by a BMT turret with BMT55P precision interface). See original PDF (German) with all positions attached. Check out photo and video gallery for more details.

Overview

brand: EMCO
year: 2018
MODEL: HYPERTURN 65-1300 DUOTURN
production hours: 15000
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - EMCO HYPERTURN 65-1300 DUOTURN

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D SL

Technical Specification

Spindle Power: 29 kW
Spindle Speed: 5000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Top Automazioni bar loader (Model: ETL10-75, YOM 2018) - weight 2500 kg
600l external cooling water tank with belt filter from Bürener
Parts ejector and flushing through the counter spindle
Chip conveyor with an ejection height of 1200mm (programmable)
Coolant device integrated in the chip conveyor
2 pcs. High pressure pumps with 14 bar // 2 pcs. flushing pumps with 3.7 bar
Electronic handwheel 840D
COMPRESSED AIR SYSTEM FOR GLASS SCALES
EMCO TOP LOAD 15-75/3200 MULTI-LEVEL
PART CATCHER WITH FINISHED PART DUST BELT // BELT FILTER SYSTEM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
