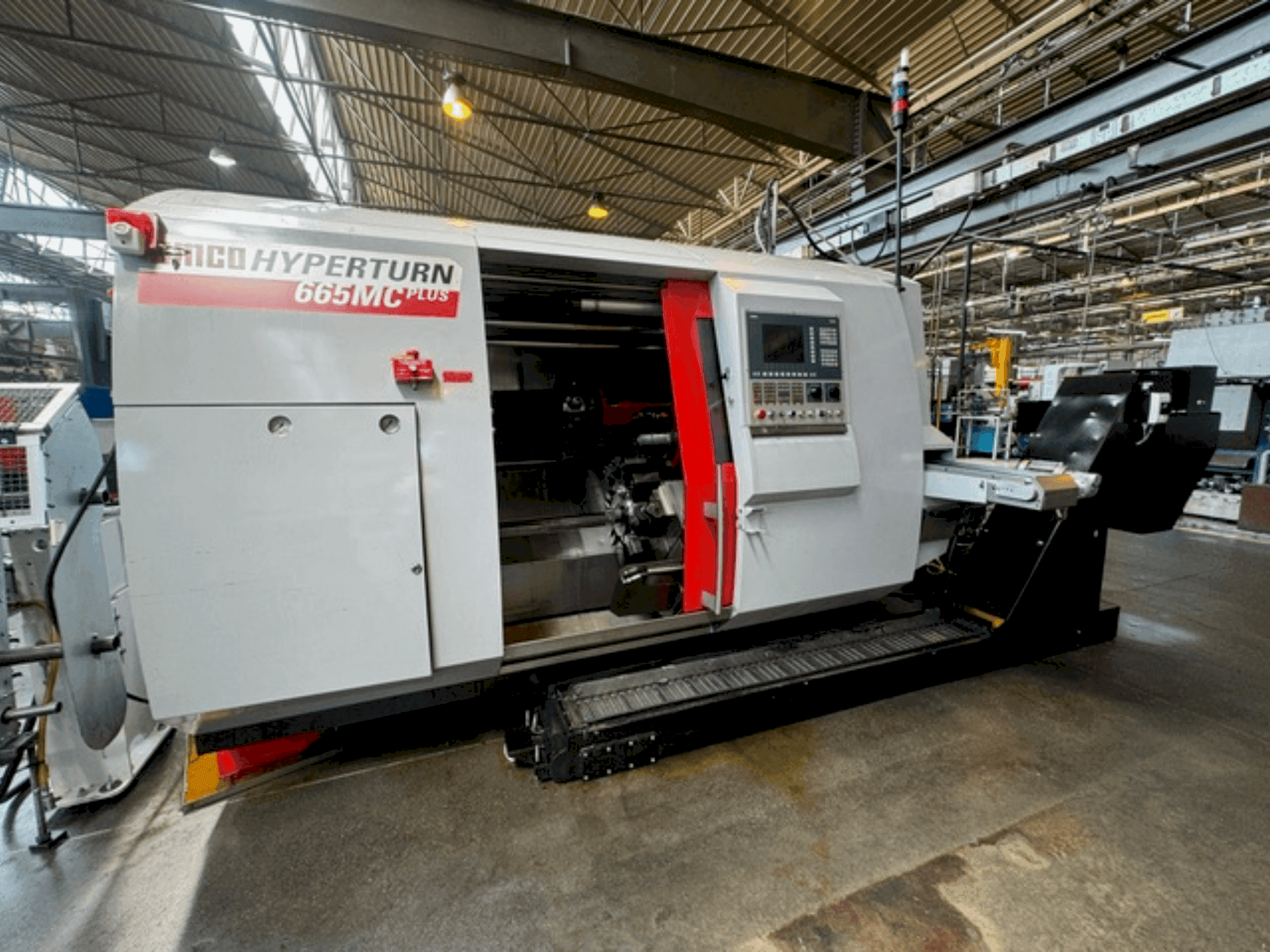

Front view of EMCO HYPERTURN 665 MC PLUS machine
Front view of EMCO HYPERTURN 665 MC PLUS machine

EMCO - HYPERTURN 665 MC PLUSFR-TUR-EMC-2005-00001

£ 41,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis EMCO HYPERTURN 665 MC PLUS lathe was manufactured in 2005. It features twin spindles, twin turrets, and a maximum turning diameter of 600 mm. Equipped with a SIEMENS 840D CNC, it offers spindle speeds up to 5000 rpm and a bar passage diameter of 65 mm. Additional features include a LNS MOVE bar loading magazine, high-pressure coolant system, and air-conditioned control cabinet. For more information about this lathe, please reach out to us.

Overview

  • brand: EMCO
  • year: 2005
  • MODEL: HYPERTURN 665 MC PLUS
  • production hours: 52581
  • application type: Turning
  • Location: France
  • machine type: Turn-Mill Centre
  • control unit brand: SIEMENS

Technical Information - EMCO HYPERTURN 665 MC PLUS

General Data

  • Measurements width: 3400 mm
  • Measurements depth: 2550 mm
  • Measurements height: 2300 mm
  • Machine weight: 9500 kg

Control Unit

  • Model: 840D
  • Brand: SIEMENS

Main drive

  • Number of spindles: 2
  • Spindle speed range: 5000 1/MIN
  • Spindle motor power: 22/29 kW

Movement

  • X-AXIS Movement: 280 mm, X2 axis: 205 mm
  • Y-AXIS Movement: 100 mm +/-50 mm
  • Z-AXIS Movement: Z/Z2/Z3=900/750/750 mm

Workpiece

  • Workpiece x: 744 mm

Table

  • TSlots size: VDI40

Turret

  • Number of turrets: 2
  • Number of tool slots: 12 Motorized tools VDI40 stations (both upper and lower turret)

Media

  • Power consumption: 46 kVA
  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 300-liter high-pressure coolant system
      • - Twin-spindle and twin-turret configuration, advanced control unit.
    • Qualitative Machine Benefits:
      • - High precision and repeatability, enhanced productivity. Extra information
