Bridgeport VMC 1000/30

Show in original language

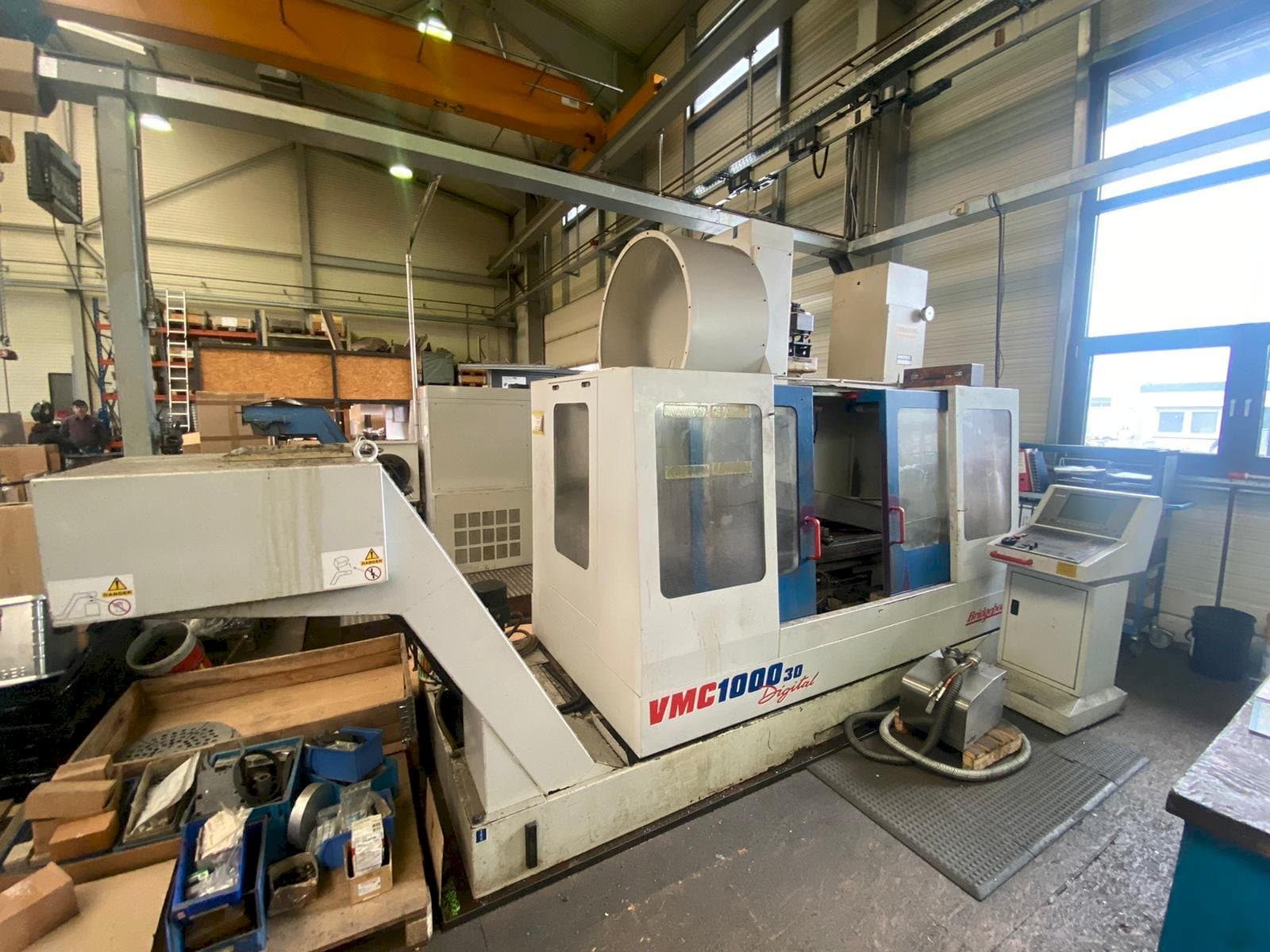

This Bridgeport VMC 1000/30 Vertical Machine Center was made in the year 2000 in the United Kingdom. It has a production record of 56378 hours, of which 12514 are spindle hours. This 3 axis machine is equipped with a HEIDENHAIN 426 control unit. It operates with a spindle speed up to 6000 rpm. It includes approx. 50 tool holders and is ready for operation.

Overview

brand: Bridgeport
year: 2000
MODEL: VMC 1000/30
production hours: 56378
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 1000/30

General Data

Measurements width: 3200 +1500mm ( chip conveyor)
Measurements depth: 2200 mm
Measurements height: 2800 mm
Machine weight: 4200 kg

Control Unit

Model: 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 500 mm

Tools

Type of tool holder: BT40

Media

Main electronic connection: 400V 3 phases 50 Hz
Power consumption: 25 KVA min 30A fused
Chip conveyor: Yes

Additional Equipment

- 75 pieces BT 40 holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 32 magazine
- - Control data is saved
- - Data backup of parameters and plc on server
Qualitative Machine Benefits:
- - Ready for operation
- - Newly stored approx. 500 operating hours ago
- - Is ready for operation under power
- - Buffer battery new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
