Brother TC-S2A

Photo Gallery

Brother - TC-S2AES-MIL-BRO-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

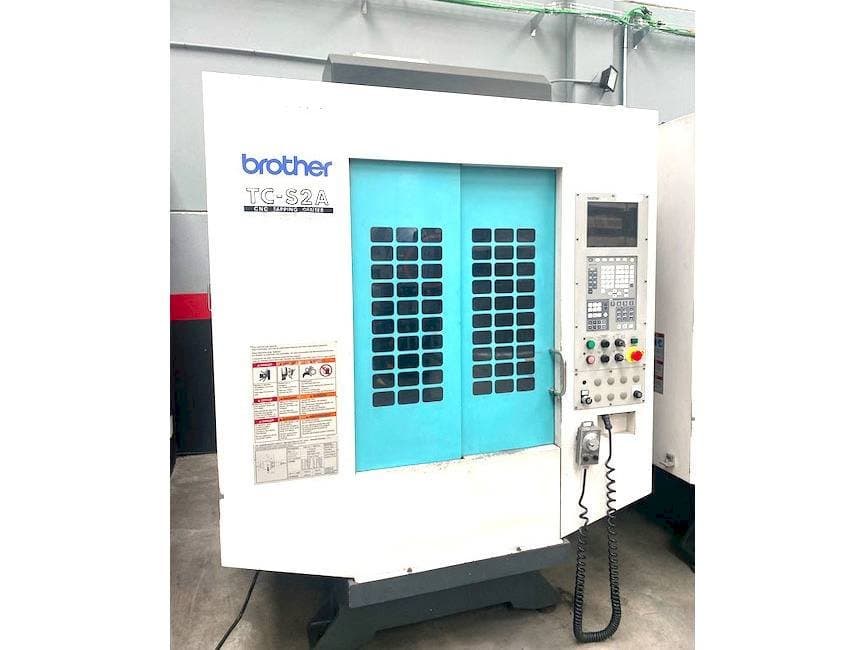

This Brother TC-S2A Vertical Machining Center from 2003 was made in Japan. It has been working for only 15200 hours. This 3 axis machine is equipped with a Brother A00 control unit. It can operate with a spindle speed up to 10000 rpm. This machine changed its spindle in 2020. It is in a good status.

Overview

brand: Brother
year: 2003
MODEL: TC-S2A
production hours: 15200
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother TC-S2A

General Data

Measurements width: 1800 mm
Measurements depth: 1600 mm
Measurements height: 2360 mm
Machine weight: 1800 kg

Control Unit

Model: A00
Brand: BROTHER

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7 KW
Number of axis: 3

Movement

X-AXIS Movement: 480 mm
Y-AXIS Movement: 360 mm
Z-AXIS Movement: 270 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 600 mm
Outer width: 300 mm

Tools

Slots in storage: 14
Type of tool holder: BT 30

Media

Main electronic connection: 380 V 50/60 HZ
Power consumption: 20 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - New spindle in 2020
Qualitative Machine Benefits:
- - Little working hours
- - Good status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
