CHIRON FZ 08 S

Photo Gallery

CHIRON - FZ 08 SHR-MIL-CHI-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

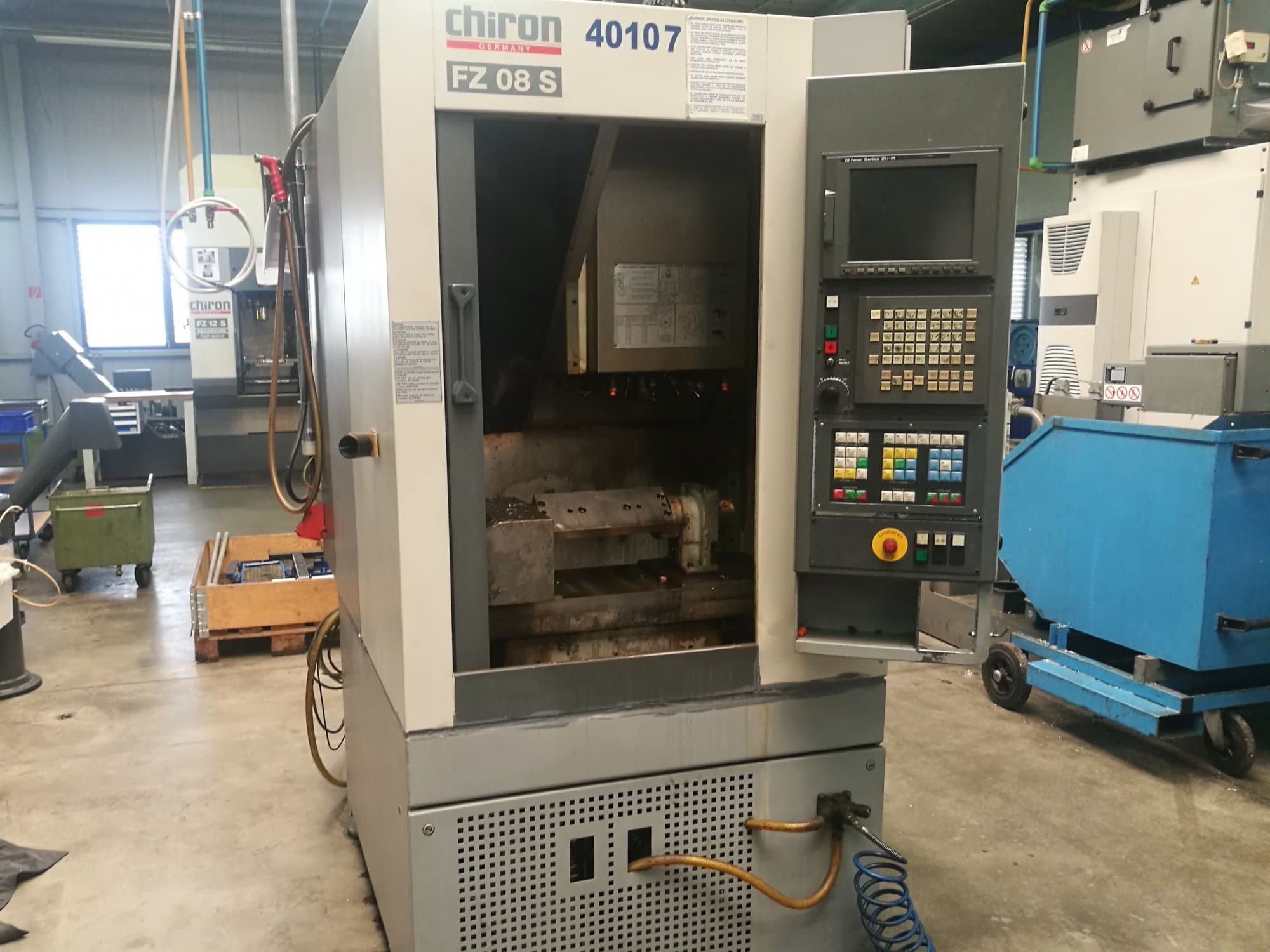

Chiron FZ 08 S Vertical Machining Center

Show in original language

This Chiron FZ 08 S Vertical Machining Center from 2000 was manufactured in Germany and has an total production time of 50000 hours. Operated through a FANUC 21i-M Control unit, this machine stands out due to its 4 axis and fast production. With a max spindle speed of 10500 rpm, this machine has mainly worked with aluminum and titan during the past.

Overview

brand: CHIRON
year: 2000
MODEL: FZ 08 S
production hours: 50000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON FZ 08 S

General Data

Measurements width: 1400 mm
Measurements depth: 2050 mm
Measurements height: 2250 mm
Machine weight: 1820 kg

Control Unit

Brand: FANUC
Model: 21i-M
CNC main language: German

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/min

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm
A-AXIS Movement: 360°

Table

Outer length: 620 mm
Outer width: 270 mm

Tools

Slots in storage: 12
Max tool diameter: 63 mm
Max tool length: 160 mm

Media

Main electronic connection: 400 V/ 50 Hz
Power consumption: 8 kVA

Additional Information

Additional equipment

Automatic Tool Changer with 12 tools slots
Chip Container
Working Table
Pielser Rotary unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
