CHIRON FZ15S

Photo Gallery

CHIRON - FZ15SHR-MIL-CHI-2001-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

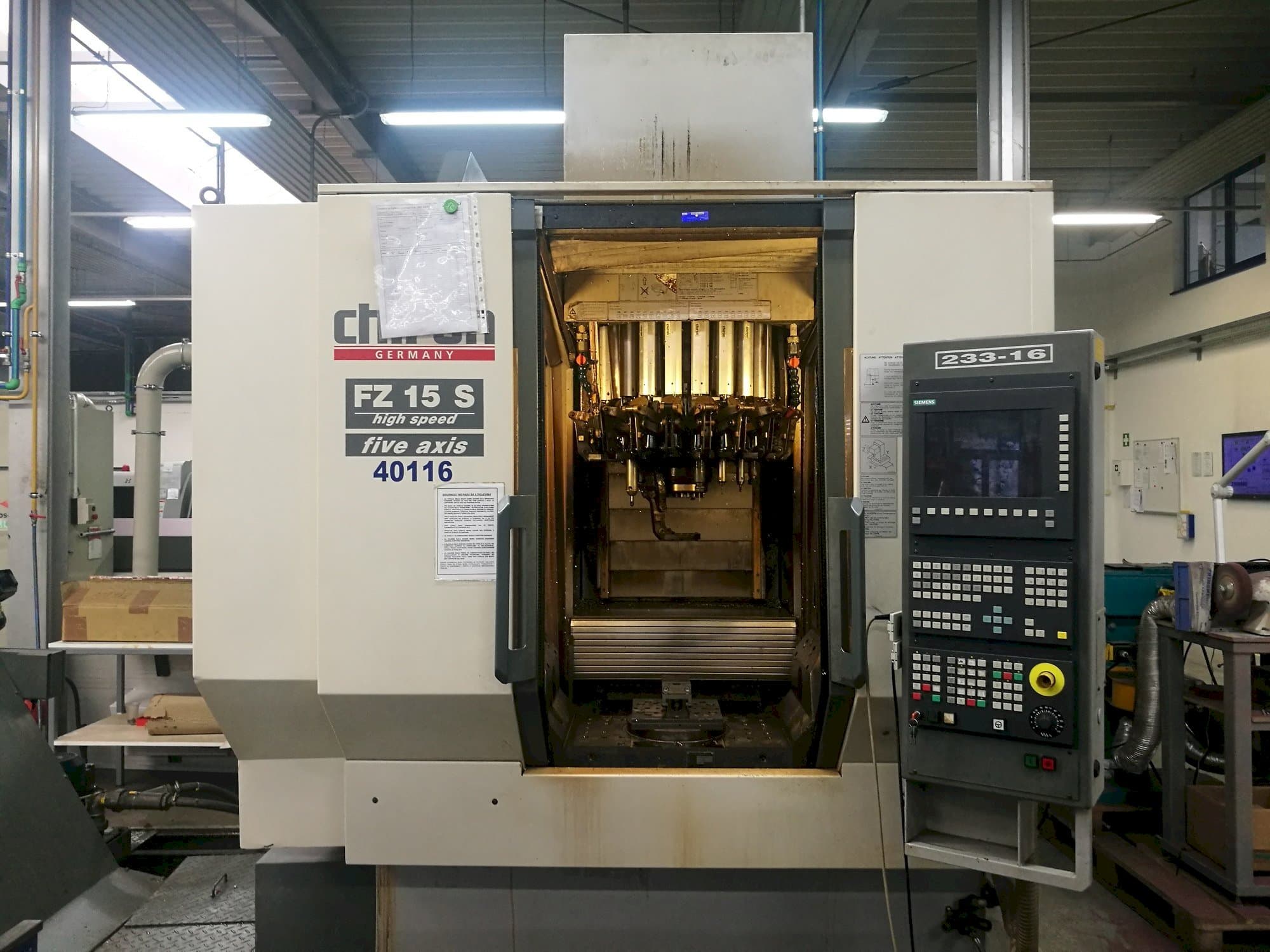

CHIRON FZ15S Vertical Machining Center

Show in original language

This CHIRON FZ15S Vertical Machining Center was made in the year 2001 in Germany and has been working for 33800 hours. Equipped with a SIEMENS 840D Control unit, this machine can operate with a spindle speed up to 10500 rpm. It stands out for its 2 axis tilting rotary table and well maintained status.

Overview

brand: CHIRON
year: 2001
MODEL: FZ15S
production hours: 33800
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ15S

General Data

Measurements width: 4050 mm
Measurements depth: 3500 mm
Measurements height: 2800 mm
Machine weight: 7020 kg

Control Unit

Model: 840D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm
A-AXIS Movement: 360° MM
B-AXIS Movement: +-111° MM

Table

Outer length: 600 mm
Outer width: 340 mm

Tools

Slots in storage: 20
Type of tool holder: SK40

Media

Main electronic connection: 400 V
Power consumption: 31 kVA
Chip conveyor: Yes

Additional Information

Machine history

Material type: Aluminium, titanium
End product: Medical instruments parts
Industries: Medical

Machine Benefits

Technical Machine Benefits:
- - 2 axis tilting rotary table
Qualitative Machine Benefits:
- - Regulary maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
