➤ Used CHIRON Mill 2000 For sale | gindumac.com

Show in original language

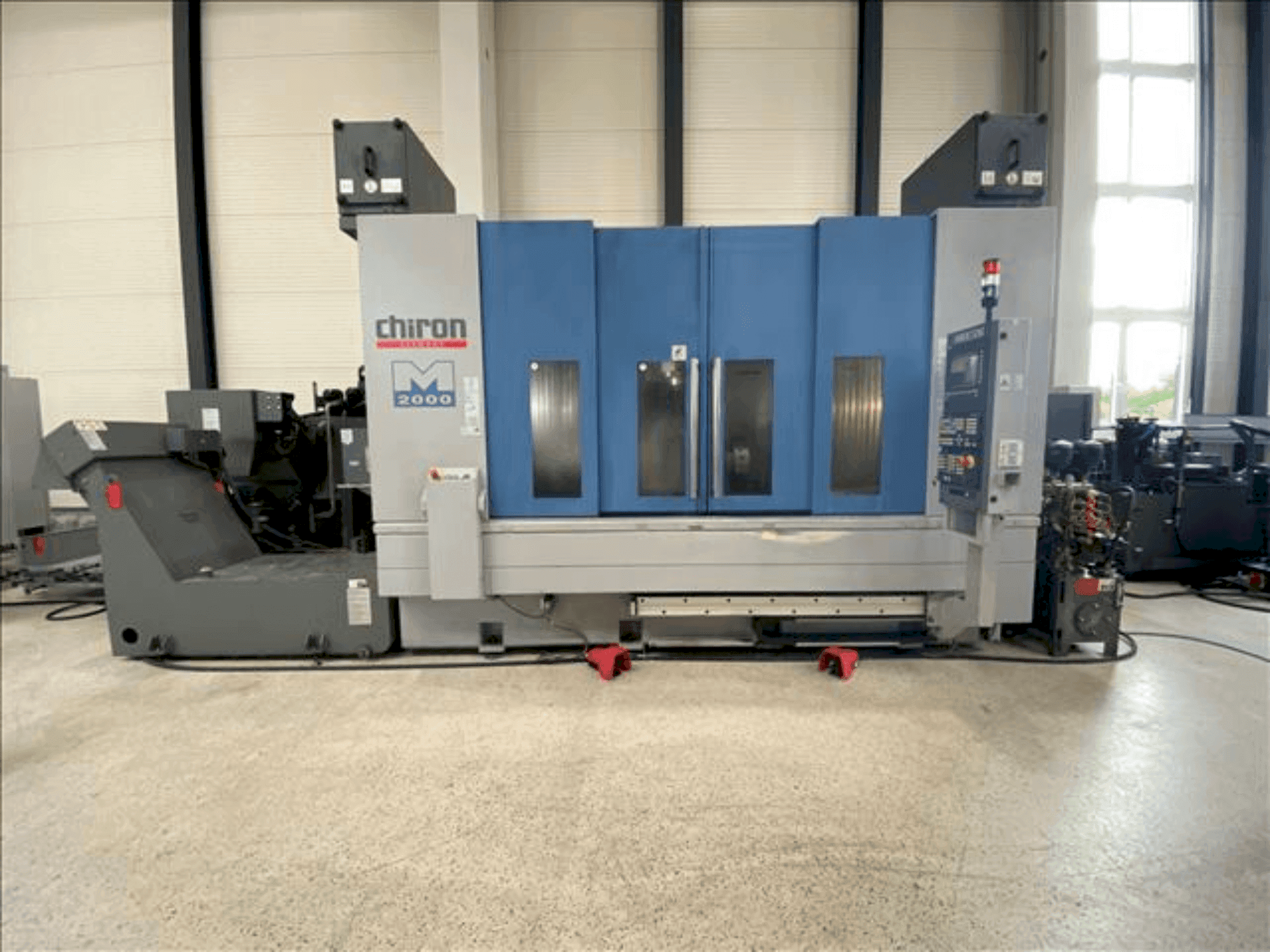

This 4-axis CHIRON Mill 2000 vertical machining centre was manufactured in 2005. Equipped with a Siemens 840D Powerline control, it features a spindle speed of 12,000 rpm and a rapid motion of 40 m/min. The machine includes a chip conveyor, internal cooling unit, and a tool changer with 98 positions. Ideal for complex machining tasks, the CHIRON Mill 2000 machine we have for sale is a robust addition to any workshop. Contact us for more information.

Overview

brand: CHIRON
year: 2005
MODEL: Mill 2000
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - CHIRON Mill 2000

General Data

Measurements width: 4000 mm
Measurements depth: 7000 mm
Measurements height: 3100 mm
Machine weight: 12000 kg

Control Unit

Model: 840D - Powerline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 34 kW
Tool taper: HSK-A63
Number of axis: 4

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 480 mm
Z-AXIS Movement: 630 mm

Tools

Number of index: 24 + 74 tool changer positions

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Internal Cooling Unit: With filter and high-pressure system
- Laser Tool Breakage Control
- Oil Mist Separator: 2 mechanical extraction pieces
- Horizontal Rotary Axis: Peiseler AWD 300 with 2-Jaw chuck @360 mm and counterbearing Peiseler GLP/MK4 + one further Peiseler AWD 300
- Tailstock (Foldable)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 140 nm
- - Mounting table: 2600 x 550 mm
- - Efficient tool management with a large number of tool positions.
- - Advanced measurement capabilities with preparation for renishaw touch probe.
Qualitative Machine Benefits:
- - Precision control with siemens 840d - powerline.
- - Enhanced cooling system for better performance in challenging environments.

Extra information

- Transport Information: Requires a wide MEGA-Trailer or a low-bed trailer due to its size (width over 3,000 mm).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
