Correa A25-25

Photo Gallery

Correa - A25-25ES-WAT-COR-1989-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

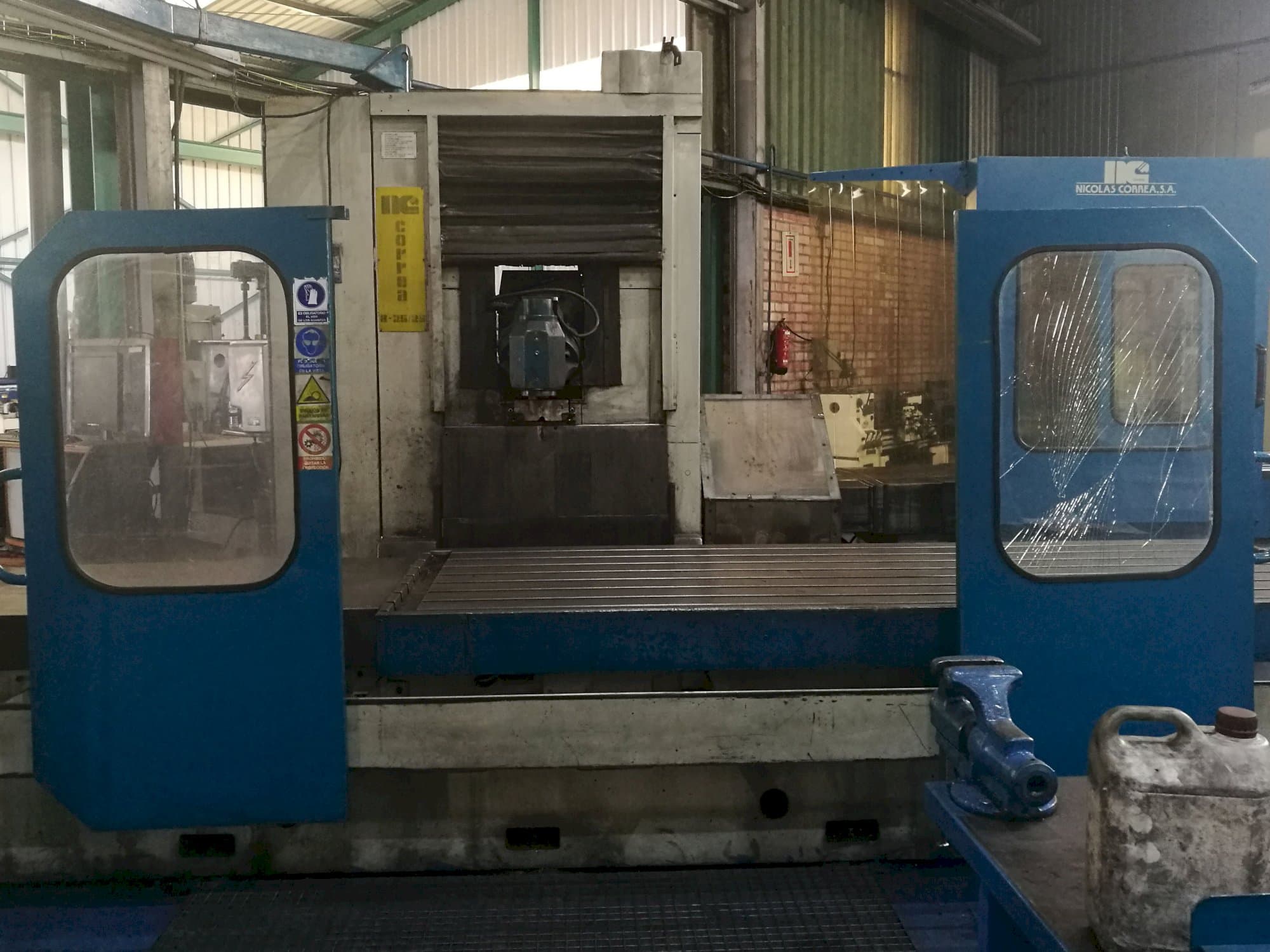

Correa A25-25 Milling Machine

Show in original language

This Correa A25-25 Milling Machine was manufactured in Spain in 1989 and has working time of 50000 production hours since then. Operated through a Heidenhain TNC 355 Control unit, this well mantained machine machine has had its spindle balls for the three axes changed and a retrofit in the y-axis motor.

Overview

brand: Correa
year: 1989
MODEL: A25-25
production hours: 50000
application type: Milling
Location: Spain
machine type: CNC Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Correa A25-25

General Data

Measurements width: 6590 mm
Measurements depth: 3600 mm
Measurements height: 2700 mm
Machine weight: 12500 kg

Control Unit

Model: TNC 355
CNC main language: Spanish
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20-2500 rpm 1/MIN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece x: 2800 mm
Workpiece y: 1000 mm
Workpiece weight: 5000 kg

Table

Outer length: 2800 mm
Outer width: 900 mm
Number of tslots: 7
Distance between: 125 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
