Correa A30/40 Milling Machine

Show in original language

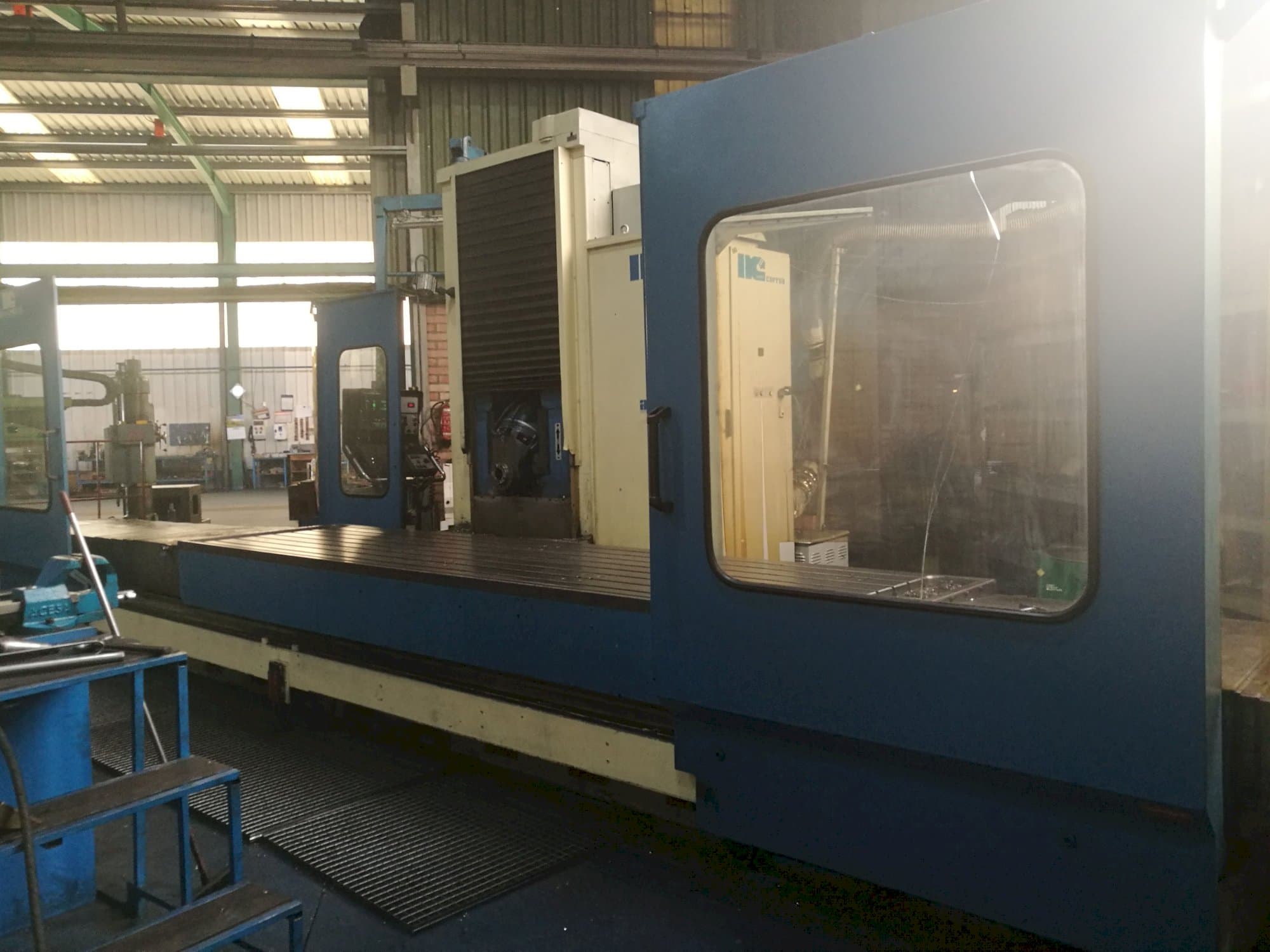

This Correa A30/40 Milling Machine was manufactured in Spain in 2000 and has a total working time of 59960 production hours. Operated through a Heidenhain TNC 430 Control unit, this machine counts with a spindle speed up to 3000 rpm. It presents very good conditions, as its main head has been rectified and the spindle balls changed. A spindle adjustment was made to this machine for perfect and precise work. In 2018 the Heidenhain TNC 430 solid disc was replaced.

Overview

brand: Correa
year: 2000
MODEL: A30/40
production hours: 59960
application type: Milling
Location: Spain
machine type: Bed Type Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Correa A30/40

General Data

Measurements width: 10150 mm
Measurements depth: 4664 mm
Measurements height: 3320 mm
Machine weight: 22500 kg

Control Unit

Model: TNC 430
CNC main language: Spanish
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20-3000 rpm 1/MIN

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1500 mm

Workpiece

Workpiece x: 4500 mm
Workpiece y: 1200 mm
Workpiece z: 1500 mm
Workpiece weight: 9000 kg

Table

Outer length: 4500 mm
Outer width: 1100 mm
Number of tslots: 8
Distance between: 125 mm

Media

Main electronic connection: 400 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
