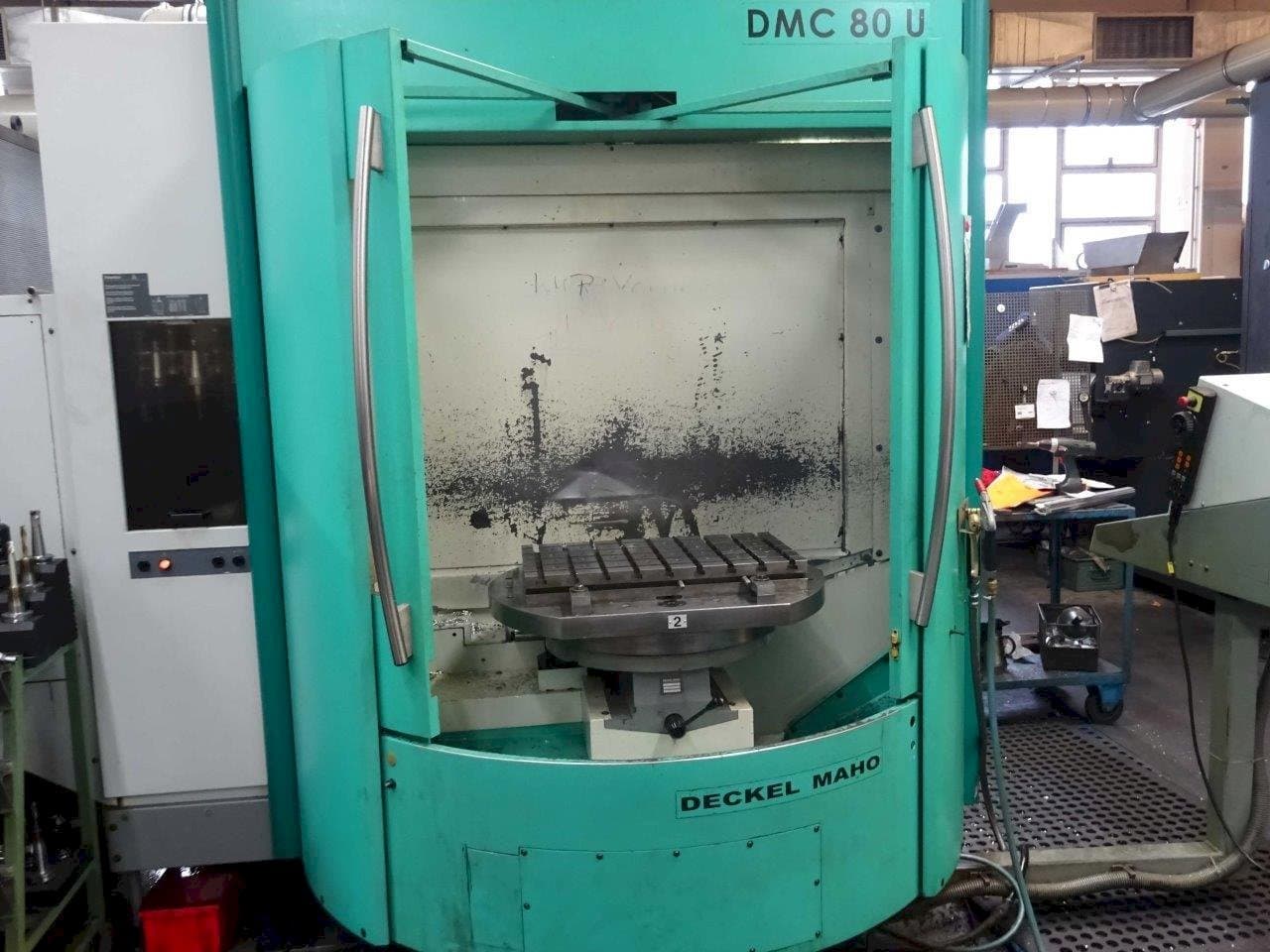

Deckel Maho DMC 80 U universal machining center

Show in original language

This Deckel Maho DMC 80 U universal machining center was manufactured in 1998. The 3 axis machine has a total of 65421 operating hours, of which 27735 are spindle hours. This machine is operated through a Phillips-Grunding MillPlus CNG-3D-Path control unit. It has a spindle speed up to 12000 rpm. A new spindle was installed in 2016.

Overview

brand: DECKEL MAHO
year: 1998
MODEL: DMC 80 U
production hours: 65421
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL MAHO DMC 80 U

General Data

Machine weight: 10,400 kg

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 600 mm

Table

Table load: 800 kg

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool holder (din 69871): sk 40
- - Clamping surface: 800 x 630 mm
- - Chip- to chip time: 7. 5 sec.
- - Center hole: 50 h6 mm
- - Clamping grid: 100 x 100 mm
- - Swivel range: 360 x 0. 001 mm
- - Turning speed max. : 13. 6 rpm
- - Pallet changing tent: 13 sec
- - Feed range: 10000 mm/min
- - Rapid traverse: 30 m/min
Qualitative Machine Benefits:
- - Installation dimensions l x w x h: 74 x 6. 7 x 2. 8 m
- - Spindle torque 40% ed: 130 nm
- - Drive performance (100/40% es): 10/15 kw
- - Automatic tool charger: atc 60
- - Automatic pallet charger-2 fold
- - Coolant device
- - Internal coal supply through the spindles 40 bar
- - Emulsion mist separation system
- - Heidenhain ts- 631 infrared probe
- - Electronic hand control panel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
