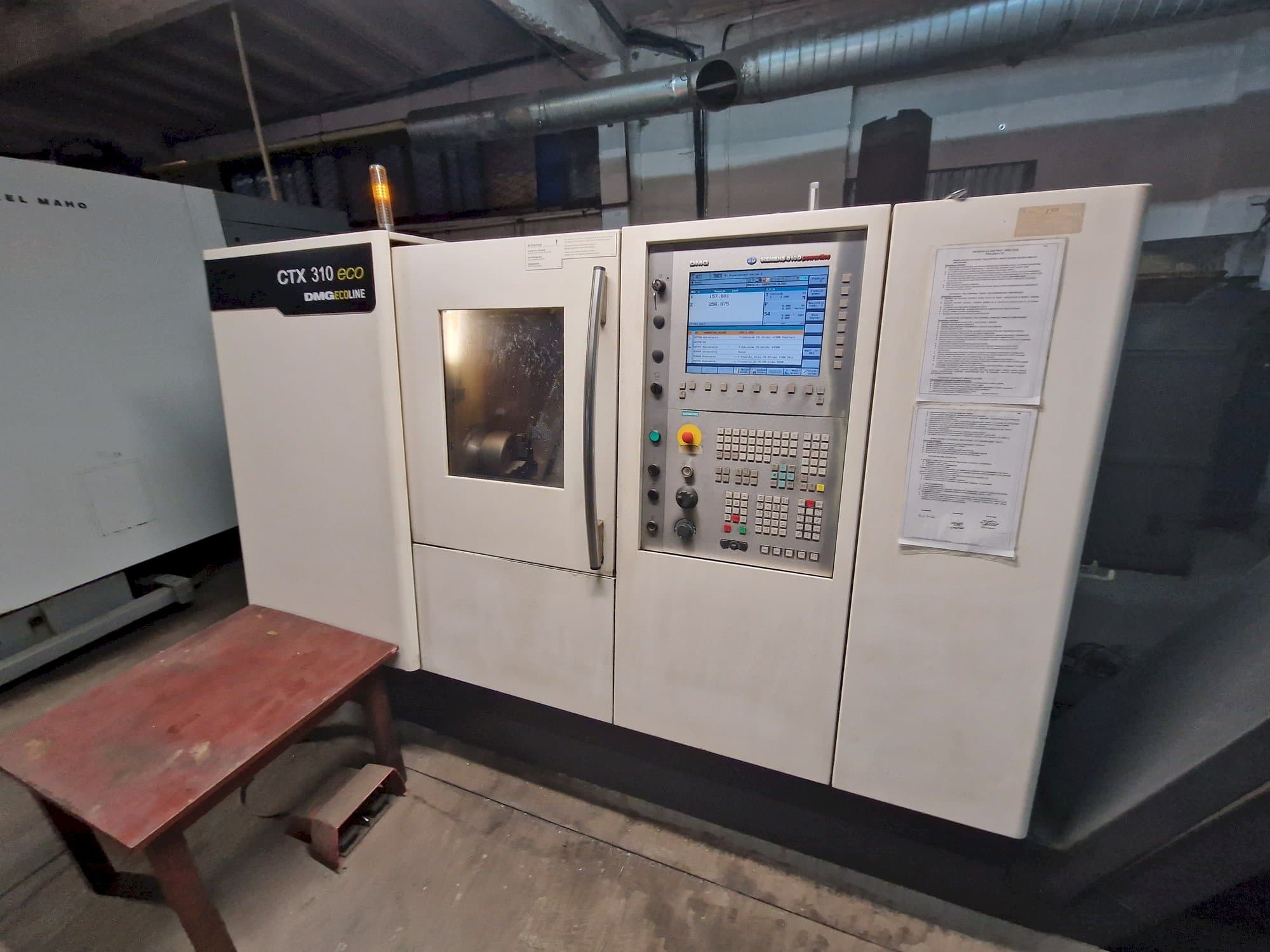

DMG CTX 310 lathe

Show in original language

This DMG CTX 310 lathe was made in Poland in the year 2009. It is equipped with a DMG panel with a Siemens 810D powerline control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: DMG
year: 2009
MODEL: CTX 310
application type: Turning
Location: Poland
machine type: Turn-Mill Centre

Technical Information - DMG CTX 310

Control Unit

Model: Siemens 810D

Main drive

Spindle speed range: 5000 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter: 330 mm
- - Max. Swing diameter above cross-guideway: 260 mm
- - Max. Turning diameter: 200 mm
- - Cross travel (x): 160 mm
- - Longitudinal travel (z): 450 mm
- - Bar capacity: 51 mm
- - Spindle diameter in the front bearing: 100 mm
- - Chucks: 210 mm
- - Max. Torque (40% / 100% dc): 166. 5(2) / 112(2) nm
- - Power output (40% / 100% dc): 16. 5(2) / 11(2) kw (ac)
Qualitative Machine Benefits:
- - Number of tool stations: 12
- - Shaft diameter (according to din 69880): 30 mm
- - Power output (40% dc) at 4000 rpm: 8. 4(2) kw
- - Max. Torque (40% dc): 20(2) nm
- - Max. Rotational speed: 4,500 rpm
- - Tailstock
- - Machine weight with a chip conveyor: 3,800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
