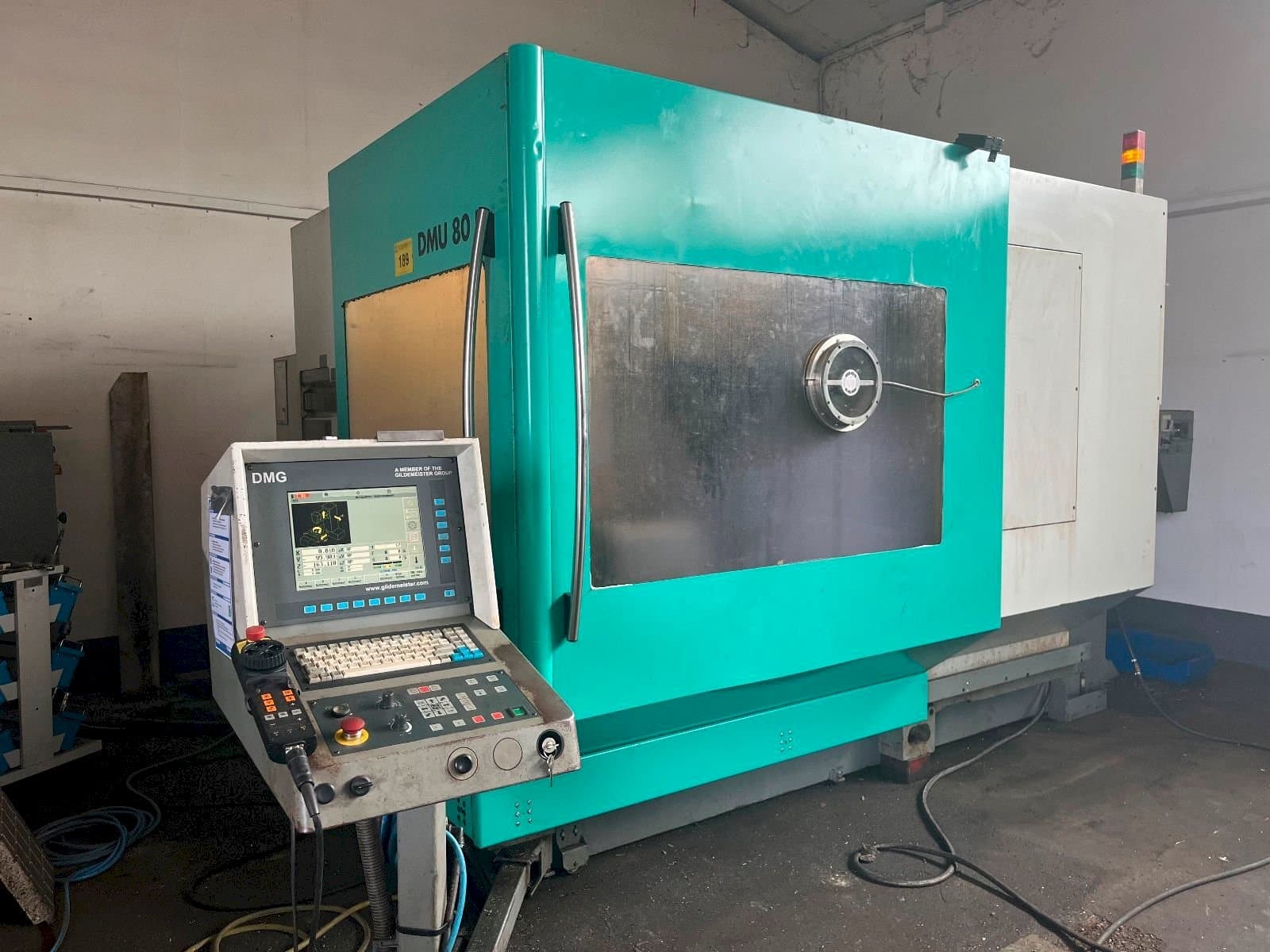

DMG Deckel Maho DMU 80 P Vertical Machining center

Show in original language

This DMG Deckel Maho DMU 80 P Vertical Machining Center was manufactured in the year 1999 and has 17530 spindle hours. It is equipped with a DMG MILL PLUS control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DMG
year: 1999
MODEL: Deckel Maho DMU 80 P
production hours: 34477
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - DMG Deckel Maho DMU 80 P

General Data

Measurements width: 4500 mm
Measurements depth: 3300 mm
Measurements height: 2600 mm
Machine weight: 9500 kg

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 700 MM
Z-AXIS Movement: 600 MM

Tools

Slots in storage: 40
Type of tool holder: SK-40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazin capacity of 60 slots
- - Tapper size = sk40
- - Total connection: 45 kva
- - Feed range x-, y- and z-axis: 20 - 10000 mm/min
- - C-axis: 1 - 3600 degrees/min
- - Incl. C-axis
- - A-axis: 1-2600 degrees/min
- - Measuring system: resolution in x-, y- and z-axis: 0. 001 mm
- - Incl. Nc swivel rotary table (a+c axis)
- - Diameter: 630 mm
Qualitative Machine Benefits:
- - Distance between t-slots: 63 mm
- - Workpiece weight: up to max. 7500 kg
- - Tool diameter: 100 mm
- - Max. Tool weight: 10 kg
- - Max. Tool weight in the magazine: approx. 200 kg
- - The machine is equipped with a chip conveyor, an automatic belt automatic belt filter and a hydraulic unit
- - Incl. Traverse for crane unloading
- - The machine is under power and can be inspected
- - Hydraulic vice
- - Hydraulic clamp for rotary table sk 50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
