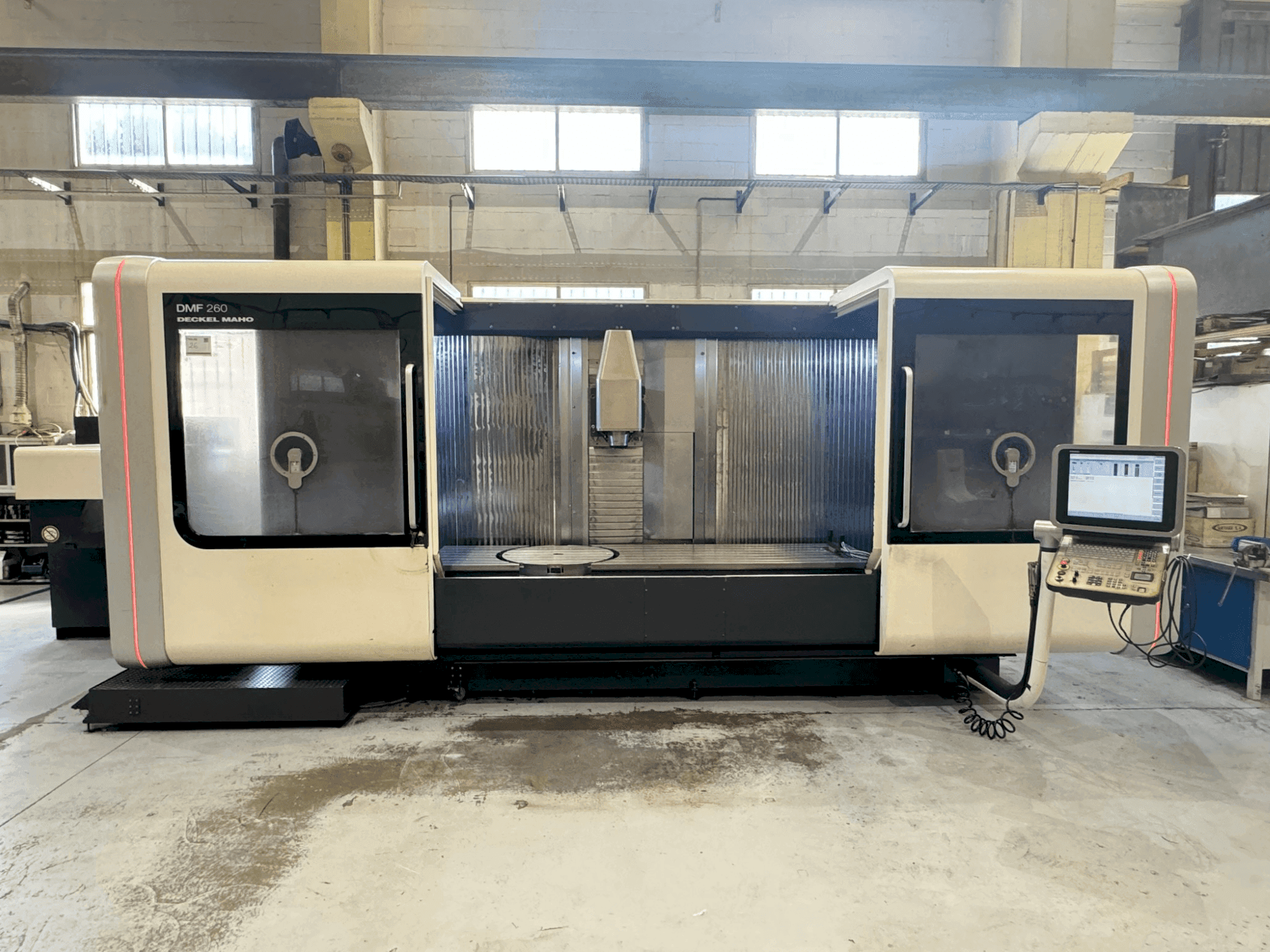

Front view of DMG MORI DMF 260/7 machine
Front view of DMG MORI DMF 260/7 machine

DMG MORI - DMF 260/7ES-MIL-DMG-2012-00001

£ 135,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DMG MORI DMF 260/7 vertical machining centre was manufactured in 2012. It features a HEIDENHAIN iTNC 530 control, a fixed table surface of 2,900 x 700 mm, and a rotary table Ø 730 mm with 360° rotation. The machine supports a maximum weight of 2,150 kg on the fixed table and 560 kg on the rotary table. It offers a longitudinal travel of 2,600 mm, transversal travel of 700 mm, and vertical travel of 700 mm. For more information about this vertical machining centre, please reach out to us.

Overview

  • brand: DMG MORI
  • year: 2012
  • MODEL: DMF 260/7
  • production hours: 10175
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMF 260/7

General Data

  • Machine weight: 16070 kg

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Number of spindles: 1
  • Spindle speed range: 20-800 rpm 1/MIN
  • Spindle motor power: 23.5/13.5 kW
  • Tool taper: SK 40 DIN 69872
  • Number of axis: 5

Movement

  • X-AXIS Movement: 2600 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 700 mm
  • B-AXIS Movement: ± 110° MM
  • C-AXIS Movement: 360° MM

Turret

  • Number of turrets: 1

Tools

  • Number of stations: 30
  • Max weight: 5 kg
  • Max tool diameter: 130 mm
  • Max tool length: 300 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Rotary table Ø 730 mm (Axis C) // Rotary encoder head
    • - Detachable 2-zone working separator
    • - Direct measurement system // Tool measurement LAER BLUM
    • - Spindle cooling / Col. 1
    • - Longitudinal chip conveyor
    • - 2 front windows
    • - Leveling pilots
    • - Portable handwheel
    • - DMG 3D quickSET (for checking and dynamic correction of the machine tool accuracy in 5 axes)
    • - DMG Mori PP60 PowerProbe 50 optical probe (Renishaw OMP60)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum weight on fixed table: 2,150 kg
        • - Maximum weight on integrated rotary table: 560 kg
        • - Tool change time: 7. 6 s

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
