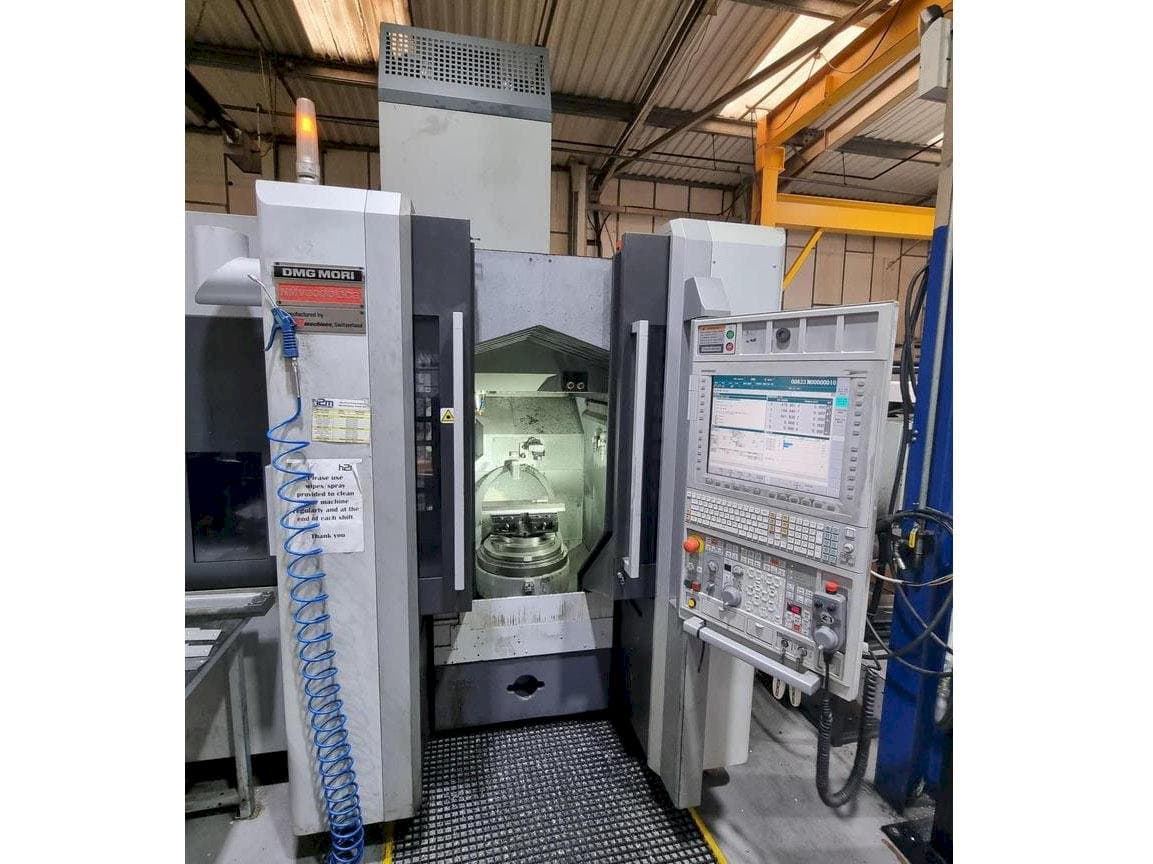

Front view of DMG MORI NMV3000 DCG machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI NMV3000 DCG

Photo Gallery

DMG MORI - NMV3000 DCGGB-MIL-DMG-2014-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI NMV3000 DCG Vertical Machining Center

Show in original language

This DMG MORI NMV3000 DCG Vertical Machining Center was manufactured in the year 2014 in Switzerland. It has 5 axis and counts with 16667 production hours. It operates with a DMG MORI MAPPS IV control unit and can perform with a spindle speed up to 12000 rpm. Includes a chip conveyer and presents a good condition.

Overview

brand: DMG MORI
year: 2014
MODEL: NMV3000 DCG
production hours: 16667
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre

Technical Information - DMG MORI NMV3000 DCG

General Data

Measurements width: 2339 mm
Measurements depth: 3820 mm
Measurements height: 3250 mm
Machine weight: 9400 kg

Control Unit

Model: MAPPS IV

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 100 kg

Table

Outer length: 350 mm

Tools

Slots in storage: 21
Max weight: 8 kg
Max tool diameter: 90/125 mm
Max tool length: 300 mm
Type of tool holder: BT40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good condition

Technical Machine Benefits

C axis 360 degrees (0. 001 degree)
B axis travel +160 ~ -180 degrees
Pallet size 350mm
Spindle motor power 18. 5/15kw
Rapid feedrates xyz: 50 x 50 x 40m/minute
Min - max height under spindle 150 - 660mm
Through spindle coolant, swarf conveyor, coolant, interlocked guards, low volt light, remote hand wheel, linear scales

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
