Doosan DNM 350/5AX

Show in original language

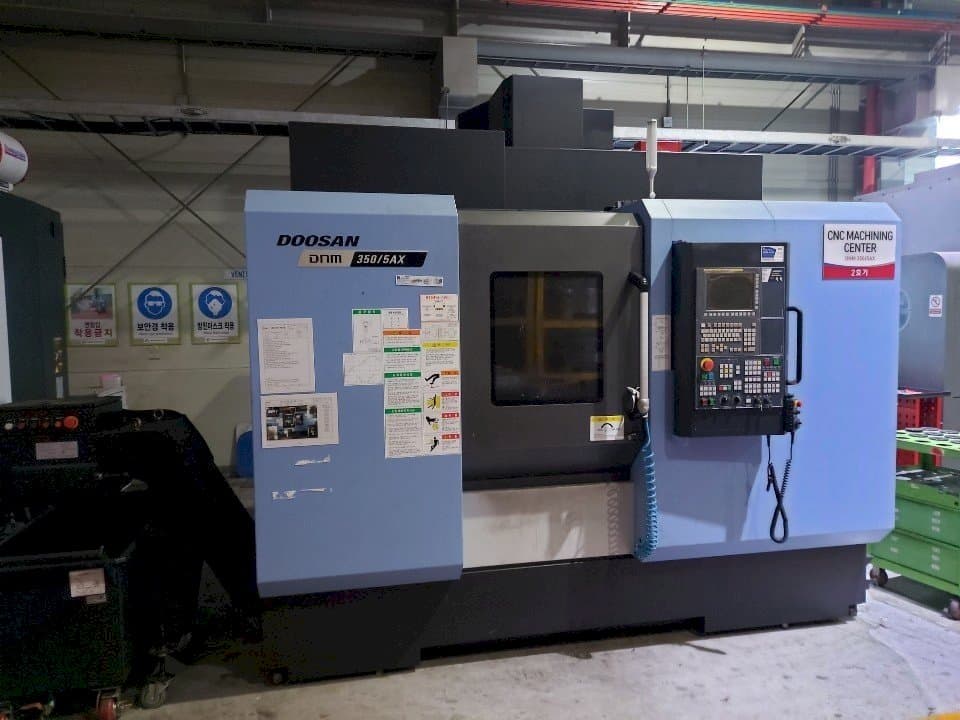

This Doosan DNM 350/5AX Universal Machining Center was manufactured in 2017 in Korea. This 5 axis machine is operated through a FANUC Series 31i-MODEL B5 control unit. It works with a spindle speed up to 20000 rpm and a table size Φ 350 mm. This machine includes its manual books. There are 2 units available.

Overview

brand: DOOSAN
year: 2017
MODEL: DNM 350/5AX
application type: Milling
Location: South Korea
machine type: Universal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 350/5AX

General Data

Machine weight: 8500 KG

Control Unit

Model: SERIES 31I-MODEL B5
Brand: FANUC

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 655 mm
Z-AXIS Movement: 500 mm

Table

Table load: 250 kg

Tools

Type of tool holder: BT40

Media

Main electronic connection: 220 V 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A deg : 150 (+30 ~ -120); c deg : 360
- - Max. Workpiece swing diameter x height : Ø 400 x 335 mm
- - Table size: Ø350 mm
- - Oil cooler
- - Direct spindle type
- - Magazine tool capacity: 30ea
- - Linear scale (x, y, z, a, c)
- - Automatic tool measurement
- - Guideway type: lm guide; call right (led 3 step)
- - Mpg handle; ce mark
Qualitative Machine Benefits:
- - Manual books

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
