DOOSAN DNM 5700

Photo Gallery

DOOSAN - DNM 5700GB-MIL-DOO-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

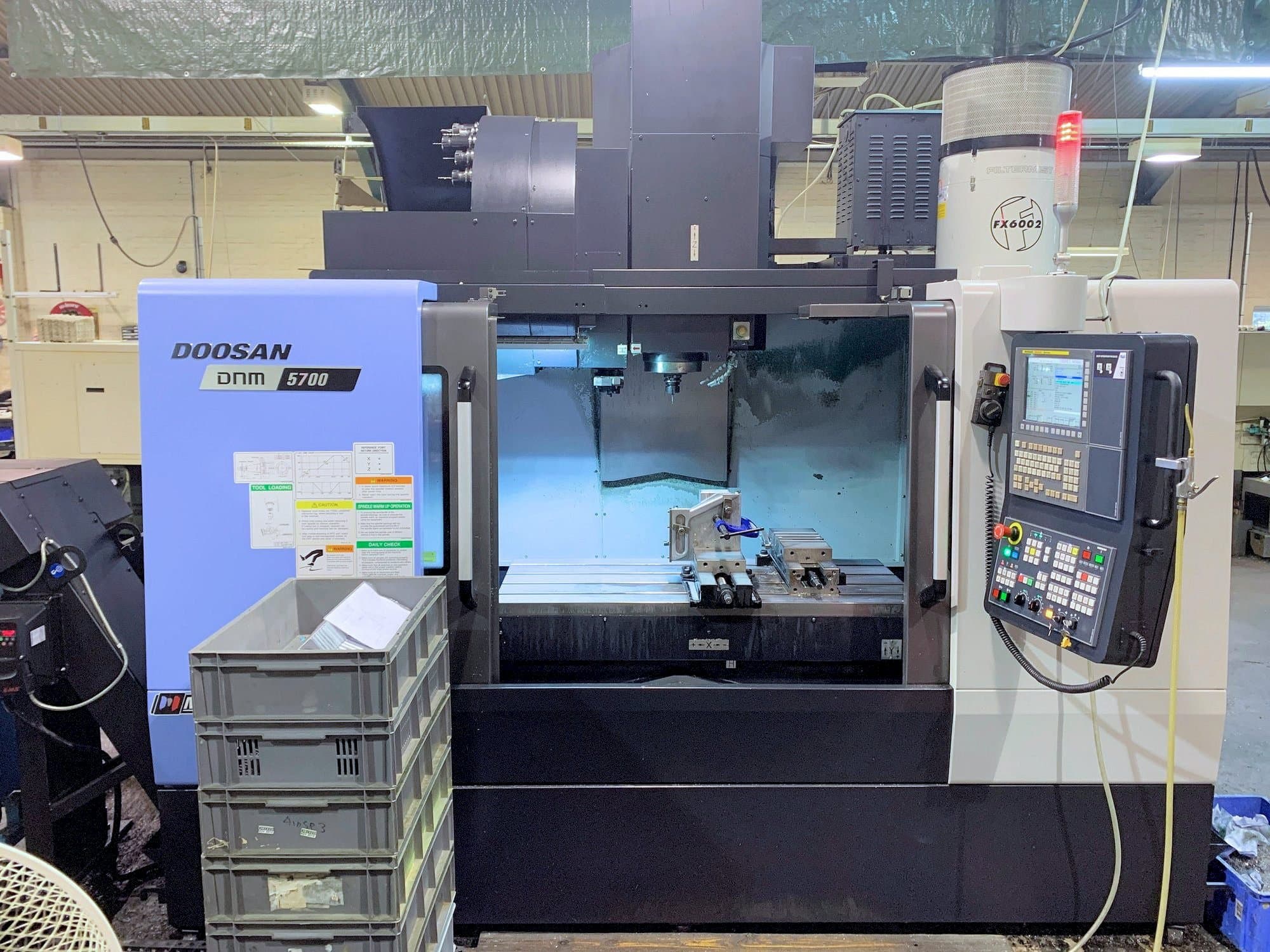

This Doosan DNM 5700 Vertical Machining Center was manufactured in South Korea in the year 2016. It has a record of 6637 power on hours, of which 2564 are running time and 1706 are cutting hours. It is equipped with a DOOSAN-FANUC i Series control unit. This 3 axis machine can work with a spindle speed of 12000 rpm. It comes with a programmable coolant nozzle and a mist extractor. This machine is in good condition.

Overview

brand: DOOSAN
year: 2016
MODEL: DNM 5700
production hours: 6637
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

General Data

Measurements width: 4155 mm
Measurements depth: 2221 mm
Measurements height: 2985 mm
Machine weight: 6500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 1050 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 570 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1300 mm
Outer width: 570 mm

Tools

Slots in storage: 30
Max tool diameter: 80/125 (next empty) MM
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Main electronic connection: AC 415 V 50/60 HZ
Power consumption: 30 KVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good condition

Technical Machine Benefits

Min-max height under spindle 150-660 mm
Through spindle coolant
Programmable coolant nozzle
Mist extractor
Coolant
Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
