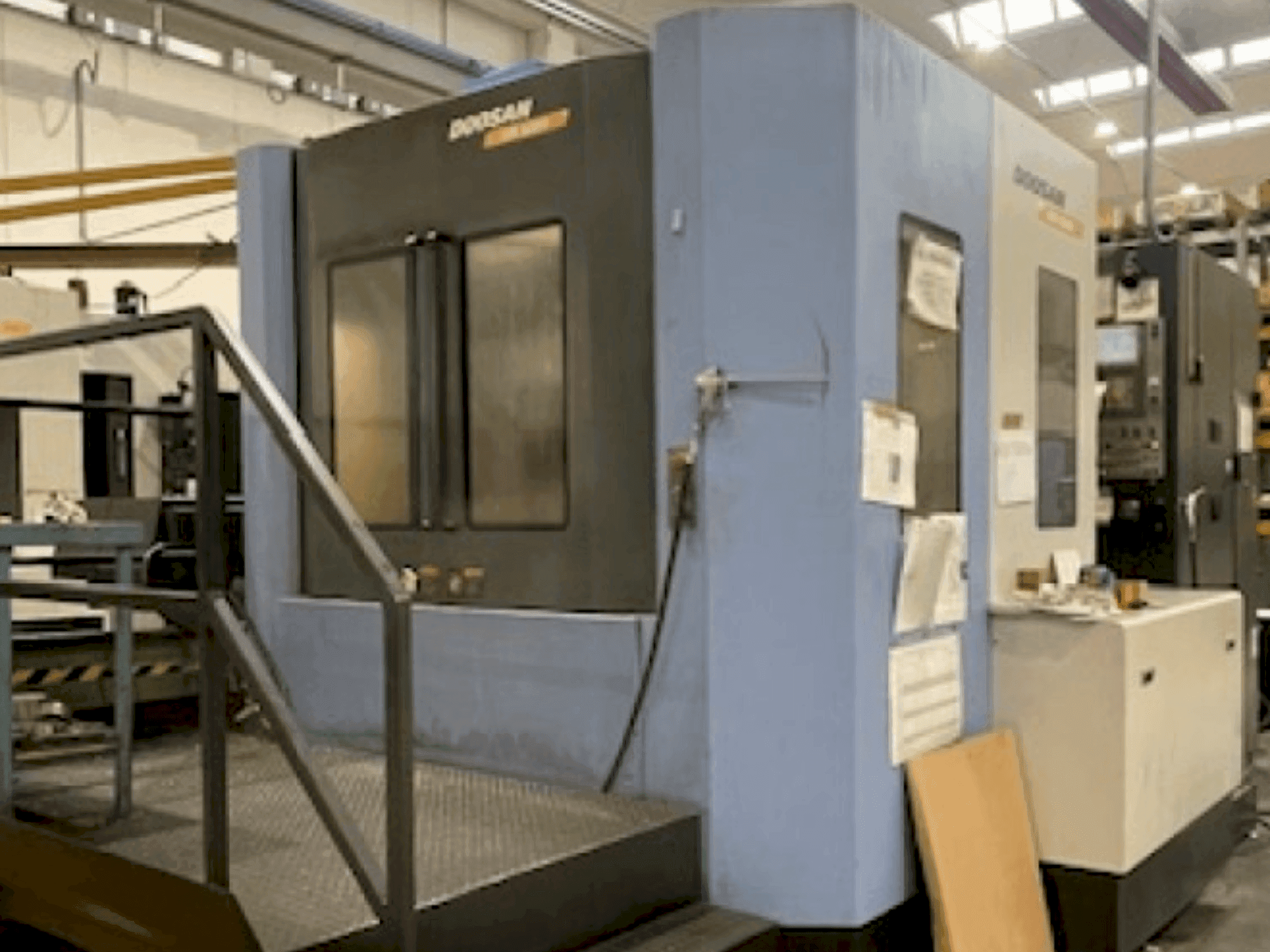

➤ Used DOOSAN HM 6300 - 2009 - Horizontal machine centre

Show in original language

The DOOSAN HM 6300 is a 4-axis horizontal machining centre from 2009 with a CNC FANUC 31i-Mod.A control unit. It offers expansive axis movement: 1000 mm on X, 800 mm on Y, and 850 mm on Z, with rapid 48 m/min travel. The two 630 x 630 mm pallets, with a 1° indexing and 180° rotary change, support 1,200 kg each. The spindle, powered by a 30 kW motor, reaches 6000 rpm, and the 60-position tool chain accommodates various tool sizes. Accessories include a chip conveyor, Renishaw predisposition, and a high-pressure coolant system. Contact us for more details.

Overview

brand: DOOSAN
year: 2009
MODEL: HM 6300
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HM 6300

Control Unit

Control Brand: FANUC
Control Model: 31i–Mod.A

Dimensions

Machine Weight: 21000 kg

Movement

Number of Axes: 4
X-axis Travel: 1000 mm
Y-axis Travel: 800 mm
Z-axis Travel: 850 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 600 RPM

Additional Information

Additional equipment

2 Pallets (dimensions 630 x 630 mm, indexing: 1°, change type: 180° rotary, weight allowed on the pallet: 1,200 kg)
Renishaw predisposition
Remote electronic handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
