Matsuura - MAM 72-100HIT-MIL-MAT-2016-00001

Name: Matsuura MAM 72-100H
Brand: Matsuura
SKU: IT-MIL-MAT-2016-00001
Price: 260200 GBP
Availability: InStock

£ 260,200

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matsuura MAM 72-100H For Sale | gindumac.com

Show in original language

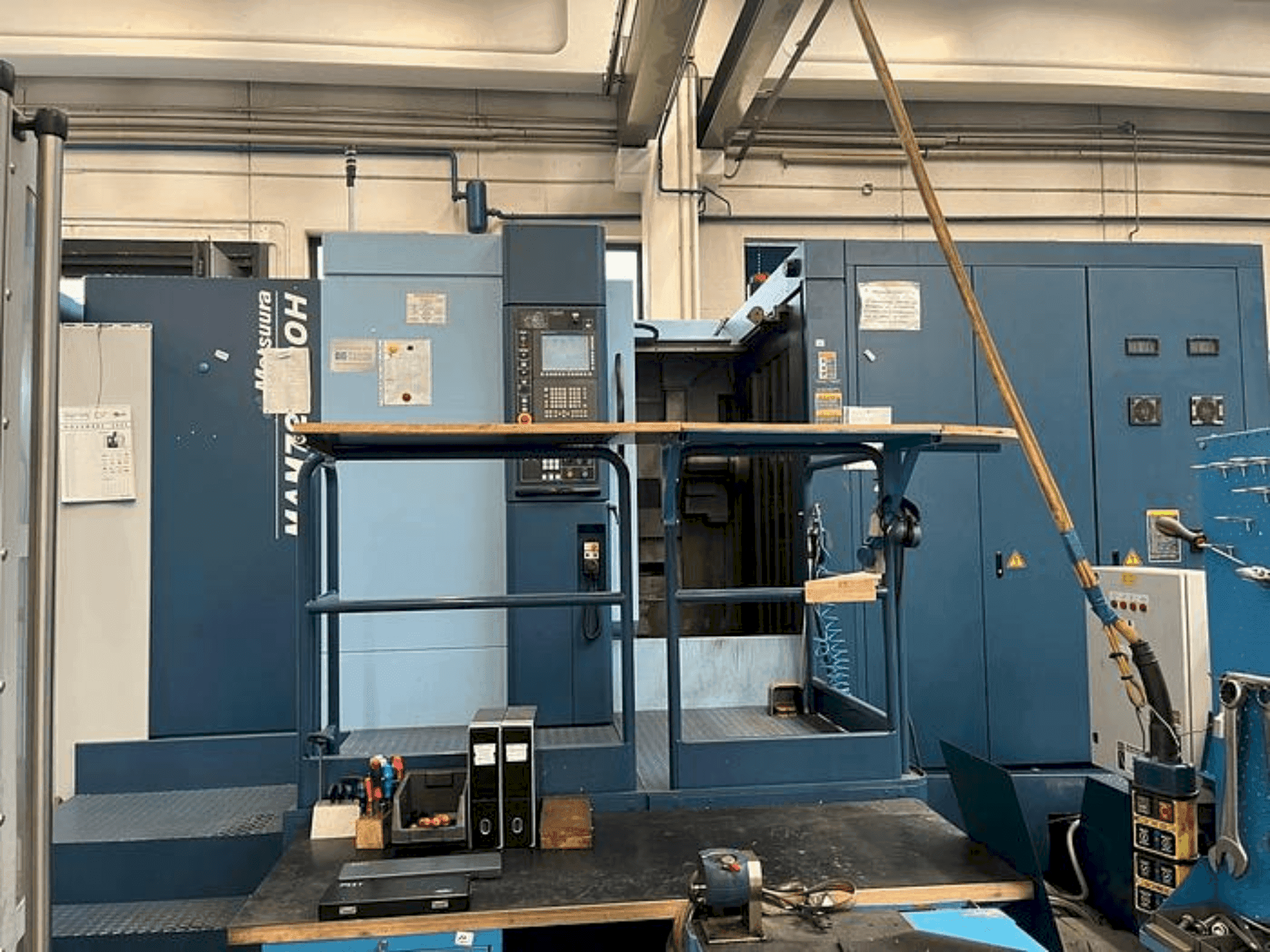

This 5-axis Matsuura MAM 72-100H was manufactured in 2016, offering advanced capabilities for efficient and precise machining. Ideal for complex parts, this horizontal machining centre is a robust addition to any production line. Consider the opportunity to buy this Matsuura MAM 72-100H horizontal machining centre. Contact us for more information.

Overview

brand: Matsuura
year: 2016
MODEL: MAM 72-100H
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Matsuura MAM 72-100H

General Data

Measurements width: 3415 mm
Measurements depth: 6015 mm
Measurements height: 3500 mm

Movement

X-AXIS Movement: 1050 MM
Y-AXIS Movement: 920 MM
Z-AXIS Movement: 960 MM
A-AXIS Movement: +30°～-120° MM
B-AXIS Movement: ±360° MM

Table

Outer length: 630 mm
Outer width: 630 mm

Media

Chip conveyor: Yes

Additional Equipment

- Tool Magazin: ATC 240 positions
- Air Cleaner: AR Filtrazioni
- Equipment: Chip conveyor, Laser tool presetting

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feed x-y: 60 m/min / rapid feed z: 50 m/min / rapid feed a-b: 50-75 rpm
- - Max work size: Ø 1000 mm x h 770 mm
- - Loading capacity: 780 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
