DOOSAN HP 4000 II

Photo Gallery

DOOSAN - HP 4000 IIDE-MIL-DOO-2017-00009

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN HP 4000 II For sale | gindumac.com

Show in original language

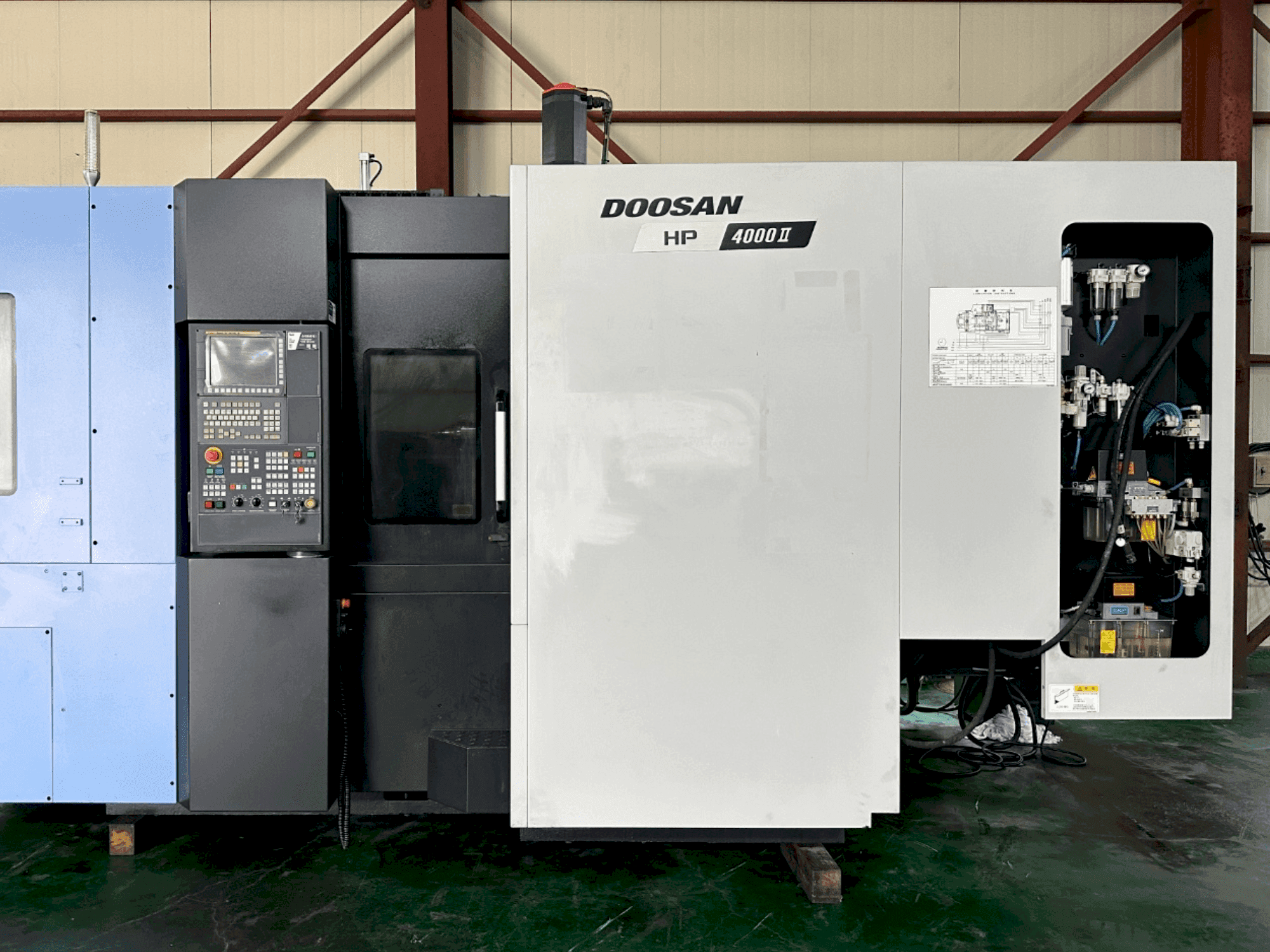

This horizontal machining center was manufactured in 2017. Equipped with a Fanuc 31i-B control, it features a spindle speed of 20,000 RPM and a through-spindle coolant system. The dual table setup, each measuring 400x400 mm, supports a load of up to 400 kg. Additional features include a 40 ATC, chip conveyor, and Doosan tool load monitoring. For more information about this horizontal machining center, please reach out to us.

Overview

brand: DOOSAN
year: 2017
MODEL: HP 4000 II
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HP 4000 II

Control Unit

Brand: FANUC
Model: 31i-B

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 1.5 kW
Tool taper: HSK-A63

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 400 mm
Outer width: 400 mm
Table load: 400 kg

Additional Equipment

- Dual table
- Bucket
- Used HSK-A63 tools
- Shower coolant
- Air blower
- Doosan tool load monitoring
- Chip conveyor
- Hydraulic jig line
- Tower lamp
- English manual books

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Aicc 200 blocks, high spindle rpm, through spindle coolant
- - Indexing c-axis: 1º
Qualitative Machine Benefits:
- - High precision tool taper, dual table configuration

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
