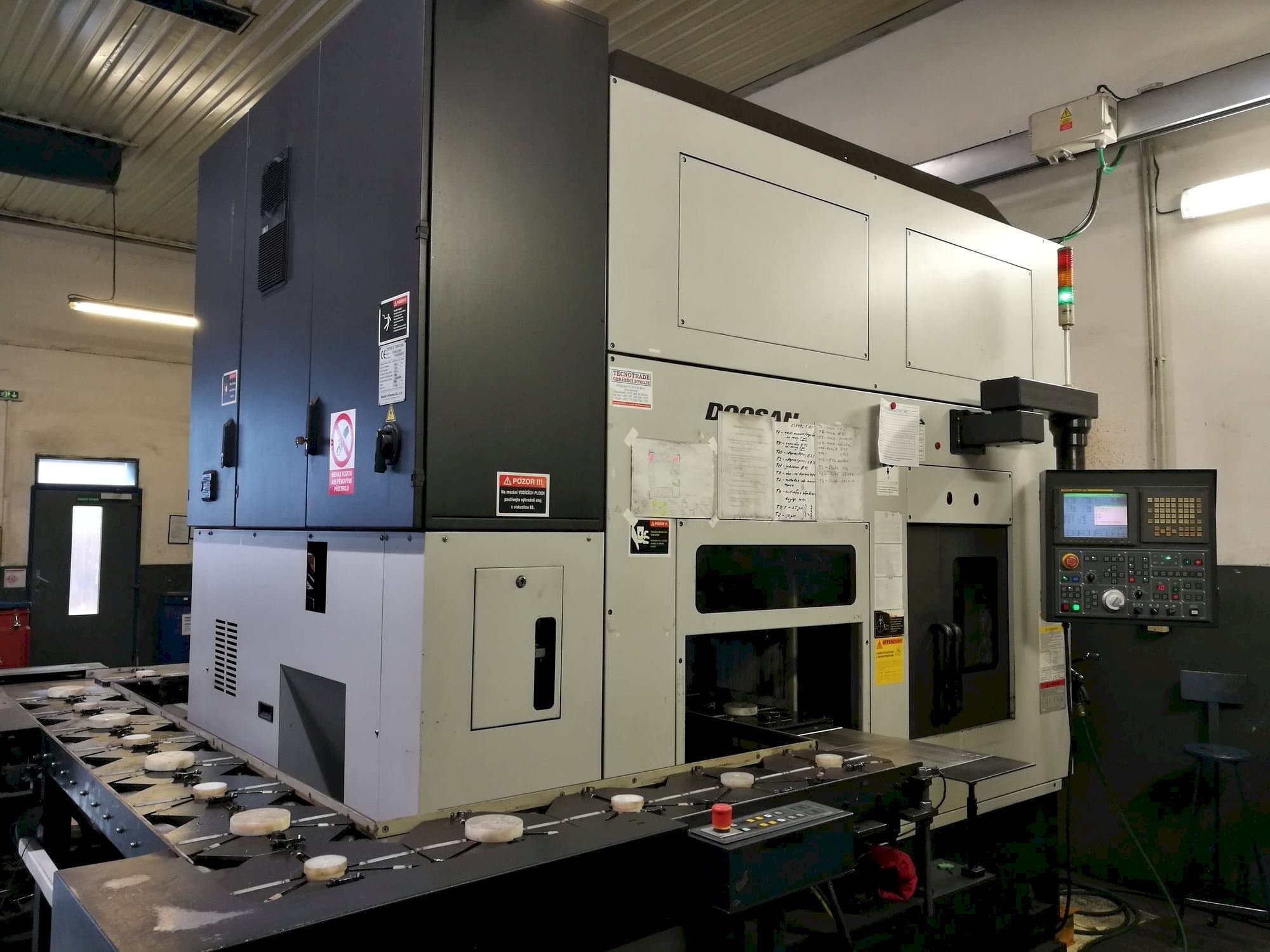

Front view of Doosan Puma Inverturn 3000M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Puma IV30M

Photo Gallery

DOOSAN - Puma IV30MCZ-TUR-DOO-2007-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Puma IV30M Lathe

Show in original language

This Doosan IV30M Lathe Machine was manufactured in 2007 in South Korea. This 4 controlled axes machine has 24321 working hours. The machine can work with a spindle speed up to 3300 rpm. It is in very good condition and has low hours.

Overview

brand: DOOSAN
year: 2007
MODEL: Puma IV30M
production hours: 24321
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold

Technical Information - DOOSAN Puma IV30M

General Data

Measurements width: 3050 mm
Measurements depth: 2024 mm
Measurements height: 2960 mm
Machine weight: 9000 kg

Main drive

Number of spindles: 1
Spindle speed range: 3300 1/MIN

Movement

X-AXIS Movement: 1250 mm
Z-AXIS Movement: 360 mm

Tools

Slots in storage: 12

Media

Power consumption: 48 kVA

Additional Equipment

- Set of tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter: 400 mm
- - Chuck diameter: 304 mm
- - Max. Turning diameter 320 mm
- - Max. Turning length 200 mm
- - Spindle nose a2#8
- - C axis 360/0. 001 degree
- - Milling spindle speed 40-4000 rpm
- - Main spindle motor 22/15 kw
- - Automatic feeding line system
- - Turret 12 positions (all driven)
Qualitative Machine Benefits:
- - Very good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
