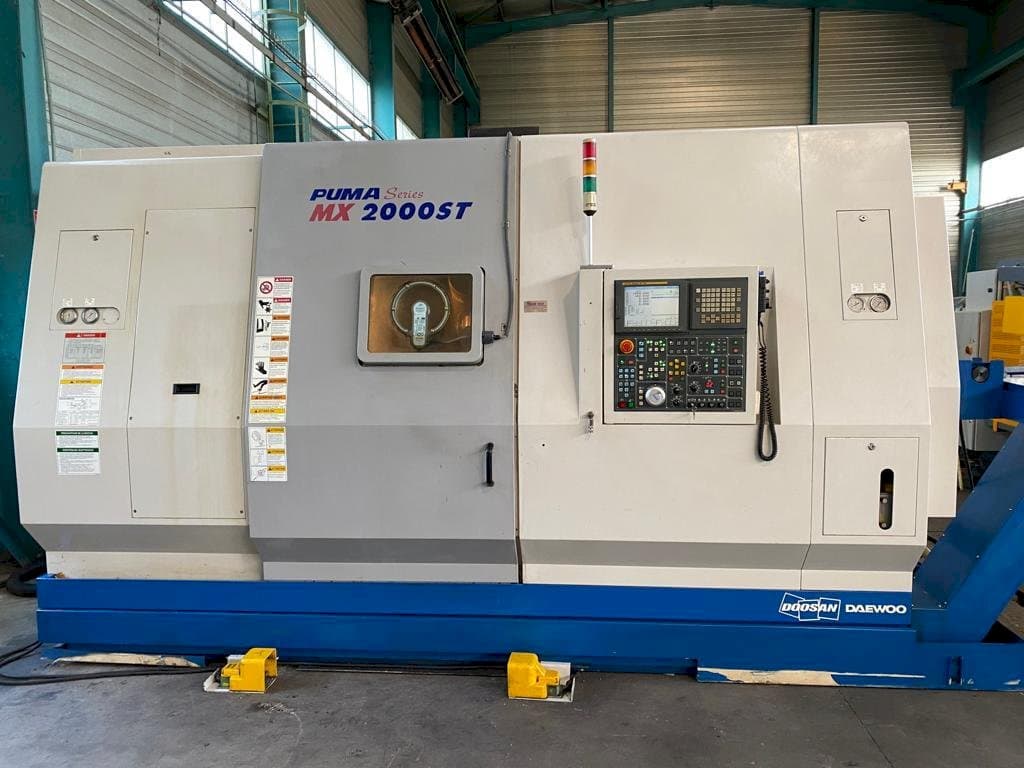

Doosan PUMA MX 2000 ST

Show in original language

This Doosan MX 2000 ST twin spindle MILL TURNING CENTER was put into commissioning in 2007. It has a record of 19500 working hours. It is operated through a FANUC Series 18i-TB control unit. This 9 axis machine works with a milling rotation speed up to 10000 rpm, and a spindle and counter spindle Rotation speed up to 5000 rpm. It includes several equipment as measuring arm tools and a part recuperator with a side evacuation belt. This machine comes with its complete documentation.

Overview

brand: DOOSAN
year: 2007
MODEL: PUMA MX 2000 ST
production hours: 19500
application type: Turning
Location: France
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA MX 2000 ST

General Data

Measurements width: 4500 MM
Measurements depth: 2500 MM
Measurements height: 2600 mm
Machine weight: 12300 kg

Control Unit

Model: Series 18I-TB
Brand: FANUC

Main drive

Number of spindles: 2
Spindle speed range: 10000 1/MIN
Spindle motor power: 15 kW
Spindle bore: 66 mm
Tool taper: CAPTO C6 cone
Number of axis: 9

Movement

Y-AXIS Movement: - 80 mm

Turret

Max tool length: 25 x 25 mm

Tools

Max tool length: 300 mm

Media

Power consumption: 66 kVA
Chip conveyor: Yes

Additional Equipment

- High pressure watering
- Measuring arm tools
- Part recuperator with side evacuation belt
- Set of tool holders for milling spindle Tool holder set for turret

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 9 controlled axes x1x2-y1y2-a-b-c1 / c2-y
- - Ø admitted above the bench 750 mm
- - Ø admitted above the carriage 600 mm
- - Max turning Ø 550 mm
- - Turning Ø without interference 210 mm
- - Bar turning Ø 65 mm
- - Maximum turning length 1020 mm
- - Spindle & counter-spindle: 2 mandrels ø 210 mm; spindle nose a2-6 ‘'; spindle bore 66 mm
- - Spindle & counter-spindle: rotation speed 5000 rpm; unit power 22 kw; c1 / c2 axes 360000 ° (continuous rotation)
- - Milling spindle: tool changer 40 stations with gripper arm; tool change time 1, (second) b axis 360 ° 30 °; increment (spindle tilt)
Qualitative Machine Benefits:
- - Turret: 12 positions; milling rotation speed 4000 rpm
- - Year of commissioning 2007 first hand
- - Complete documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
