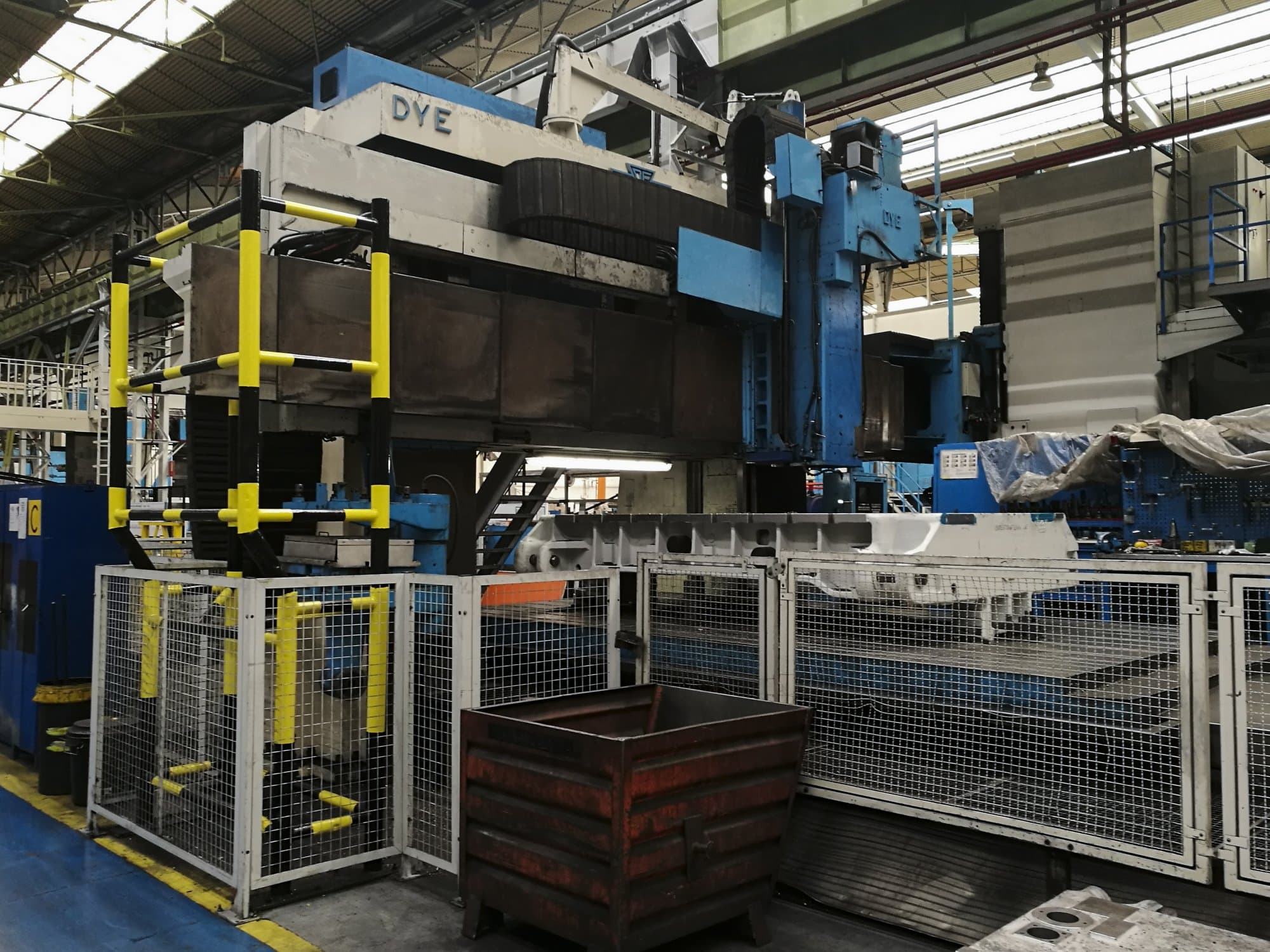

DYE FPF-4-N/C Milling Machine

Show in original language

This DYE FPF-4-N/C Milling Machine was built in 1982, and has a working history of approximately 65000 production hours. This machine is equipped with a NUM 760 Control unit and provides all the advantages that come with a bridge milling machine. Furthermore, this equipment is very robust and stands in an excellent condition due to the maintenance it has received in the past.

Overview

brand: DYE
year: 1982
MODEL: FPF-4-N/C
production hours: 65000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre

Technical Information - DYE FPF-4-N/C

General Data

Measurements width: 13000 mm
Measurements depth: 4660 mm
Measurements height: 6450 mm

Control Unit

Model: 760

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/min
Spindle motor power: 38 kW
Tool taper: ISO 50

Movement

X-AXIS Movement: 4500 mm
X-AXIS Feed Force: 32 Nw/m
X-AXIS Rapid traverse: 5000 mm/min
Y-AXIS Movement: 3500 mm
Y-AXIS Feed Force: 32 Nw/m
Y-AXIS Rapid traverse: 5000 mm/min
Z-AXIS Movement: 1700 mm
Z-AXIS Feed Force: 32 Nw/m
Z-AXIS Rapid traverse: 5000 mm/min

Workpiece

Workpiece weight: 45000 kg

Table

Outer length: 4500 mm
Outer width: 3000 mm
Number of tslots: 12
Distance between: 260 mm
Min distance between vertical spindle and table: 0 mm
Max distance between vertical spindle and table: 1700 mm

Media

Main electronic connection: 220 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
