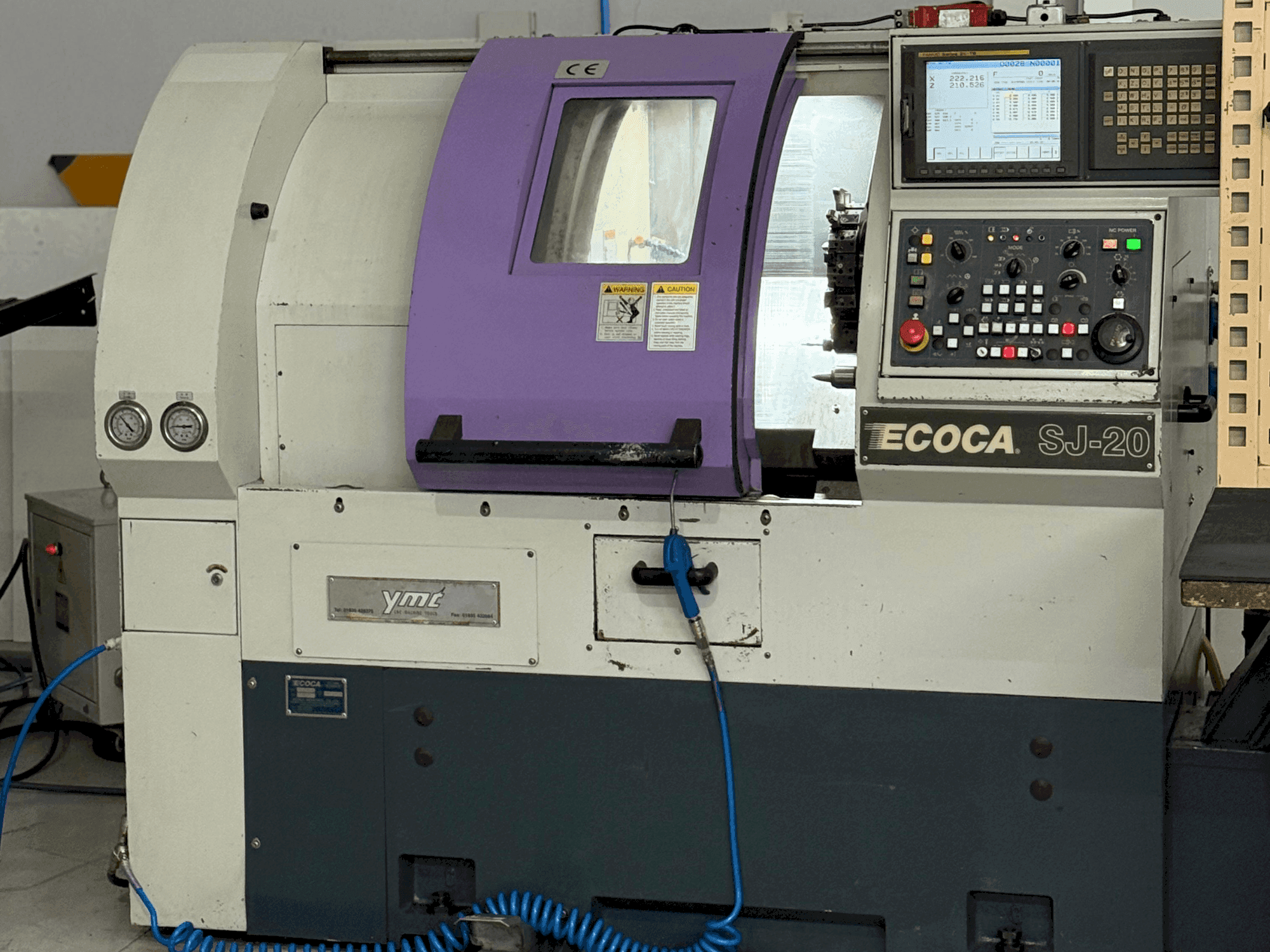

ECOCA SJ-20 Lathe

Show in original language

This ECOCA SJ-20 Lathe was manufactured in Taiwan in 2007 and counts a total of approximately 9000 working hours. Operated through a SIEMENS SINUMERIK 802D SL Control unit, this machine has mainly worked with steel, aluminium and plastic during the past and comes with a bundle of additional equipment.

Overview

brand: ECOCA
year: 2007
MODEL: SJ-20
production hours: 9000
application type: Turning
Location: Croatia
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - ECOCA SJ-20

General Data

Measurements width: 1450 mm
Measurements depth: 1800 mm
Measurements height: 2000 mm
Machine weight: 3300 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 802D SL

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 5.5 kW
Number of axis: 2

Movement

X-AXIS Movement: 142 mm
Z-AXIS Movement: 325 mm

Workpiece

Workpiece drm over bed: 360 mm
Workpiece drm over support: 225 mm
Workpiece x: 222 mm
Workpiece z: 280 mm

Turret

Number of turrets: 1

Tools

Max weight: 50 kg
Max tool diameter: 32 mm

Media

Main electronic connection: 380 V
Power consumption: 21 kVA
Chip conveyor: Yes

Additional Equipment

- Automatic tool changer with 8 tool slots
- 8x Tool holder
- Hydraulic chuck (169 mm drm)
- Tailstock
- Renishaw tool setter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 225 mm
- - Max turning length: 320 mm
- - Hydraulic chuck: 6″
- - Guideways: linear on x and z axes
- - Rapid traverse: 24 m/min
- - Positioning accuracy: ±0. 005 mm
- - Repeatability: ±0. 002 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
