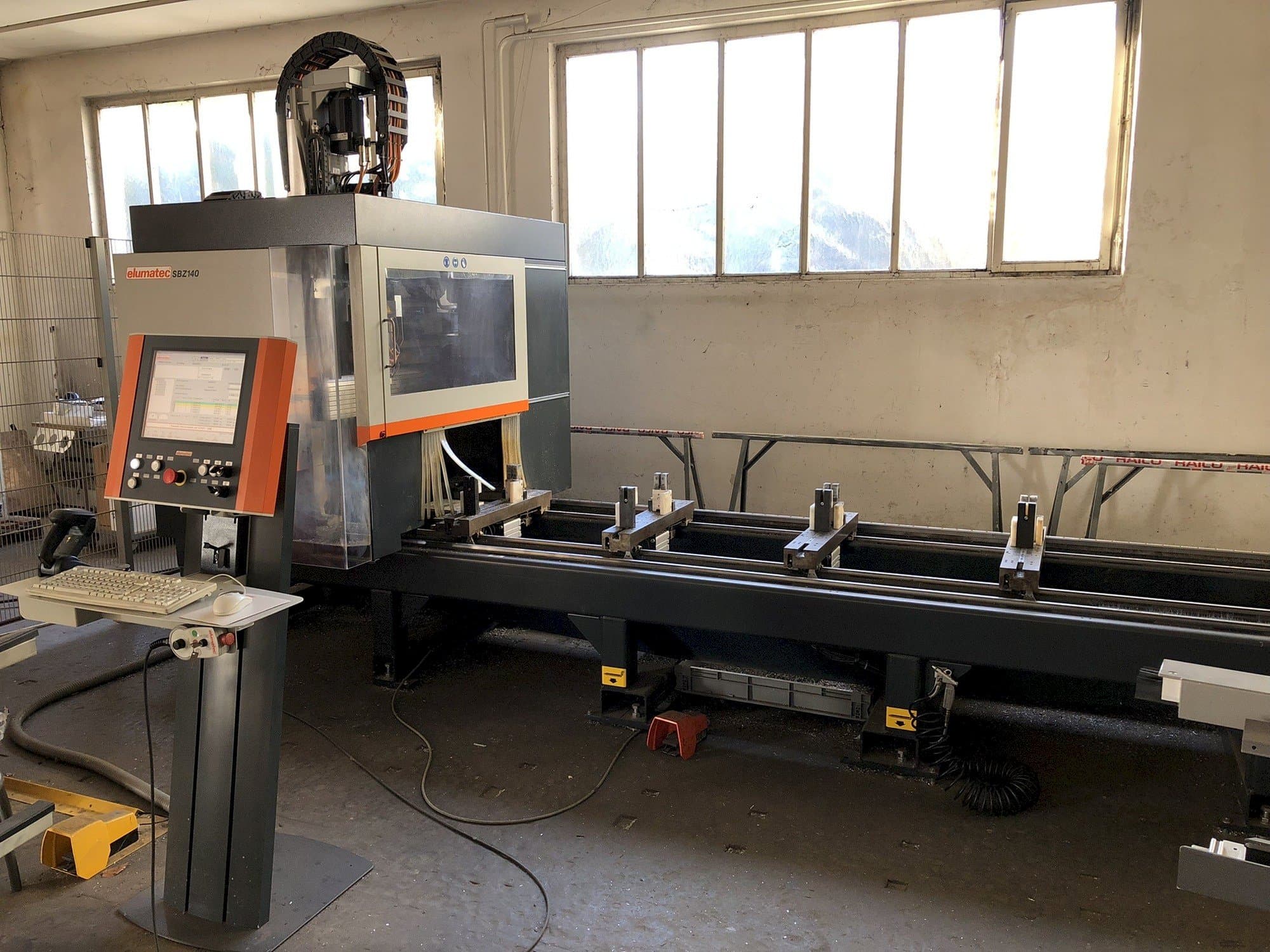

Front view of Elumatec SBZ 140/60 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Elumatec SBZ 140/60

Photo Gallery

Elumatec - SBZ 140/60DE-MIL-ELU-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
elumatec SBZ 140/60 Milling machine

Show in original language

This elumatec SBZ 140/60 Milling machine was manufactured in the year 2013 in Germany and has 2312 hours, of which 418 are spindle hours. It is equipped with an elumatec control unit and has 4 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: Elumatec
year: 2013
MODEL: SBZ 140/60
production hours: 2312
application type: Milling
Location: Germany
machine type: CNC Milling Machine

Technical Information - Elumatec SBZ 140/60

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 9,5 kW
Number of axis: 4

Media

Main electronic connection: 400 V/ 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel x - axis 6400 mm, 7600 mm, 9700 mm
- - Traverse path y-axis 850 mm, 65 m/min
- - Tool changer 8 tools, further tool places on request
- - Traverse path z-axis 650 mm
- - Swivel angle a - axis 0 - 180 ° freely programmable in 1/10° steps
- - Compressed air connection 7 bar
- - Air consumption per minute 180 l with spraying
- - Clamping device for double bar machining
- - Chip conveyor belt
- - Barcode scanner
Qualitative Machine Benefits:
- - Stationary tool magazine
- - Angular milling heads
- - Network connection pc - control
- - Tool holders
- - Collet chuck
- - Collets
- - Tools
- - Elucad (office software package for optimised production management)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
