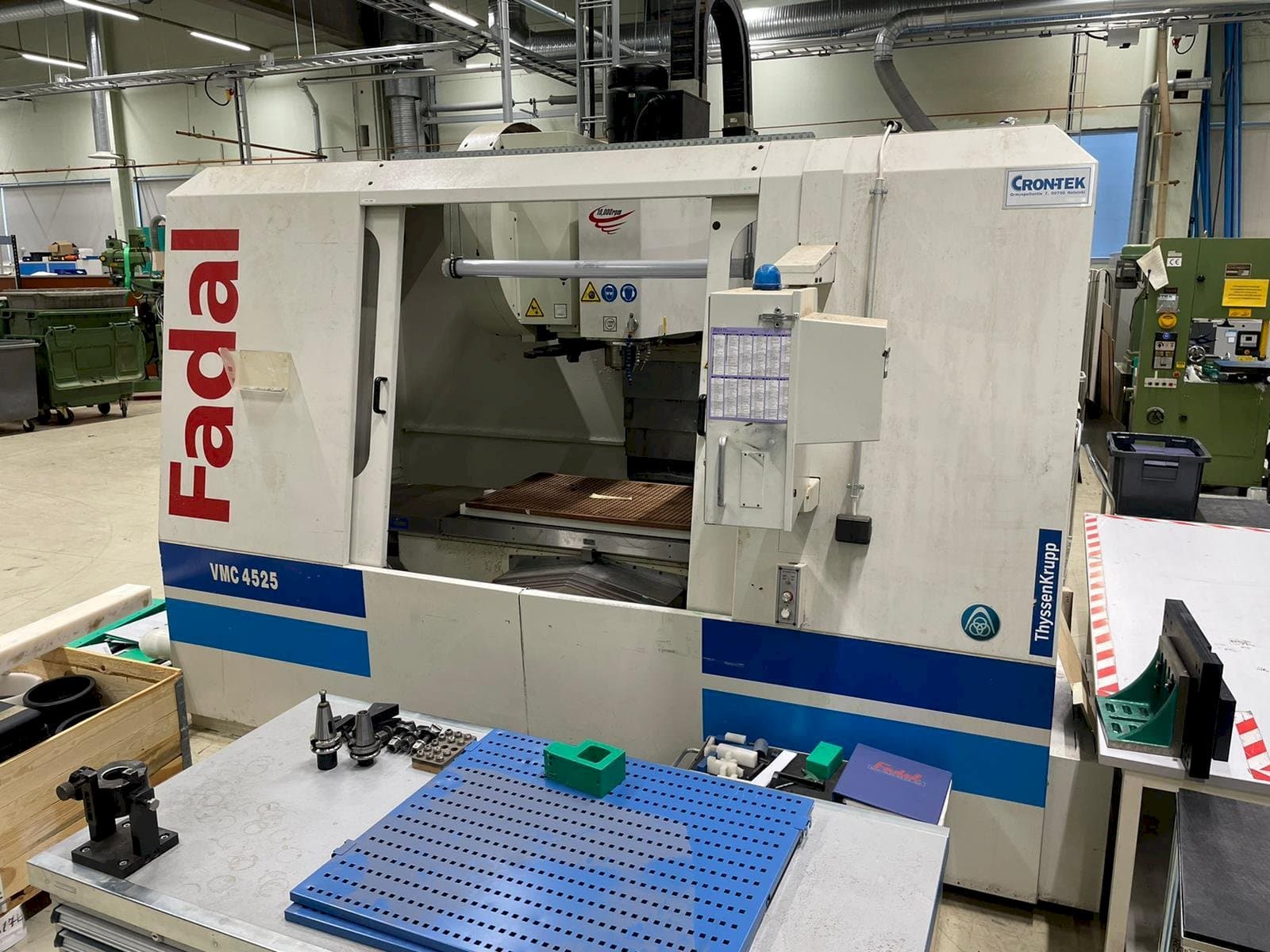

FADAL VMC 4525 HT Vertical Machining Center

Show in original language

This FADAL VMC 4525 HT Vertical Machining Center was manufactured in 2003 in the United States. Equipped with a FADAL CNC 88HS Control unit. This 3 axis machine can operate with a speed up to 10000 rpm.

Overview

brand: FADAL
year: 2003
MODEL: VMC 4525 HT
application type: Milling
Location: Finland
machine type: Vertical Machining Centre

Technical Information - FADAL VMC 4525 HT

General Data

Measurements width: 3250 mm
Measurements depth: 2286 mm
Measurements height: 3048 mm
Machine weight: 6300 kg

Control Unit

Model: CNC 88HS

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 7.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 1143 mm
Y-AXIS Movement: 635 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1220 mm
Outer width: 510 mm

Tools

Slots in storage: 21

Media

Main electronic connection: 400 V
Power consumption: 21 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine guideway box type
- - Operator manuals/maintenance manuals hardcopy available included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
