Feeler - NBP 1000ADE-MIL-FEE-2016-00002

Name: Feeler NBP 1000A
Brand: Feeler
SKU: DE-MIL-FEE-2016-00002
Price: 33850 GBP
Availability: InStock

£ 33,850

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Feeler NBP 1000A For Sale | gindumac.com

Show in original language

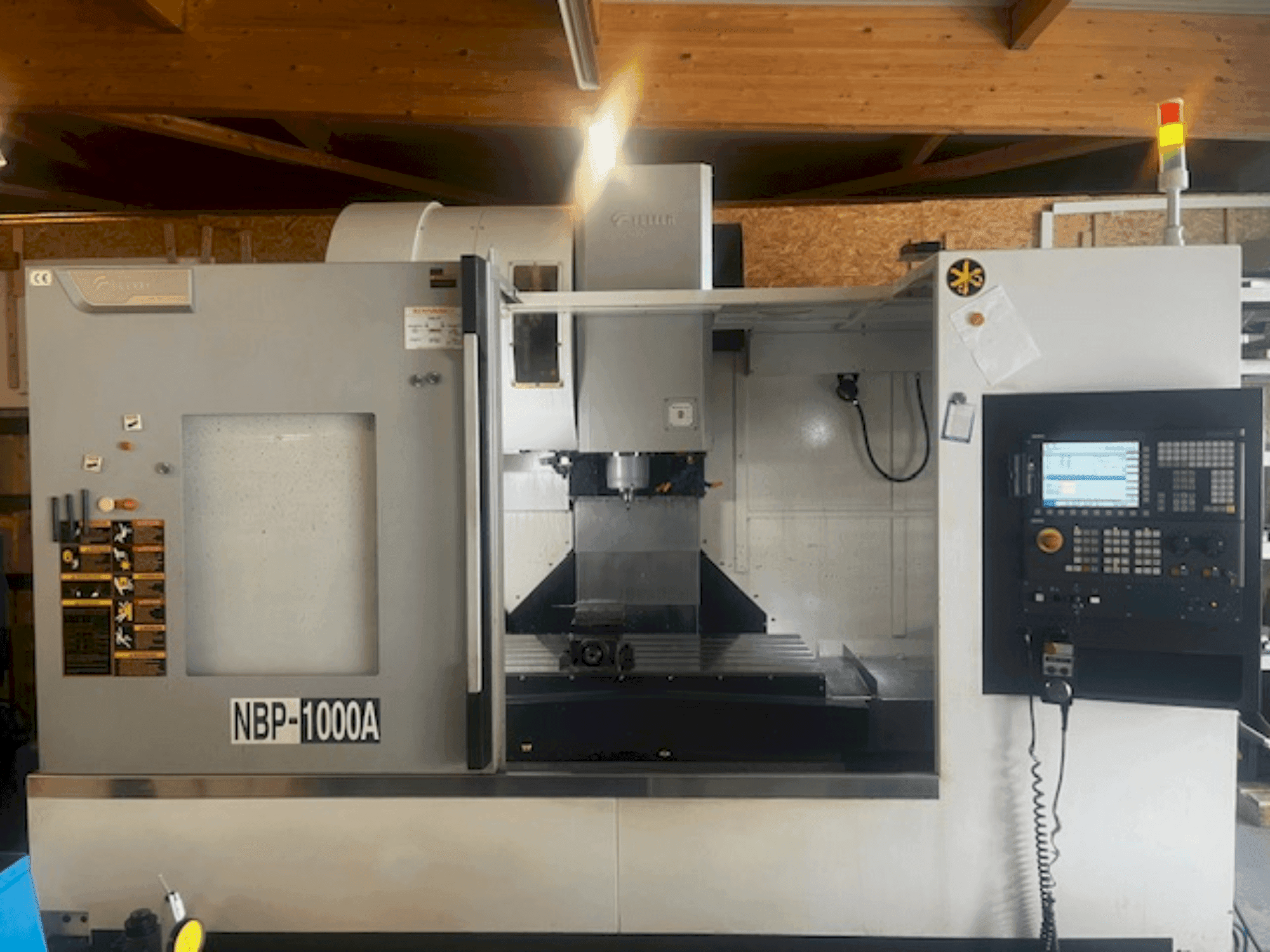

This 3-axis Feeler NBP 1000A vertical machining center was manufactured in 2016. It features a robust structure with Meehanite fine-lamella cast iron and heat-treated guideways for superior machining performance. The spindle operates at 10,000 rpm, supported by angular contact ball bearings and a temperature-controlled cooling unit. It includes a 30-station tool magazine with a double-arm changer and a Siemens Sinumerik 828D control system. Consider the opportunity to buy this Feeler NBP 1000A vertical machining center. Contact us for more information.

Overview

brand: Feeler
year: 2016
MODEL: NBP 1000A
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Feeler NBP 1000A

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 22.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 600 mm

Tools

Max weight: 8 kg
Type of tool holder: SK 40 DIN 69871

Additional Equipment

- Pump pressure: 30 bar
- Cartridge filter to protect the spindle rotary feedthrough
- Fully enclosed with large doors and maintenance access
- Prepared for oil mist extraction (Ø 200 mm)
- Flushing nozzles on both sides
- Screw/hinge belt conveyor
- Chip bucket included
- Ejector on the left, mounted on the front

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robust, heat-treated spindle (58–62 hrc)
- - Temperature-controlled cooling unit for thermal stability
- - Front bearings: 4 angular contact ball bearings (Ø 70 mm)
- - Rear bearings: 2 angular contact ball bearings (Ø 60 mm)
- - Main drive siemens 1ph8133
- - Torque: 143 nm at 40% duty cycle (up to 1500 rpm)
Qualitative Machine Benefits:
- - Comissioning was in 2018

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
