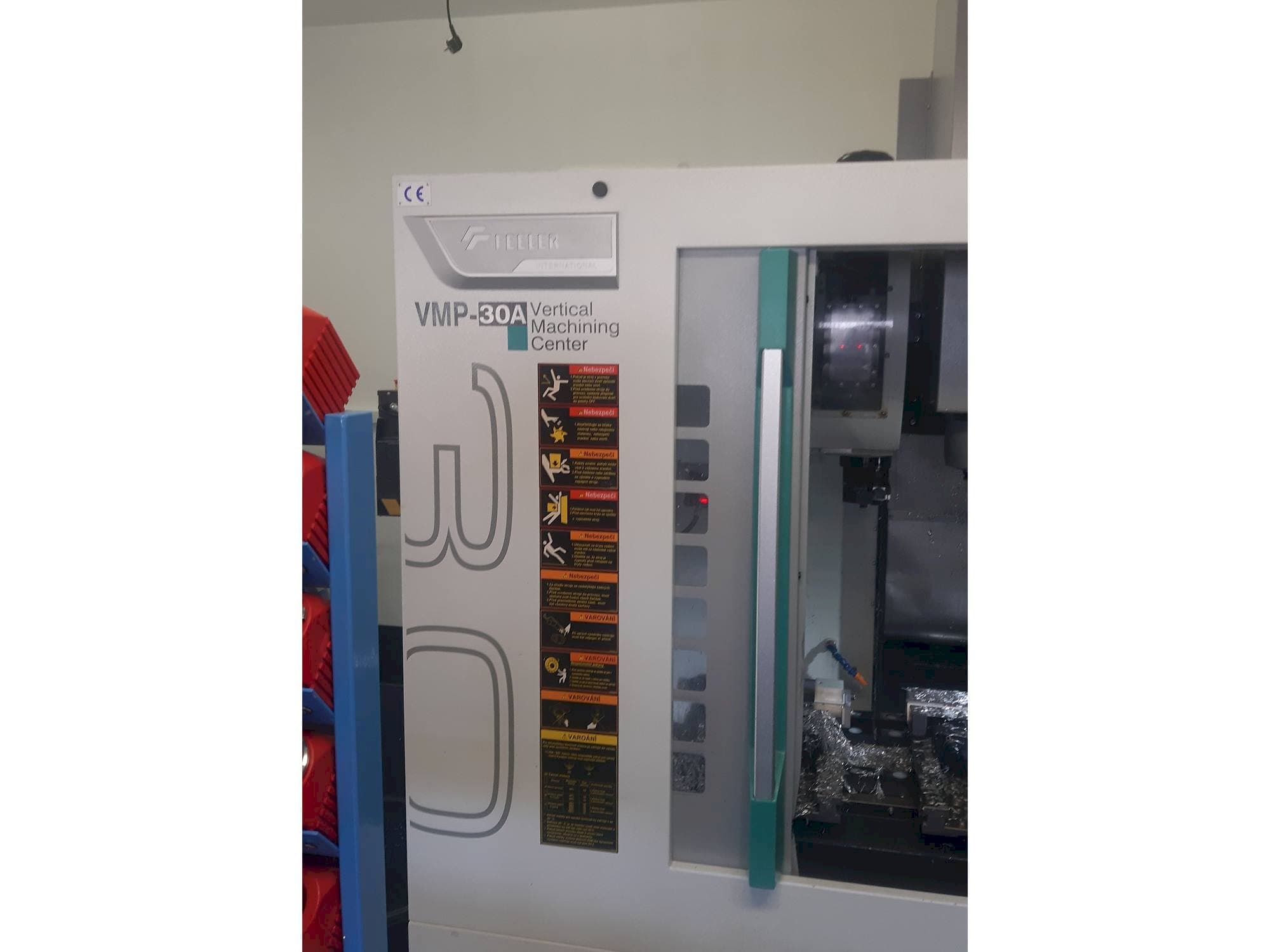

➤ Used Feeler VMP 30 - 2020 - Vertical Machining Center

Show in original language

This Feeler VMP 30 Vertical Machining center was manufactured in the year 2020 in Taiwan and has 1100 production hours. It is equipped with a Fanuc Series Oi-MF control unit and has 3 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.

Overview

brand: Feeler
year: 2020
MODEL: VMP 30A
production hours: 1100
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Feeler VMP 30A

Control Unit

Brand: FANUC
Model: Series Oi-MF

General Data

Measurements width: 2100 mm
Measurements depth: 2255 mm
Measurements height: 2370 mm
Machine weight: 3300 kg

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 890 mm
Outer width: 420 mm
Number of tslots: 4
Distance between: 100 mm

Tools

Slots in storage: 20
Max weight: 7 kg
Max tool diameter: 80/130 mm
Max tool length: 250 mm
Type of tool holder: SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose-table 80-590 mm
- - Tool change time 2 s
- - Spindle motor power (cont. /30 min. ) 7. 5/11 kw
- - Work feedrates 36 m/min.
- - Rapid feedrate 36 m/min.
- - Incl. 2 probes (tool and workpiece)
- - Incl. Set of tool holders and 2x vice
Qualitative Machine Benefits:
- - Very good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
