FIDIA K199 Vertical Machining center

Show in original language

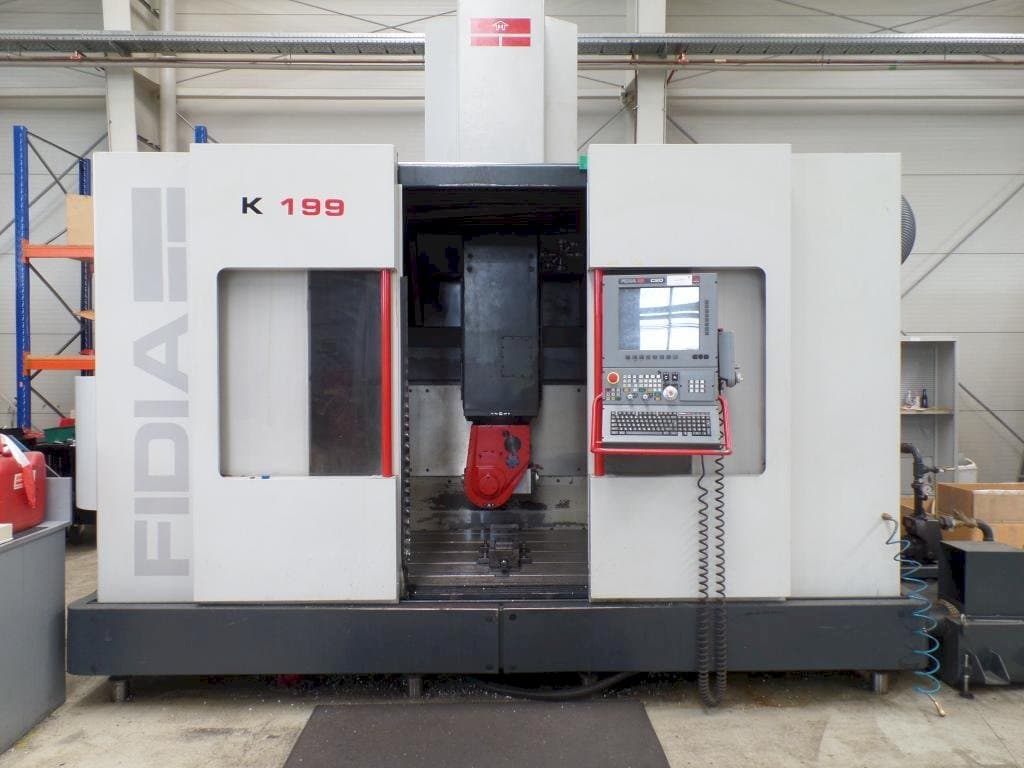

This FIDIA K199 Vertical Machining center was manufactured in the year 2004 and has 117102 production hours, of which 41478 are spindle hours. It is equipped with a Fidia C20 PCD 0672 control unit and has 5 axis. The machine has a spindle speed of 240-24000 rpm.

Overview

brand: Fidia
year: 2004
MODEL: K199
production hours: 117102
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FIDIA

Technical Information - Fidia K199

Control Unit

Model: C20 PCD 0672
Brand: FIDIA

Main drive

Spindle speed range: 240-24000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 900 mm
Z-AXIS Movement: 850 mm
A_(Working_length) Movement: +95/-110° MM
C_(Stroke) Movement: +/- 200° MM

Table

Outer length: 2000 mm
Outer width: 1250 mm
Table load: 12000 kg

Tools

Max weight: 8 kg
Max tool diameter: 100/75 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse rate: 30 m/min
- - Inner diameter in front bearing: 70 mm
- - Outer diameter of the spindle: 210 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
