GEKA ALFA 500/150

Photo Gallery

GEKA - ALFA 500/150IE-PUN-GEK-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

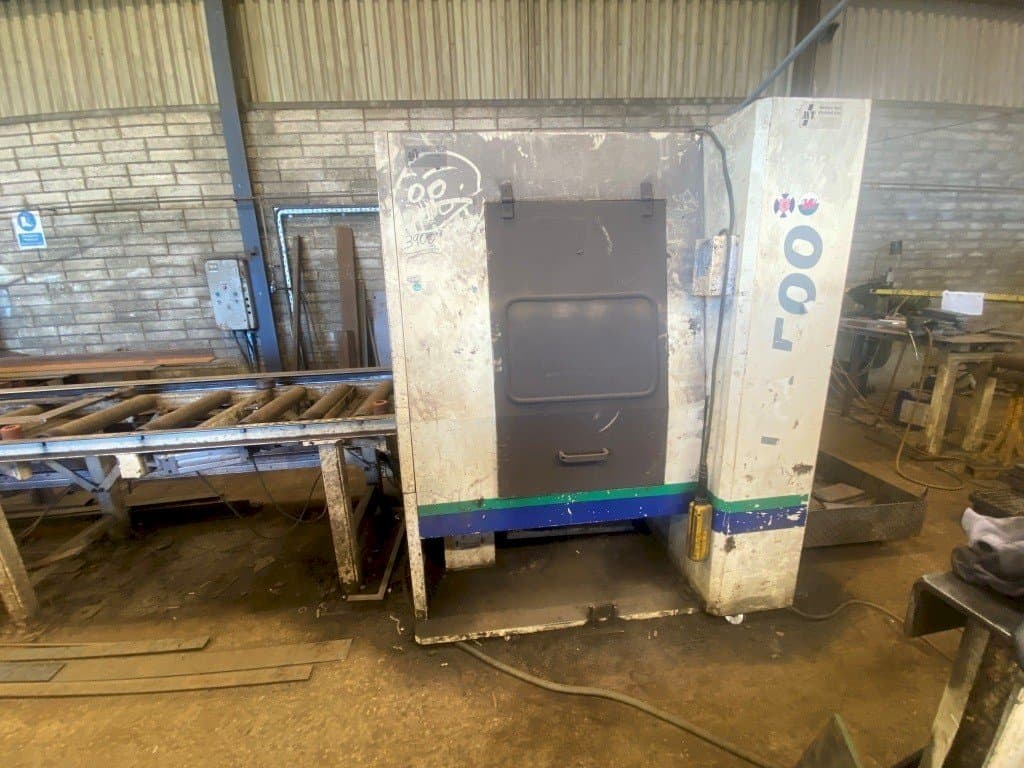

GEKA ALFA 500/150 Punching machine

Show in original language

This GEKA ALFA 500/150 Punching machine was manufactured in the year 2005 in Spain. It is equipped with a Fagor control unit. The machine has a punching force of 1100 kN, and includes a 8.5m Infeed Conveyor, 6m Measuring System, Light Guards and Selection of Punches & Dies as additional equipment.

Overview

brand: GEKA
year: 2005
MODEL: ALFA 500/150
application type: Shearing
Location: Ireland
machine type: Hydraulic Shearing Machine
control unit brand: FAGOR

Technical Information - GEKA ALFA 500/150

General Data

Measurements width: 12000 mm
Measurements depth: 3000 mm
Measurements height: 2000 mm

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: FAGOR

Main drive

Punching force: 1100 kN
Maximum sheet thickness: 20 mm

Workpiece

Workpiece x: 500 mm
Workpiece y: 6000 mm

Tools

Number of stations: 4

Max Material thickness

Steel: 20 mm

Media

Main electronic connection: 400 V

Additional Information

Additional equipment

8.5m Infeed Conveyor
6m Measuring System
Light Guards
Selection of Punches & Dies

Machine Benefits

Technical Machine Benefits

Flat bar size (min. ): 50x5 mm
Flat bar size (max. ): 500x20 mm
Horizontal-wing punches: 3
Maximum diameter: 40 mm
Vertical wing punches: 1
Maximum diameter: 31 mm
Vertical punching force: 600 kn
Angle processing (min. Size): 40x40x4 mm
Angle processing (max. Size): 150x150x15 mm

Machine History

End product

Structural steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
