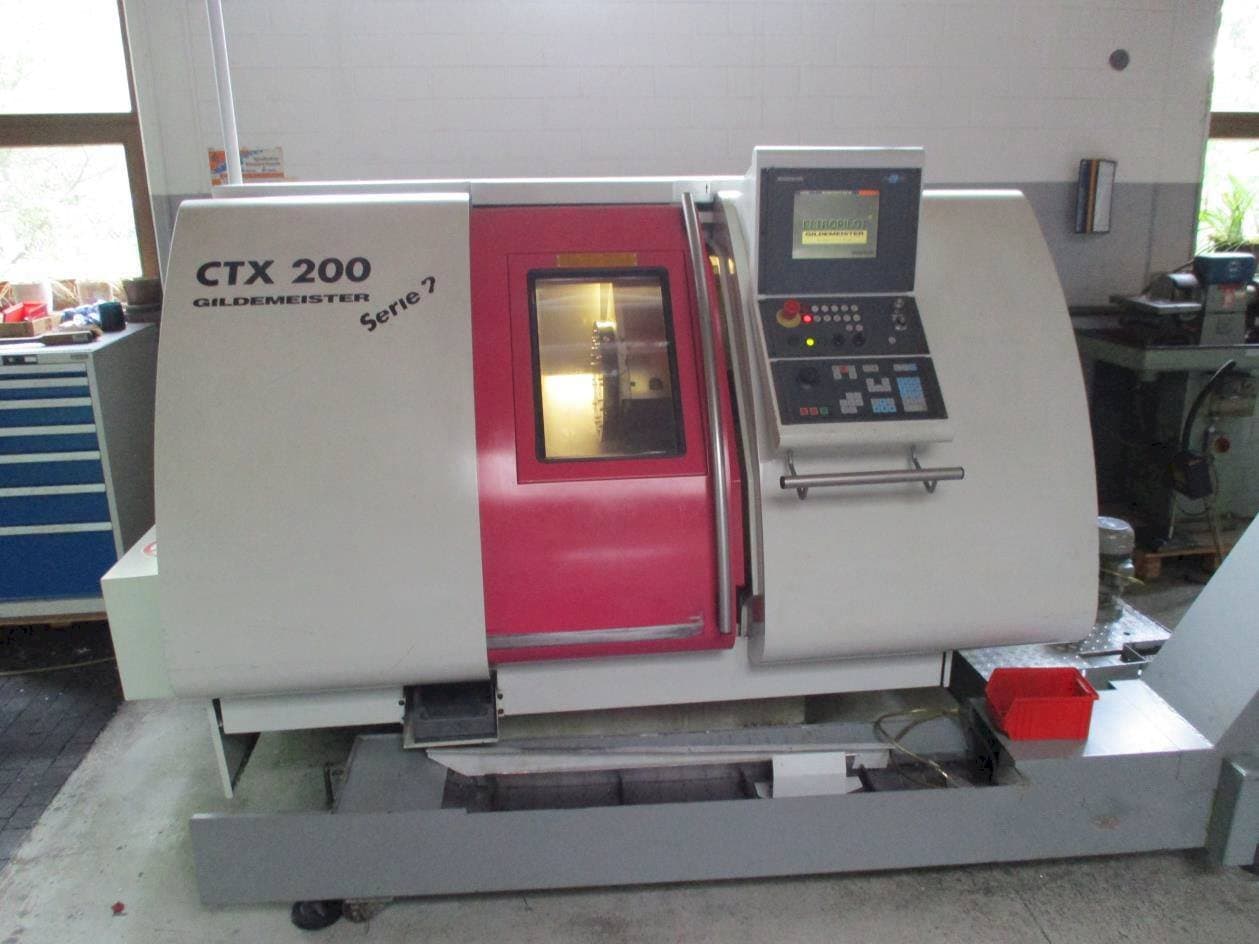

Front view of Gildemeister CTX 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Gildemeister CTX 200

Photo Gallery

Gildemeister - CTX 200DE-TUR-GIL-1999-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister CTX 200 Lathe

Show in original language

This Gildemeister CTX 200 Lathe was manufactured in the year 1999 in Germany and has 22754 production hours. It is equipped with a HEIDENHAIN CNC Pilot 3190 control unit. The machine has a spindle speed of 25-5000 rpm.

Overview

brand: Gildemeister
year: 1999
MODEL: CTX 200
production hours: 22754
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 200

Control Unit

Model: CNC Pilot 3190
Brand: HEIDENHAIN

Main drive

Spindle speed range: 25-5000 1/MIN
Spindle motor power: 7,5 kW

Movement

X-AXIS Movement: 160 mm
Z-AXIS Movement: 350 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 1x berg three-jaw chuck Ø140
- - Turning diameter above support: 210 mm
- - Turning diameter over bed: 440 mm
- - Spindle diam. Front bearing: 85 mm
- - Spindle bore diameter: 56 mm hollow chip removal direction
- - Torque: 58 nm
- - C-axis speed: 28 rpm
- - Revolver: universal disk turret with driven tools
- - Tool holder straight shank: vdi 20
- - Tailstock diameter in the front area: 80 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
