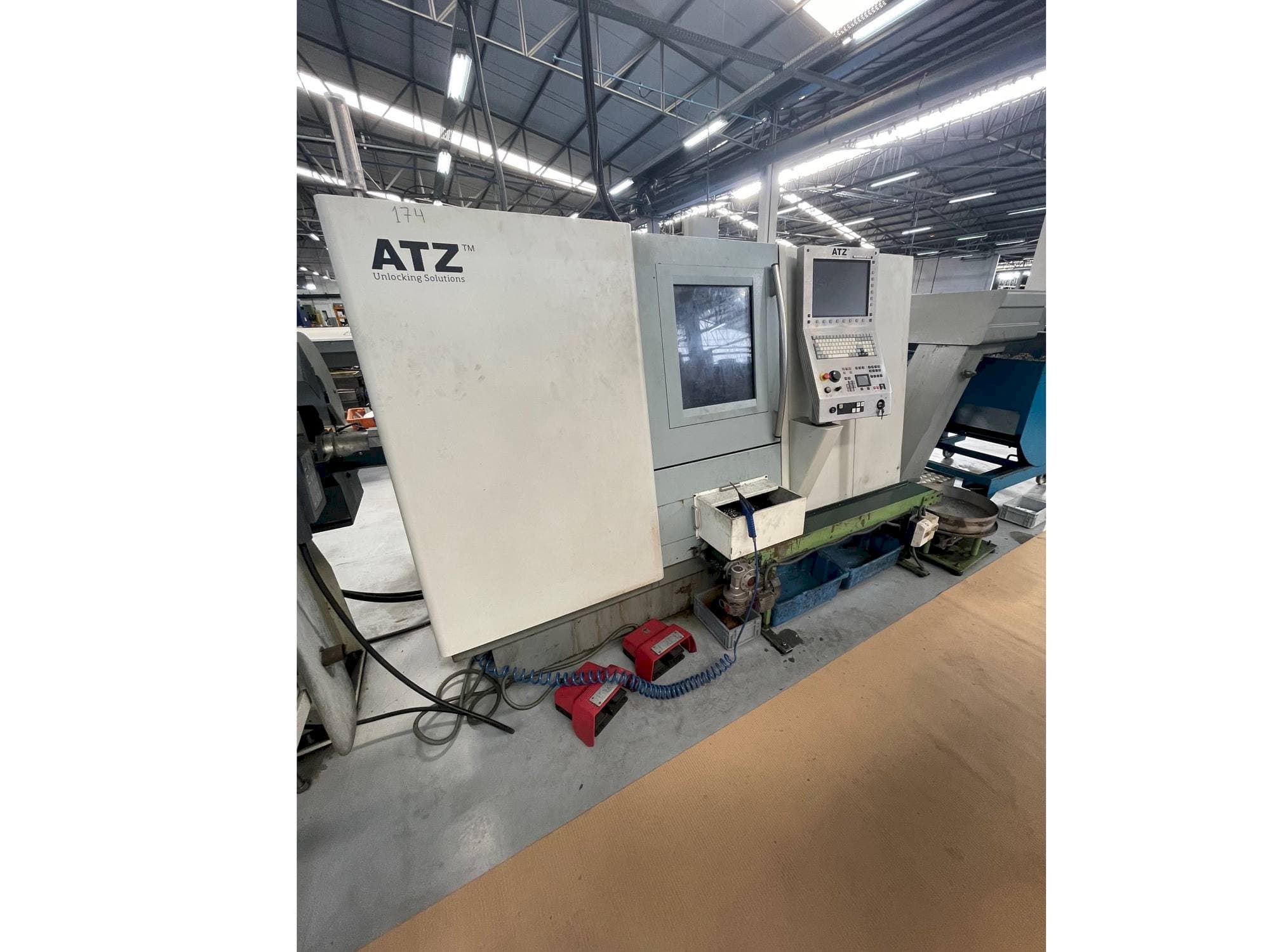

Gildemeister CTX 310 V6 lathe

Show in original language

This Gildemeister CTX 310 V6 lathe was built in 2006 in Italy. It is controlled by a Heidenhain PLUS IT control unit and has 4 axis. The machine has a main and a sub-spindle speed of 6000 rpm and is in perfect condition.

Overview

brand: Gildemeister
year: 2006
MODEL: CTX 310 V6
application type: Turning
Location: Portugal
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 310 V6

General Data

Machine weight: 3950 kg

Control Unit

Model: PLUS IT
Brand: HEIDENHAIN

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 12 kW
Number of axis: 4

Movement

X-AXIS Movement: 140 mm
X-AXIS Feed Force: 4,5 kN
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 80 (+/- 40) mm
Y-AXIS Feed Force: 9,0 kN
Y-AXIS Rapid traverse: 12 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Feed Force: 4,5 kN
Z-AXIS Rapid traverse: 30 m/min
C-AXIS Movement: 360° MM
C-AXIS Rapid traverse: 100 / 2: 200 min/-1

Tools

Number of stations: 12
Type of tool holder: VDI 30

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter max. 246 mm
- - Turning length max. 445 mm
- - Distance between spindles 665 mm
- - Center height 365 mm
- - Greatest pass round over bed 500 mm
- - Swing dia. Over traverse guideway 375 mm
- - Standard turning dia. 170 - 210 mm
- - Max. Torque 115 nm - c-axis 0,001 °
- - Spindle bearing diameter 100 mm - spindle bore 73 mm
- - Max. Usable bar diameter 50 mm
Qualitative Machine Benefits:
- - Max. Speed sub spindle 6. 000 min/-1, power capacity - sub spindle 7,5 kw, max. Torque 48 nm
- - Subspindle z2 440 mm
- - Tool shank 20 x 20 mm
- - Max. Speed driven tool stations 4. 000 min/-1, power capacity - driven tool-stations 3,3 kw, max. Torque 16 nm
- - Rapid traverse sub spindle z2 30 m/min
- - Feeding force sub spindle z2 4,0 kn, total power requirement 32 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
